| Product name | Model | Material | Specification | Code |
|---|---|---|---|---|

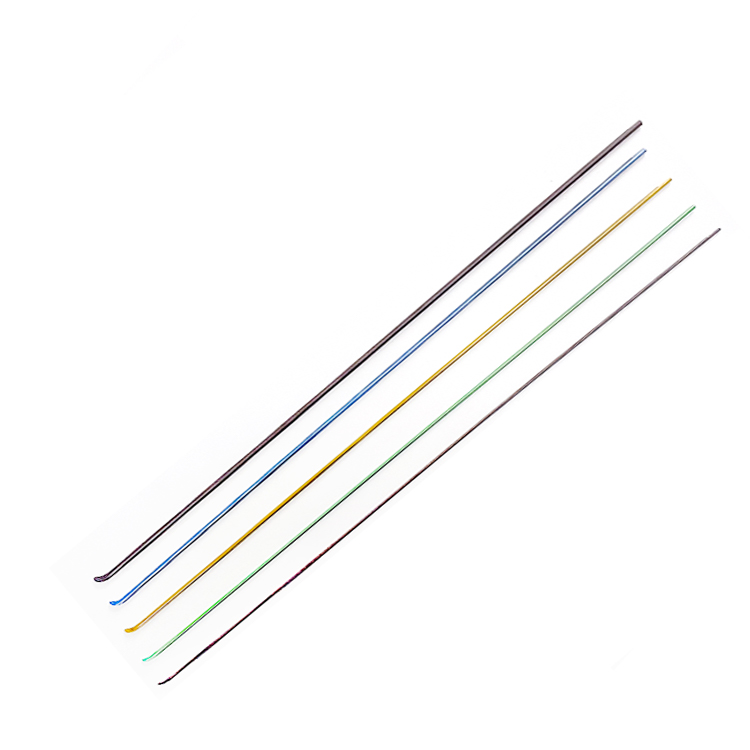

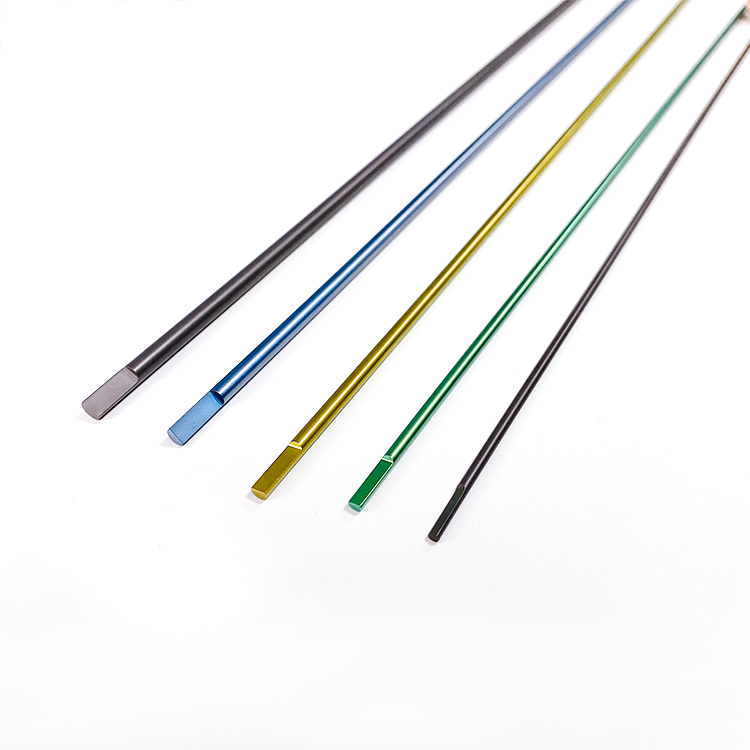

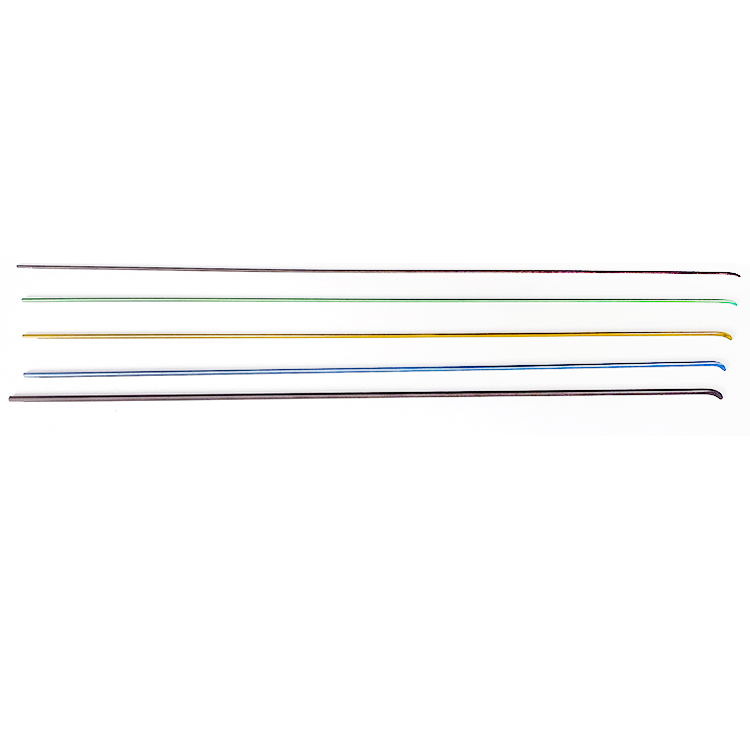

| Elastic Nail Intramedullary Nail | SNXS | Titanium Alloy | 2.5×440 | 15902940 |
| Product name | Model | Specification | Material | Code |
|---|---|---|---|---|
| Proximal Femoral Nail Antirotation Intramedullary Nail | SGM-IIK | 9.0×170×130° | Titanium Alloy | 15649170 |
| Proximal Femoral Nail Antirotation Intramedullary Nail | SGM-IIK | 9.0×200×130° | Titanium Alloy | 15649200 |
| Proximal Femoral Nail Antirotation Intramedullary Nail | SGM-IIK | 9.0×240×130° | Titanium Alloy | 15649240 |
| Proximal Femoral Nail Antirotation End Cap | SGM-IIK | 10×15 | Titanium Alloy | 15601115 |
| Proximal Femoral Nail Antirotation End Cap | SGM-IIK | 10×20 | Titanium Alloy | 15601120 |
| Proximal Femoral Nail Antirotation Blade | SGM-IIK | 10.5×70 | Titanium Alloy | 15600570 |
| Proximal Femoral Nail Antirotation Blade | SGM-IIK | 10.5×80 | Titanium Alloy | 15600580 |
| Proximal Femoral Nail Antirotation φ4.9 locking screw | SGM-IIK | 4.9×30--72 | Titanium Alloy | 15604930 |
| Femoral Nail locking screw I | SGG-IIIK | 6.5×75 | Titanium Alloy | 15246575 |
| Femoral Nail Intramedullary Nail | SGG-IIIK | 9.0-13.0 | Titanium Alloy | 15249340 |
| Humeral nail Intramedullary Nail | SHG-IK | 8 | Titanium Alloy | 15728160 |
1. 1.0m radian radius: The length is consistent with the anatomy of the FEMORAL medullary cavity.
2. Screw-in-screw design: To further improve the fixation strength of osteoporosis. The Blunt End Design of the locking screw reduces the risk of excessive penetration.
3. Comprehensive sizing: Short nail (diameter 8.0/9.5mm, length 160mm); Long nail (diameter 7.0/8.5mm, length 180-315mm). All nails have left and right types, titanium alloy material. Simple operation and minimally invasive implantation.
Proximal fixation: Multi-plane and Multi-locking screw fixation options. Screw-in-screw design to further improve the fixation strength of osteoporosis. Blunt head design reduces risk of excessive penetration.
Distal fixation: Short screw: two different plane holes for locking. Long screw: three locking holes avoid important blood vessels. Two anterior and posterior locking holes facilitate manual operation, minimizing rotation and displacement.

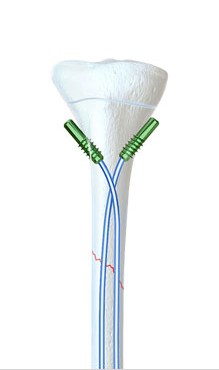

Elastic Nail: Nail diameter should be 30-40% of the narrowest transverse diameter of medullary cavity. Apply to: 3mm (6-8 years), 3.5mm (9-11 years), 4.0mm (12-14 years).
Compression: Special design of compression holes increases stability of transverse or short oblique fractures. Self-sustaining compression mechanism, no static screw needed.
TFNA System: Radian radius of 1.0m, distal location in the center of medullary cavity is twice as likely as G3 systems (1.5m radius).
