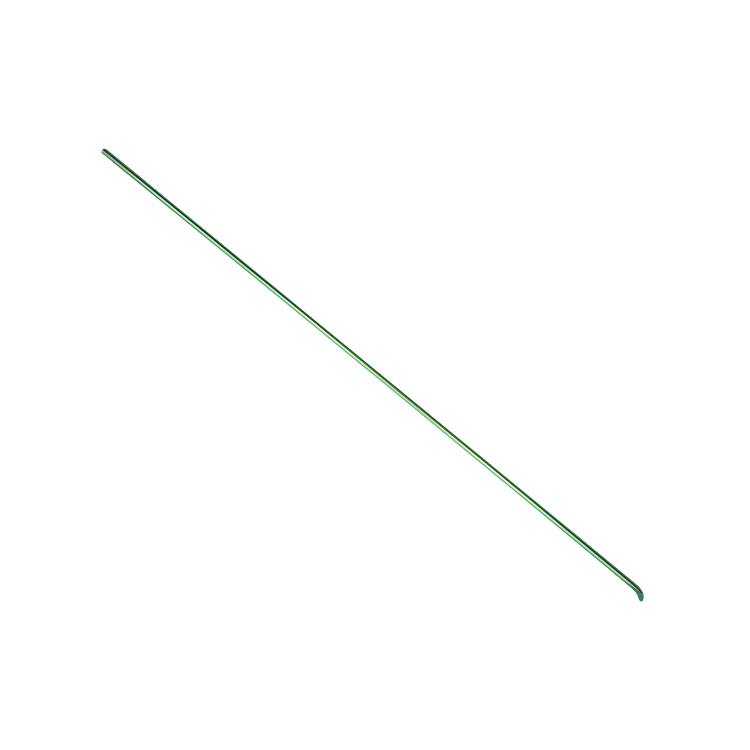

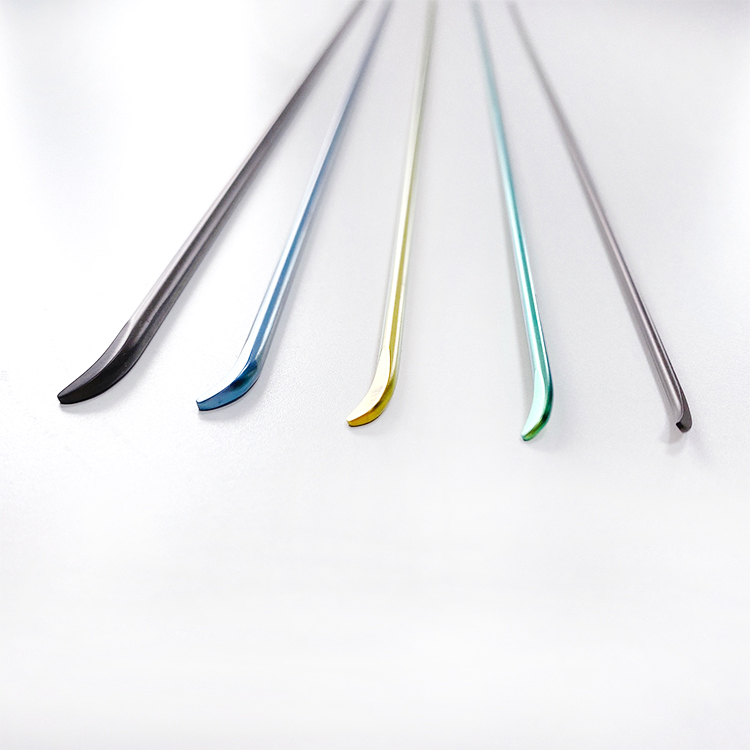

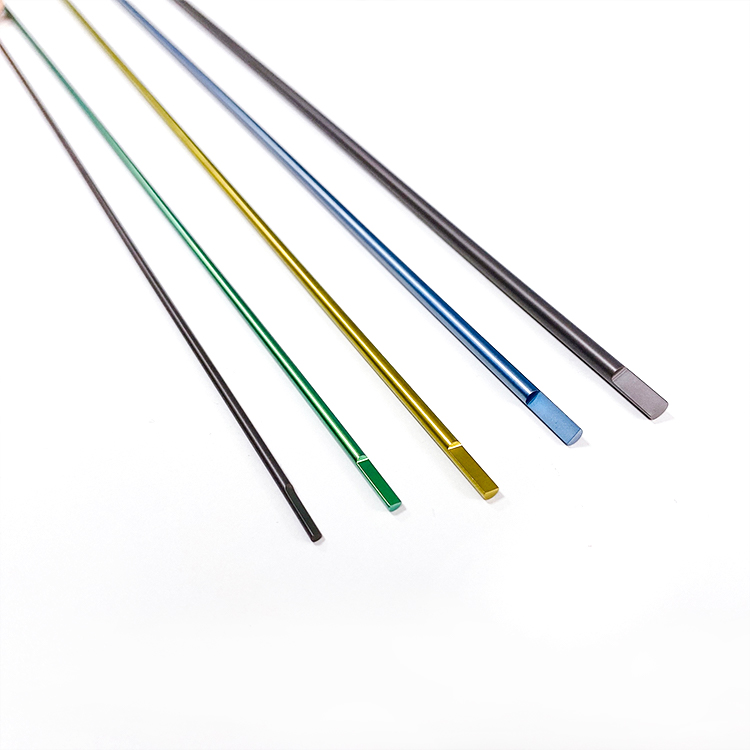

Orthopedic Elastic Intramedullary Nail Implant Elastic Nail Orthopedic for Child Trauma Hospital Use

Product Description

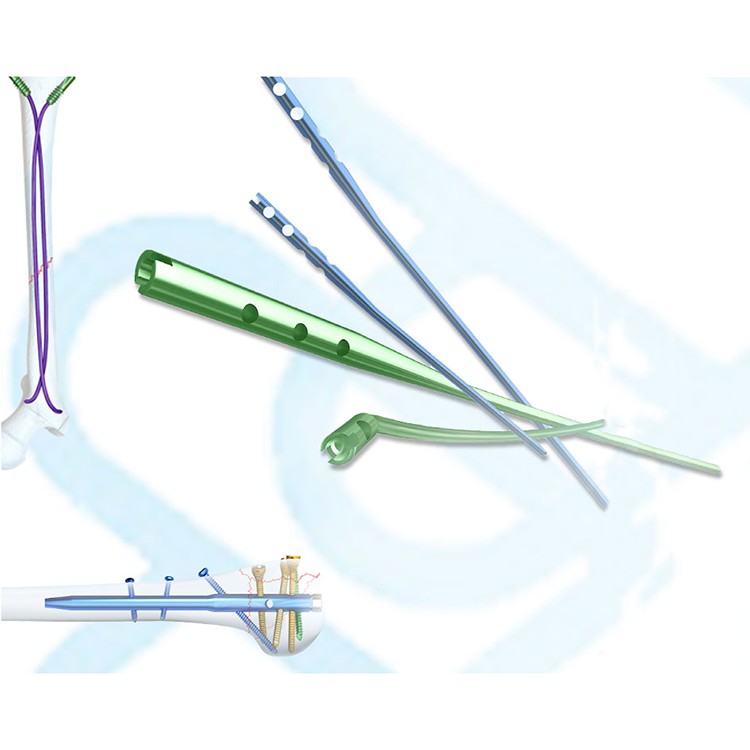

Orthopedic Nail Display
Products Description

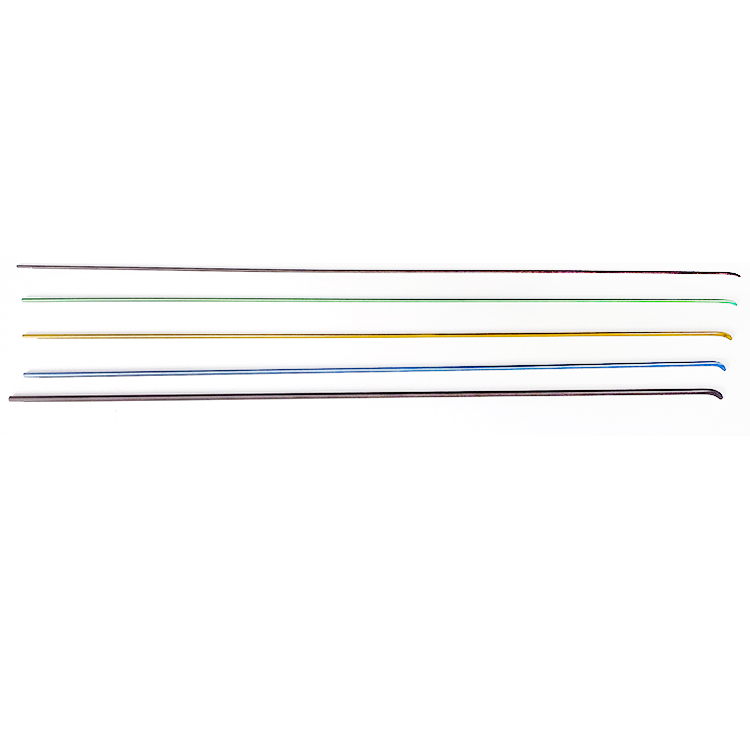

Product View
Product name Model Material Specification Code
Elastic Nail Intramedullary Nail SNXS Titanium Alloy 2.5×440 15902940
Intramedullary nail All kinds of high quality intramedullary nails. Easy to insert and take out; Titanium alloy material; Reduce the risk of outer wall impact and main nail inward movement; The diameter is suitable for all applications; Simple operation and minimally invasive implantation.
Product name Model Specification Material Code
Proximal Femoral Nail Antirotation Intramedullary NailSGM-IIK9.0×170×130°Titanium Alloy15649170
Proximal Femoral Nail Antirotation Intramedullary NailSGM-IIK9.0×200×130°Titanium Alloy15649200
Proximal Femoral Nail Antirotation Intramedullary NailSGM-IIK9.0×240×130°Titanium Alloy15649240
Proximal Femoral Nail Antirotation End CapSGM-IIK10×15Titanium Alloy15601115
Proximal Femoral Nail Antirotation End CapSGM-IIK10×20Titanium Alloy15601120
Proximal Femoral Nail Antirotation BladeSGM-IIK10.5×70Titanium Alloy15600570
Proximal Femoral Nail Antirotation BladeSGM-IIK10.5×80Titanium Alloy15600580
Proximal Femoral Nail Antirotation φ4.9 locking screwSGM-IIK4.9×30--72Titanium Alloy15604930
Femoral Nail locking screw ISGG-IIIK6.5×75Titanium Alloy15246575
Femoral Nail Intramedullary NailSGG-IIIK9.0-13.0Titanium Alloy15249340
Humeral nail Intramedullary NailSHG-IK8Titanium Alloy15728160
Our Advantages
Advantage 1
Advantage 2
11.0mradian radius

The length is consistent with the anatomy of the FEM ORAL medullary cavity.

Radius Design
2Screw-in-screw design

To further improve the fixation strength of osteoporosis. The Blunt End Design of the locking screw reduces the risk of excessive penetration.

Screw Design
3Application Variety

Short nail: diameter of 8.0/ 9.5mm, length of 160mm. Long nail: diameter of 7.0/ 8.5mm, length of 180-315mm (15mm interval). All nails have left and right type, titanium alloy material. The diameter is suitable for all applications. Simple operation and minimally invasive implantation.

Detailed Features
Proximal Fixation
Proximal fixation:
Multi-plane and Multi-locking screw fixation options, multiple options for operation, to achieve optimal fixation stability. Screw-in-screw design to further improve the fixation strength of osteoporosis. Blunt head of locking screw design to reduce the risk of excessive penetration. Locking screw countersinking design to reduce soft tissue irritation.
Distal Fixation
Distal fixation:
Short screw: two different plane holes for locking. Long screw: three locking holes avoid important blood vessels, located in the safe area between the median nerve and the radial nerve. Two anterior and posterior locking holes facilitate the manual operation, minimizing the occurrence of rotation and displacement of distal fracture.

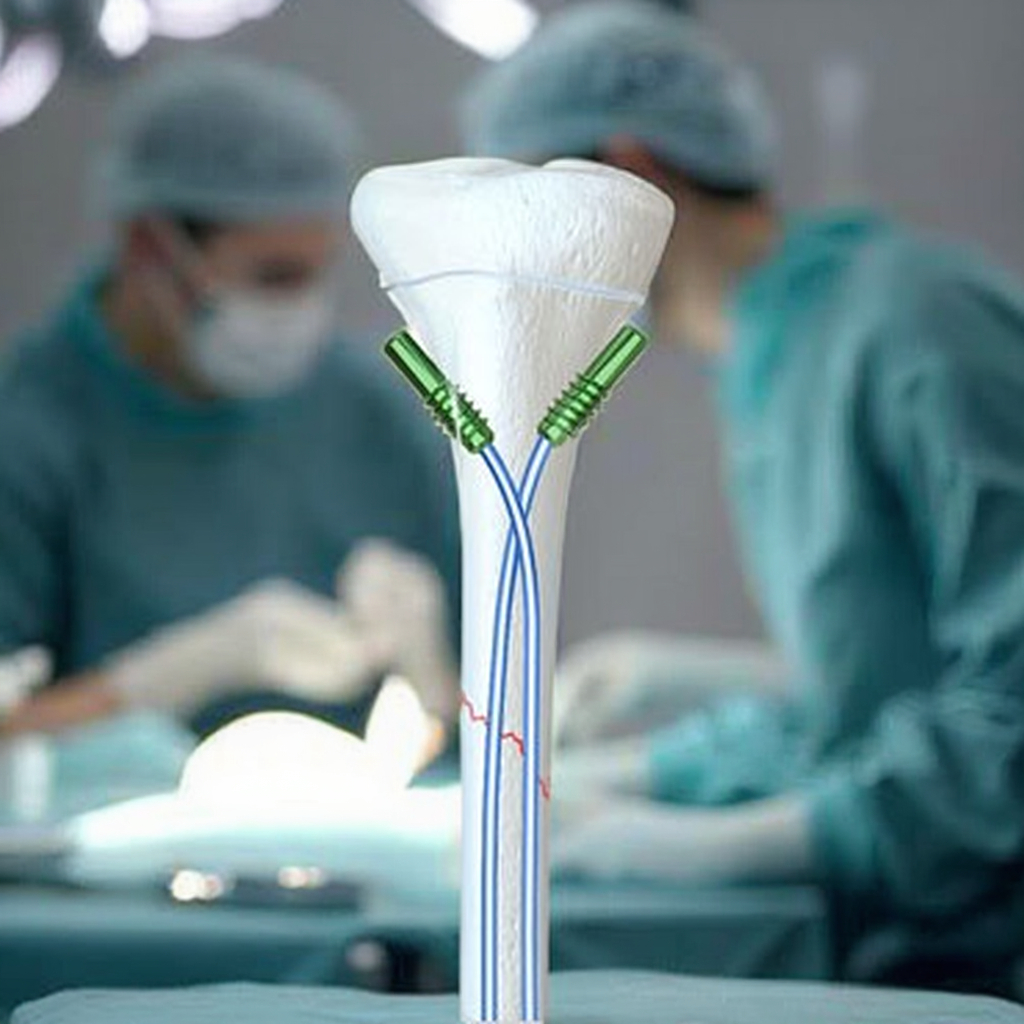

Elastic Nail
Elastic Nail:
Nail diameter should be 30-40% of the narrowest transverse diameter of medullary cavity. Apply to 3mm / 6-8 years old; 3.5mm / 9-11 years old; 4.0mm / 12-14 years old.
Compression
Compression:
Special design of compression holes helps to increase the stability of transverse or short oblique fractures. Self-sustaining compression mechanism, no static screw is needed to maintain compression during operation.
TFNA System
TFNA System:
Compared with G3 with radian radius of 1.5m, the distal location of TFNA with radian radius of 1.0m in the center of medullary cavity is twice as likely as that of G3.
Final Product Details
Company Profile
Factory Facility 1
Factory Facility 2
We are a leading orthopedic medical device R & D, manufacturing and operation enterprise in China. We focus on the development, manufacturing and sales of orthopedic trauma, spine and bone joint implants and devices. With first-class production equipment, professional R & D, technology and manufacturing team, quality management system in line with international standards and efficient marketing service strategy, we have won the affirmation of many partners. Our team has making unique achievements in the field of orthopedic medical devices. We adhere to the development concept of technological innovation, product innovation and service innovation.
Workshop
Quality Control
Why Choose Us
Certificate and Quality
Frequently Asked Questions
Q1: Would you please give some information on shipping mode and charges?
A: Normally we send through courier like DHL, FEDEX, UPS, TNT etc or post upon request from clients.
Q2: Do you have ISO9001, ISO 13485, CE approvals?
A: Yes, our production and quality management systems are in line with international standards. Normally we send through courier like DHL, FEDEX, UPS, TNT etc or post upon request from clients.
Q3: What is the minimum order that we can place? Do you provide free samples?
A: We expect your minimum orders to be at least US$500. However, we understand that customers need to place smaller sample orders in the beginning. We could offer free samples, but do not pay the cost of freight.
Q4: Can I buy products not shown but similar to your catalogue?
A: Of course you can, just send us pictures or samples. But this takes a little longer time for delivery.
Q5: Do you have stock for listed products, or they are newly produced? What are your terms of payment?
A: Generally, we have stock for every listed product, produced monthly. However, it depends on sales conditions. Payment <= 800USD, 100% in advance. Payment > 800USD, 30% T/T in advance, balance before shipment. Methods include L/C, T/T, Western Union, PayPal etc.
