| Product name | Model | Material | Specification | Code |
|---|---|---|---|---|

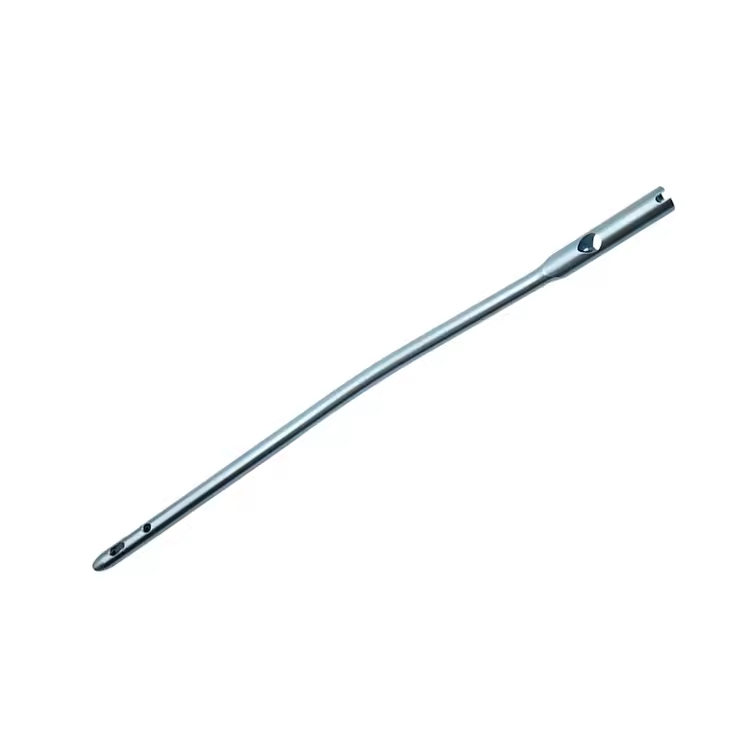

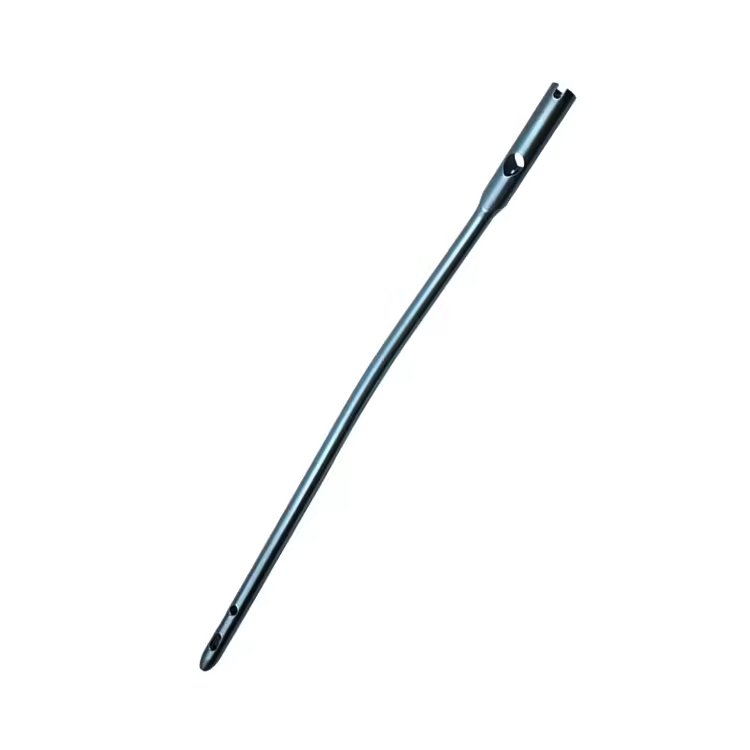

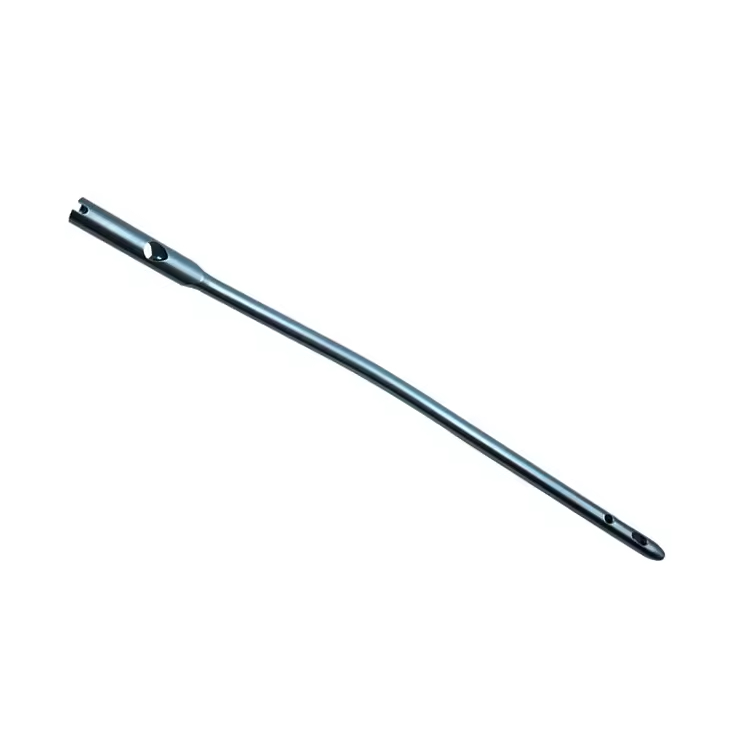

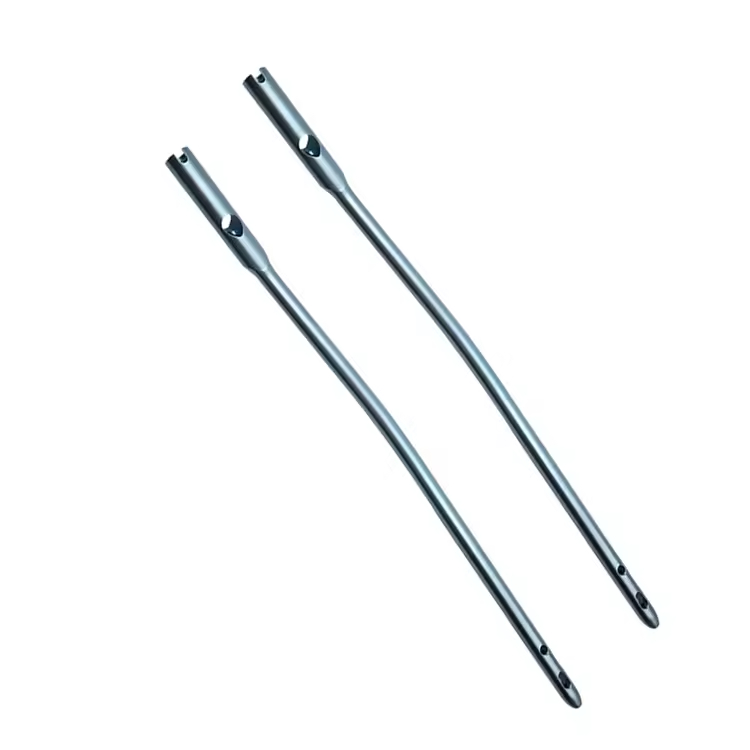

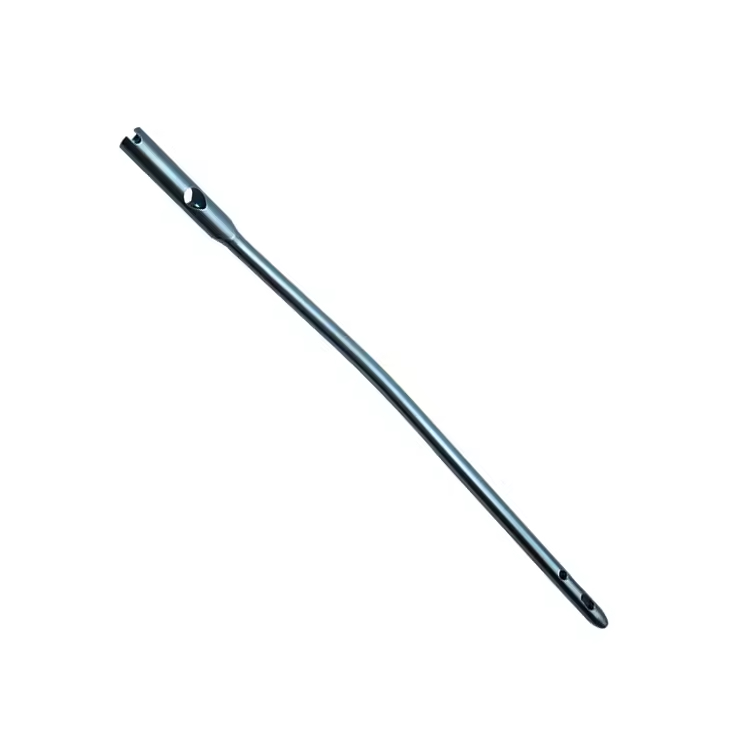

| Proximal Femoral Nail Antirotation Intramedullary Nail (non sterilization) | SGM-IIK | Titanium Alloy | 11.0×420×130° Left | 15641420 |
Intramedullary Nail: All kinds of high quality intramedullary nails. Easy to insert and take out; Titanium alloy material; Reduce the risk of outer wall impact and main nail inward movement; The diameter is suitable for all applications; Simple operation and minimally invasive implantation.
| Product name | Model | Specification | Material | Code |
|---|---|---|---|---|
| Proximal Femoral Nail Antirotation Intramedullary Nail | SGM-IIK | 9.0×170×130° | Titanium Alloy | 15649170 |
| Proximal Femoral Nail Antirotation Intramedullary Nail | SGM-IIK | 9.0×200×130° | Titanium Alloy | 15649200 |
| Proximal Femoral Nail Antirotation Intramedullary Nail | SGM-IIK | 9.0×240×130° | Titanium Alloy | 15649240 |
| Proximal Femoral Nail Antirotation End Cap | SGM-IIK | 10×15 | Titanium Alloy | 15601115 |
| Proximal Femoral Nail Antirotation End Cap | SGM-IIK | 10×20 | Titanium Alloy | 15601120 |
| Proximal Femoral Nail Antirotation Blade | SGM-IIK | 10.5×70 | Titanium Alloy | 15600570 |
| Proximal Femoral Nail Antirotation Blade | SGM-IIK | 10.5×80 | Titanium Alloy | 15600580 |
| Proximal Femoral Nail Antirotation φ4.9 locking screw | SGM-IIK | 4.9×30--72 | Titanium Alloy | 15604930 |
| Femoral Nail locking screw I | SGG-IIIK | 6.5×75 | Titanium Alloy | 15246575 |
| Femoral Nail Intramedullary Nail | SGG-IIIK | 9.0-13.0 | Titanium Alloy | 15249340 |
| Humeral nail Intramedullary Nail | SHG-IK | 8 | Titanium Alloy | 15728160 |
1. 1.0m radian radius: The length is consistent with the anatomy of the FEM ORAL medullary cavity.
2. Screw-in-screw design: To further improve the fixation strength of osteoporosis. The Blunt End Design of the locking screw reduces the risk of excessive penetration.
3. Multiple Sizing Options: Short nail (8.0/9.5mm, 160mm length) and Long nail (7.0/8.5mm, 180-315mm length). Titanium alloy material suitable for all applications with minimally invasive implantation.
Proximal fixation: Multi-plane and Multi-locking screw options for optimal stability. Screw-in-screw design improves osteoporosis fixation. Blunt head reduces penetration risk.
Distal fixation: Short screw offers two plane holes; Long screw includes three locking holes avoiding vital vessels. Anterior and posterior holes minimize rotation.
Elastic Nail: Diameter should be 30-40% of medullary cavity width. Available in 3mm (6-8 years), 3.5mm (9-11 years), and 4.0mm (12-14 years).
Compression: Special compression hole design increases stability for transverse or short oblique fractures. Self-sustaining mechanism requires no static screw.
TFNA System: Compared with G3 (1.5m radius), the TFNA distal location (1.0m radius) is twice as likely to center in the medullary cavity.
