1
1.0mradian radius:The length is consistent with the anatomy of the FEM ORAL medullary cavity.
2
Screw-in-screw design:To further improve the fixation strength of osteoporosis. The Blunt End Design of the locking screw reduces the risk of excessive penetration.
3
Short & Long Nails:Short nail: diameter of 8.0/ 9.5mm, length of 160mm. Long nail: diameter of 7.0/ 8.5mm, length of 180-315mm (15mm interval). All nails have left and right type, titanium alloy material. The diameter is suitable for all applications. Simple operation and minimally invasive implantation.
Detailed Technical Features
Proximal fixation:
Multi-plane and Multi-locking screw fixation options, multiple options for operation, to achieve optimal fixation stability. Screw-in-screw design to further improve the fixation strength of osteoporosis. Blunt head of locking screw design to reduce the risk of excessive penetration. Locking screw countersinking design to reduce soft tissue irritation.
Distal fixation:
Short screw: two different plane holes for locking. Long screw: three locking holes avoid important blood vessels, located in the safe area between the median nerve and the radial nerve. Two anterior and posterior locking holes facilitate the manual operation, minimizing the occurrence of rotation and displacement of distal fracture.

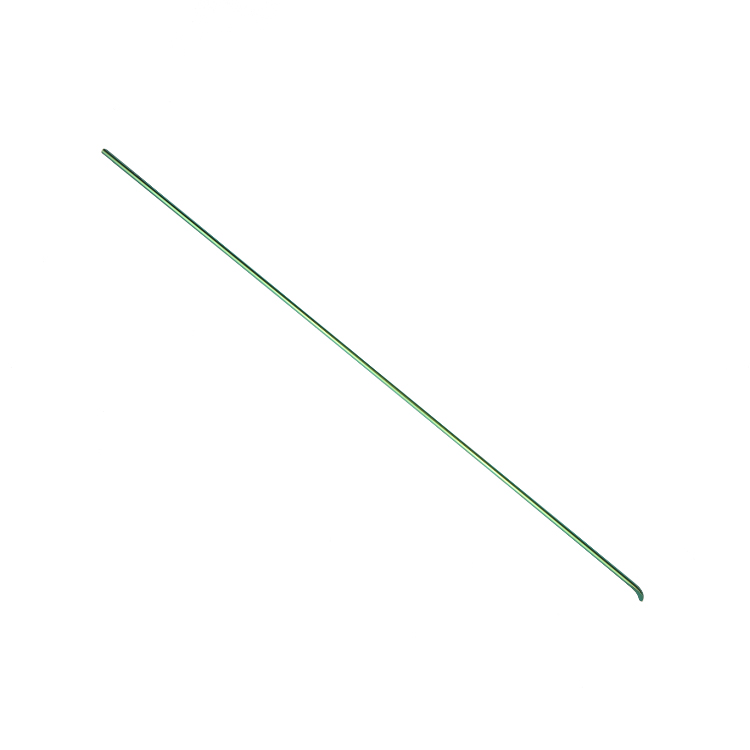

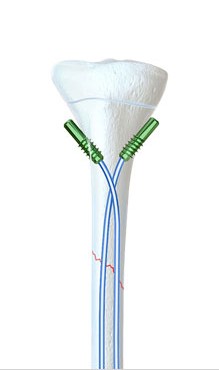

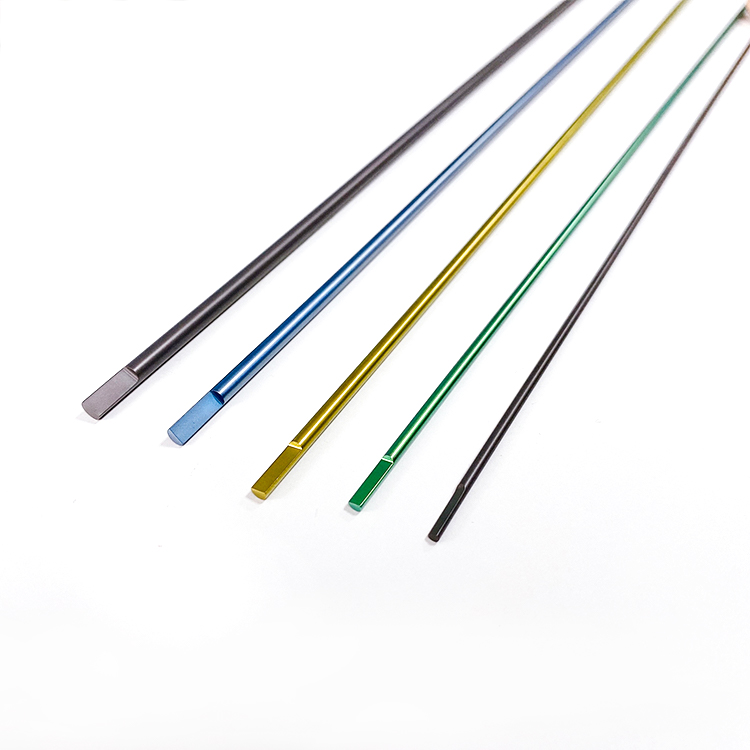

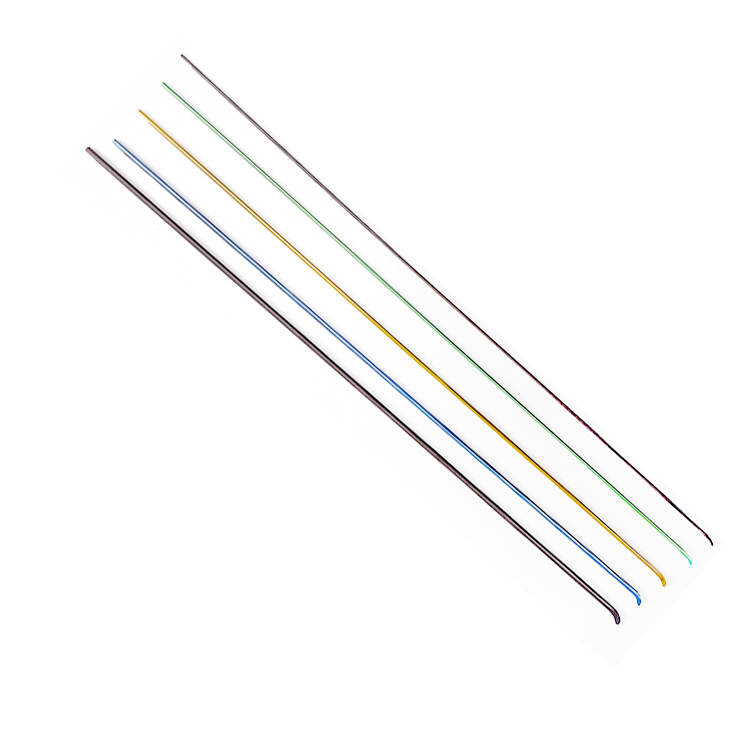

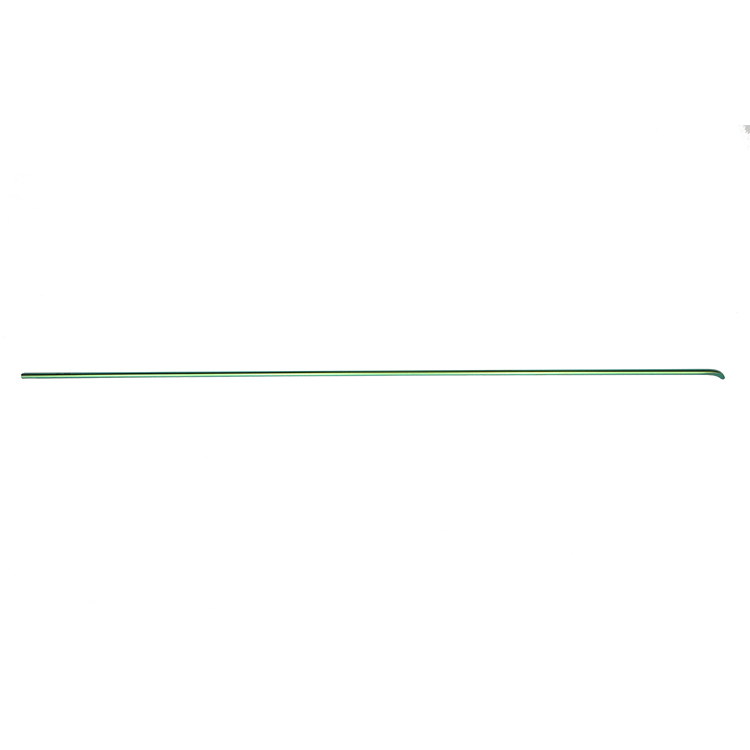

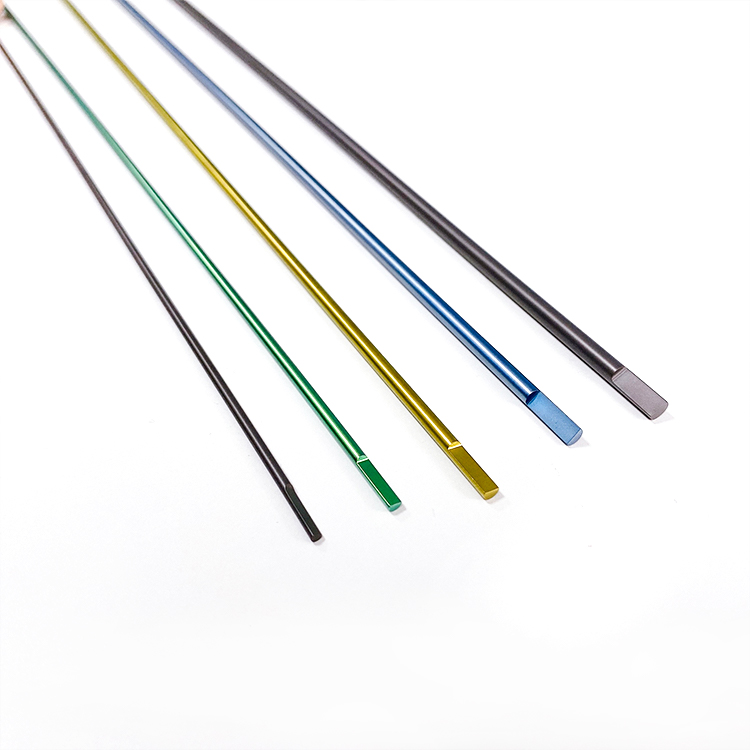

Elastic Nail:
Nail diameter should be 30-40% of the narrowest transverse diameter of medullary cavity. Apply to 3mm/ 6-8 years old; 3.5mm/ 9-11 years old; 4.0mm/ 12-14 years old.
Compression:
Special design of compression holes. helps to increase the stability of transverse or short oblique fractures. Self-sustaining compression mechanism, no static screw is needed to maintain compression during operation.

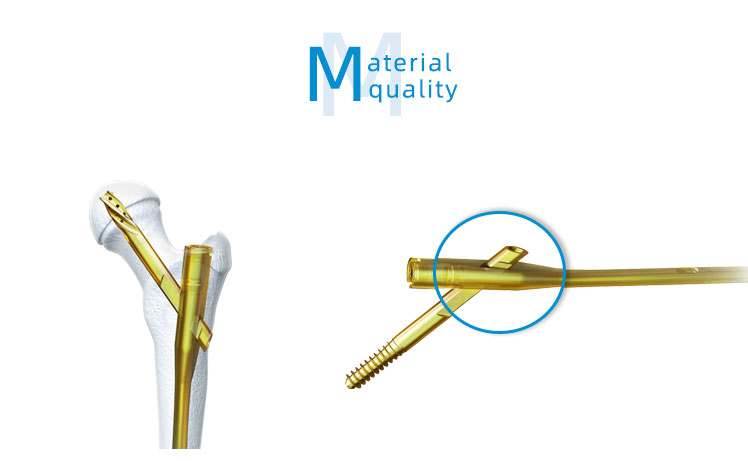

TFNA System:
Compared with G3 with radian radius of 1.5m, the distal location of TFNA with radian radius of 1.0m in the center of medullary cavity is twice as likely as that of G3.
Frequently Asked Questions (FAQ)
What are your shipping modes and typical charges?
Normally we send through courier like DHL, FEDEX, UPS, TNT etc. or post upon request from clients. Charges depend on the destination and weight.
Do you have ISO9001, ISO 13485, and CE approvals?
Yes, our products are manufactured according to international standards to ensure the highest quality for orthopedic surgery applications.
What is the minimum order quantity (MOQ)?
We expect minimum orders to be at least US$500. However, we understand that customers may need smaller sample orders initially to test the market.
Do you provide free samples?
We can offer free samples for testing, but we do not cover the cost of freight.
Can I buy products similar to your catalogue but not shown?
Yes, you can. Simply send us pictures or samples of the items you need. Note that custom orders may take a little longer for delivery.
What are your terms of payment and stock availability?
Generally, we maintain stock for listed products produced monthly. Payment terms: 100% in advance for orders under $800; for orders over $800, 30% T/T in advance and balance before shipment. We accept L/C, T/T, Western Union, and PayPal.
