Providing high-quality intramedullary nails designed for precision and durability. Key features include:
| Product Name | Model | Specification | Material | Code |
|---|---|---|---|---|

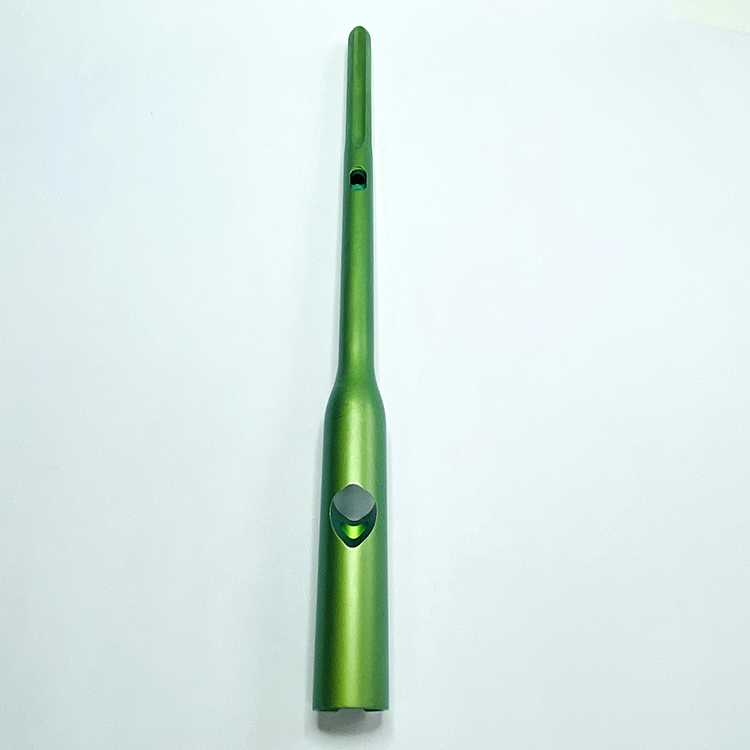

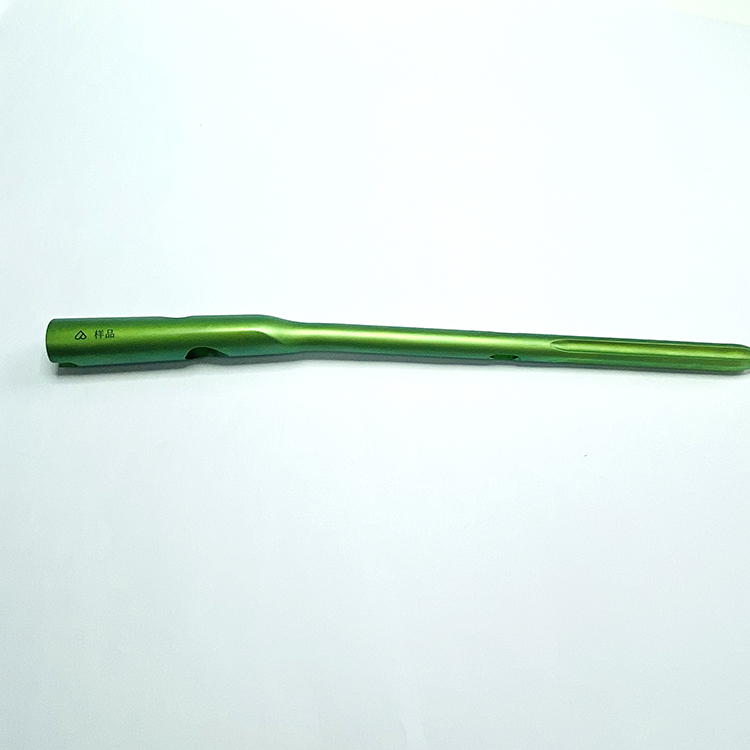

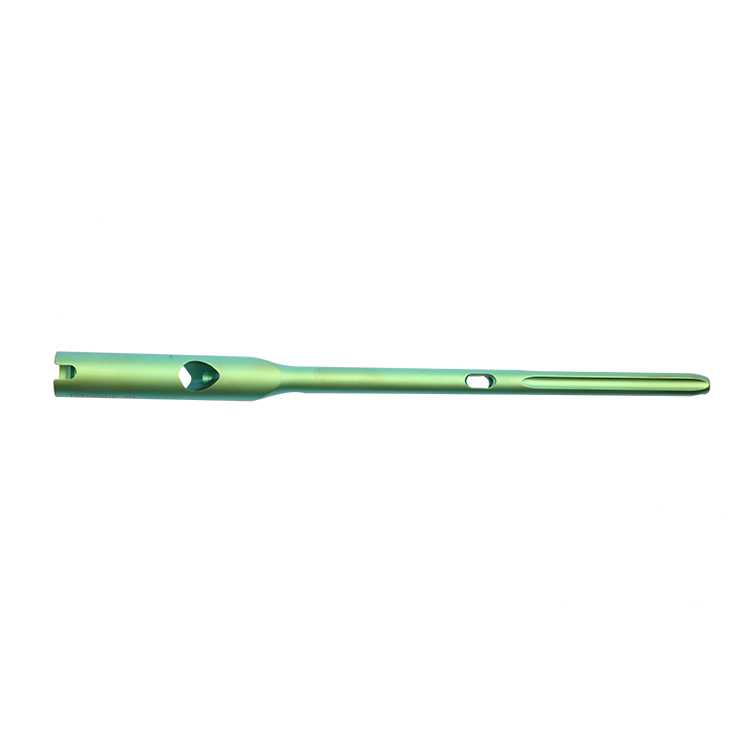

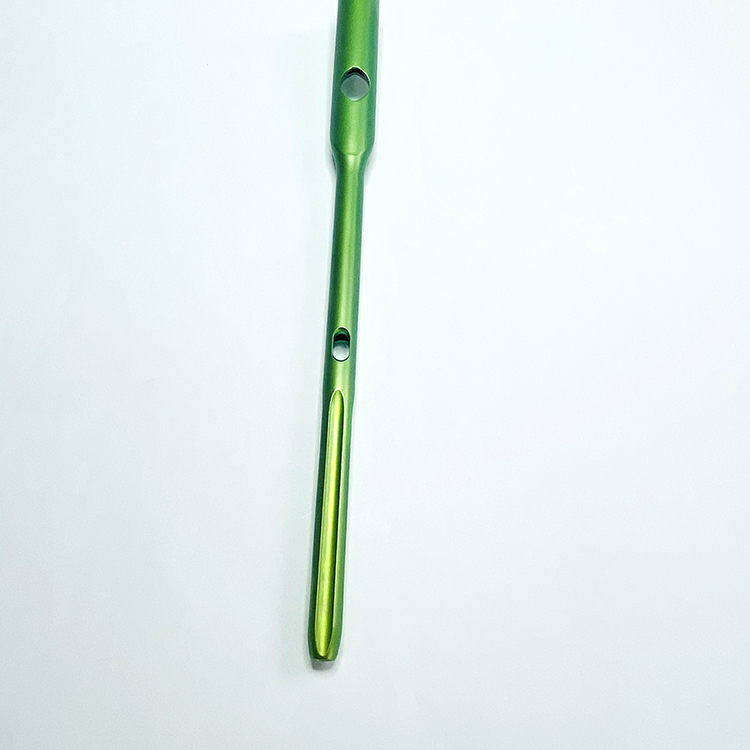

| Proximal Femoral Nail Antirotation | SGM-IIK | 9.0×170×130° | Titanium Alloy | 15649170 |
| Proximal Femoral Nail Antirotation | SGM-IIK | 9.0×200×130° | Titanium Alloy | 15649200 |
| Proximal Femoral Nail Antirotation | SGM-IIK | 9.0×240×130° | Titanium Alloy | 15649240 |
| End Cap | SGM-IIK | 10×15 | Titanium Alloy | 15601115 |
| End Cap | SGM-IIK | 10×20 | Titanium Alloy | 15601120 |
| Antirotation Blade | SGM-IIK | 10.5×70 | Titanium Alloy | 15600570 |
| Antirotation Blade | SGM-IIK | 10.5×80 | Titanium Alloy | 15600580 |
| Locking Screw φ4.9 | SGM-IIK | 4.9×30--72 | Titanium Alloy | 15604930 |
| Femoral Nail Locking Screw I | SGG-IIIK | 6.5×75 | Titanium Alloy | 15246575 |
| Femoral Nail Intramedullary Nail | SGG-IIIK | 9.0-13.0 | Titanium Alloy | 15249340 |
| Humeral Nail Intramedullary Nail | SHG-IK | 8 | Titanium Alloy | 15728160 |
1. 1.0m Radian Radius: The length is meticulously designed to be consistent with the anatomy of the FEMORAL medullary cavity.
2. Screw-in-Screw Design: Engineered to further improve fixation strength for osteoporosis patients. The Blunt End Design of the locking screw reduces the risk of excessive penetration.
3. Comprehensive Sizing:
Short nail: diameter 8.0/9.5mm, length 160mm.
Long nail: diameter 7.0/8.5mm, length 180-315mm (15mm interval).
All nails feature left and right type options in Titanium alloy.
Proximal Fixation: Multi-plane and multi-locking screw options achieve optimal fixation stability. Screw-in-screw design improves strength in osteoporotic bone. Blunt head and countersinking design reduce soft tissue irritation and penetration risk.
Distal Fixation: Short screws utilize two different plane holes. Long screws use three locking holes positioned in safe zones to avoid major blood vessels and nerves. This minimizes rotation and displacement of distal fractures.
Elastic Nail: Nail diameter is recommended at 30-40% of the narrowest medullary cavity. Guidelines: 3mm for 6-8 years old; 3.5mm for 9-11 years old; 4.0mm for 12-14 years old.
Compression: Special compression hole design increases stability for transverse or short oblique fractures. Features a self-sustaining compression mechanism, eliminating the need for static screws during operation.
TFNA System: Compared with the 1.5m radian radius of G3, the TFNA with a 1.0m radius is twice as likely to be centered in the medullary cavity, enhancing anatomical fit.
