Intramedullary nail: All kinds of high quality intramedullary nails. Easy to insert and take out; Titanium alloy material; Reduce the risk of outer wall impact and main nail inward movement; The diameter is suitable for all applications; Simple operation and minimally invasive implantation.
| Product name | Model | Specification | Material | Code |
|---|---|---|---|---|
| Proximal Femoral Nail Antirotation Intramedullary Nail | SGM-IIK | 9.0×170×130° | Titanium Alloy | 15649170 |
| Proximal Femoral Nail Antirotation Intramedullary Nail | SGM-IIK | 9.0×200×130° | Titanium Alloy | 15649200 |
| Proximal Femoral Nail Antirotation Intramedullary Nail | SGM-IIK | 9.0×240×130° | Titanium Alloy | 15649240 |

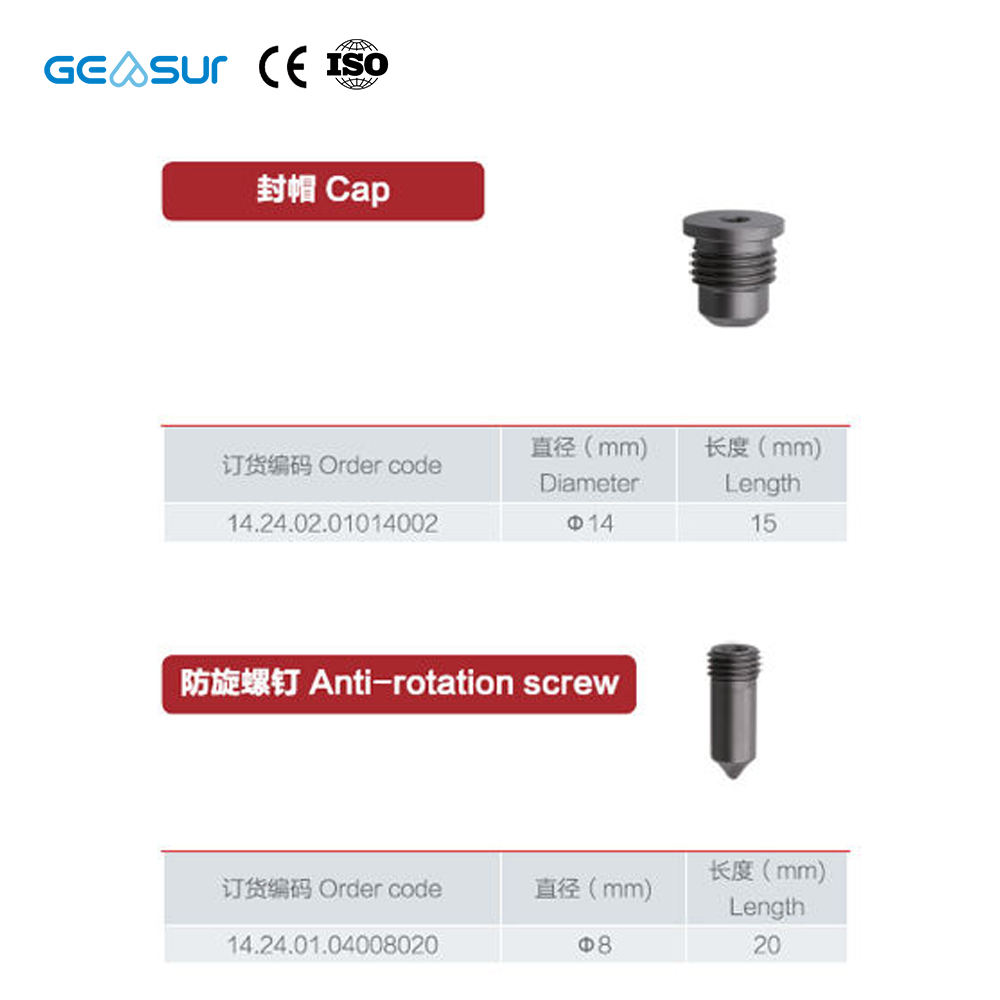

| Proximal Femoral Nail Antirotation End Cap | SGM-IIK | 10×15 | Titanium Alloy | 15601115 |
| Proximal Femoral Nail Antirotation End Cap | SGM-IIK | 10×20 | Titanium Alloy | 15601120 |

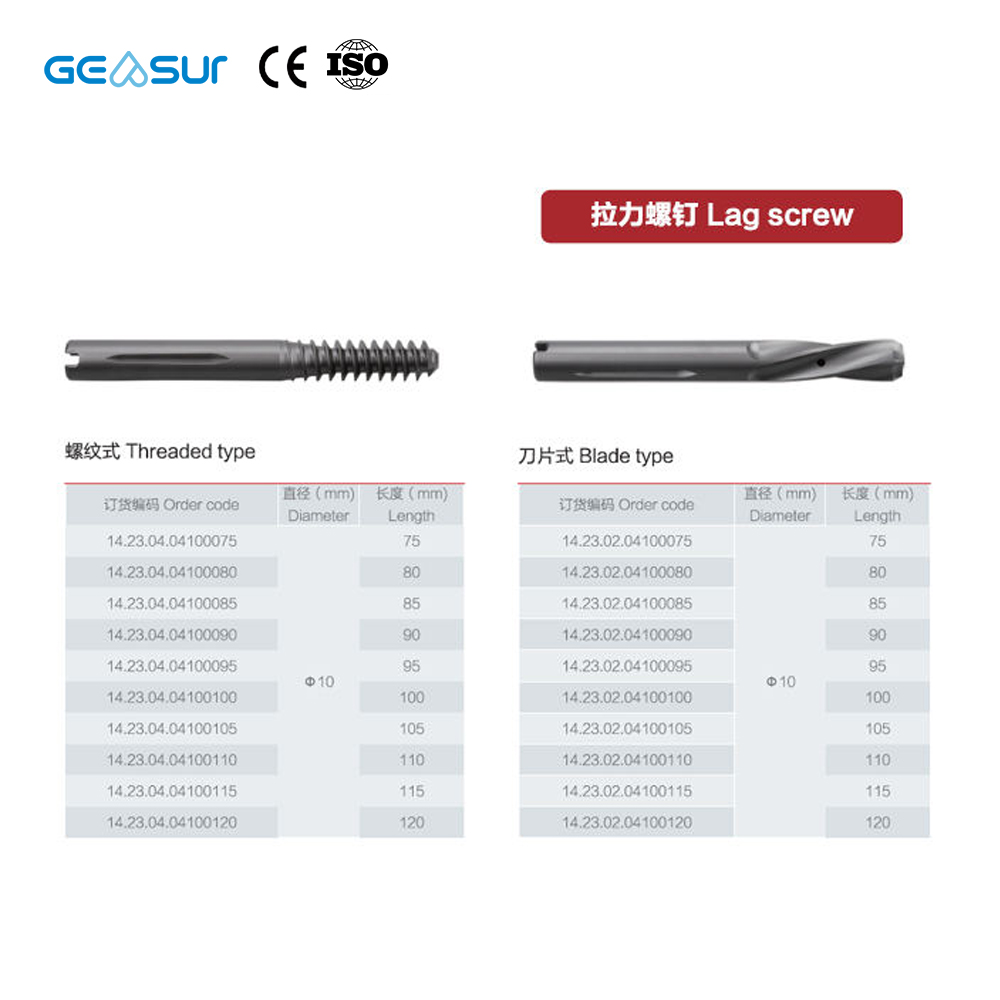

| Proximal Femoral Nail Antirotation Blade | SGM-IIK | 10.5×70 | Titanium Alloy | 15600570 |
| Proximal Femoral Nail Antirotation Blade | SGM-IIK | 10.5×80 | Titanium Alloy | 15600580 |
| Proximal Femoral Nail Antirotation φ4.9 locking screw | SGM-IIK | 4.9×30--72 | Titanium Alloy | 15604930 |
| Femoral Nail locking screw I | SGG-IIIK | 6.5×75 | Titanium Alloy | 15246575 |
| Femoral Nail Intramedullary Nail | SGG-IIIK | 9.0-13.0 | Titanium Alloy | 15249340 |
| Humeral nail Intramedullary Nail | SHG-IK | 8 | Titanium Alloy | 15728160 |
1. 1.0m radian radius: The length is consistent with the anatomy of the FEMORAL medullary cavity.
2. Screw-in-screw design: To further improve the fixation strength of osteoporosis. The Blunt End Design of the locking screw reduces the risk of excessive penetration.

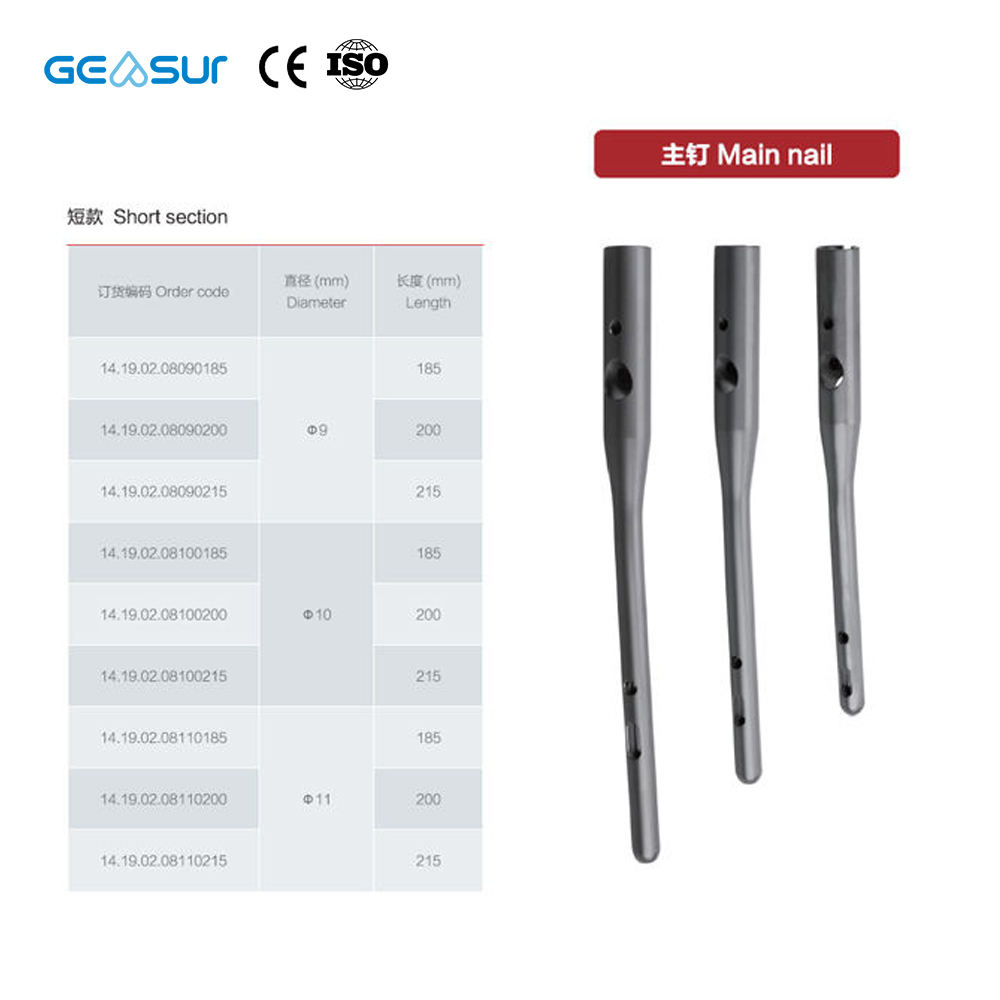

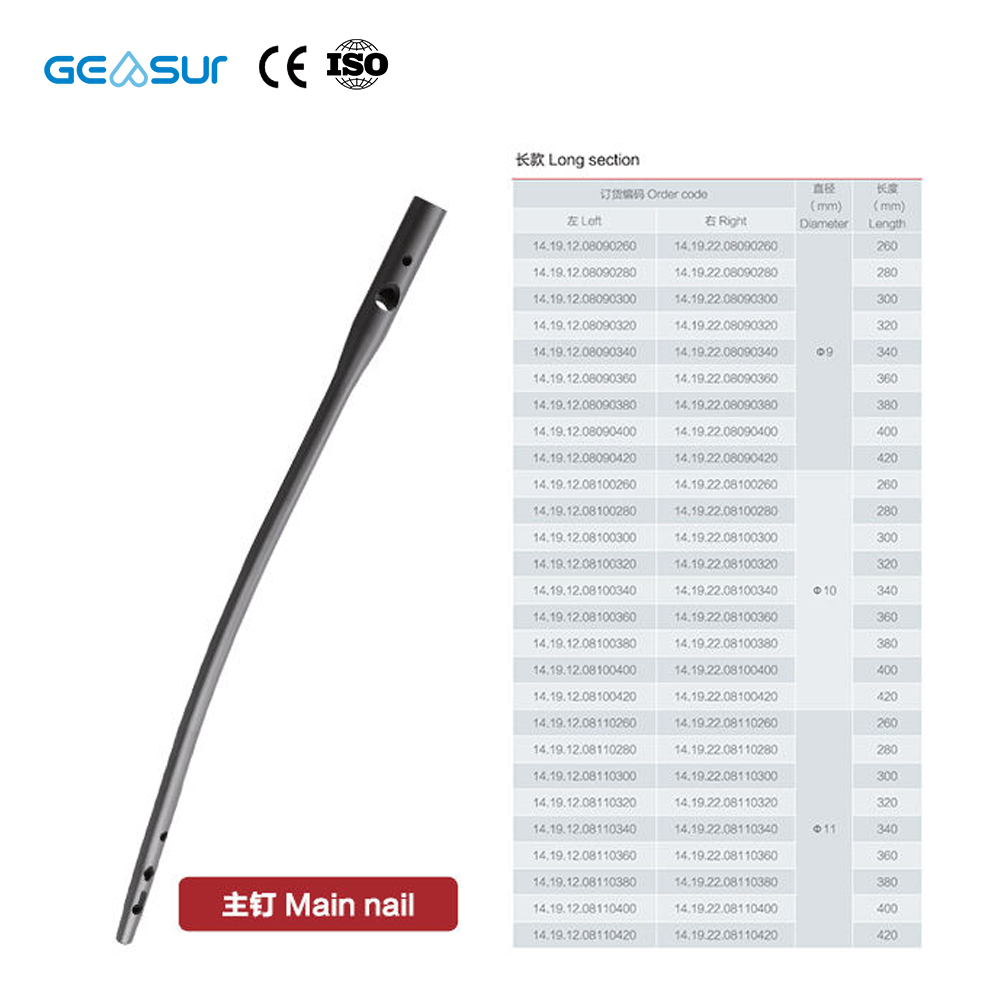

3. Comprehensive Sizing: Short nail (diameter 8.0/9.5mm, length 160mm) and Long nail (diameter 7.0/8.5mm, length 180-315mm). All nails have left and right types in titanium alloy. Simple operation and minimally invasive implantation.

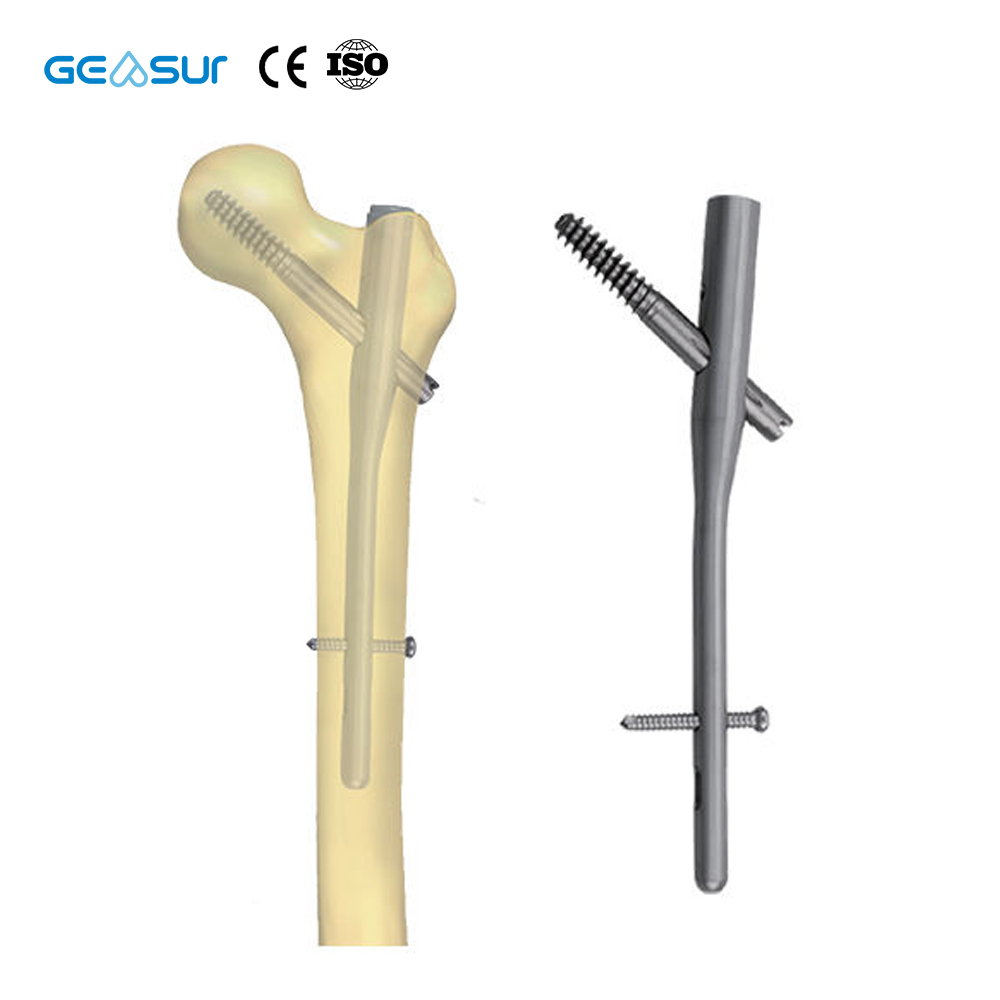

Multi-plane and Multi-locking screw fixation options for optimal stability. Screw-in-screw design improves fixation in osteoporosis. Blunt head locking screw reduces penetration risk. Countersinking design reduces tissue irritation.
Short screw: two different plane holes for locking. Long screw: three locking holes avoid important blood vessels, located in the safe area between the median and radial nerves. Anterior/posterior holes facilitate manual operation, minimizing rotation.
Nail diameter should be 30-40% of the narrowest transverse diameter of medullary cavity. Suitable for: 3mm (6-8 years old); 3.5mm (9-11 years old); 4.0mm (12-14 years old).
Special design of compression holes increases stability of transverse or short oblique fractures. Self-sustaining compression mechanism eliminates the need for static screws during operation.
Compared with G3 (1.5m radian radius), the TFNA distal location (1.0m radian radius) is twice as likely to be in the center of the medullary cavity.
