01
1.0m radian radius: The length is consistent with the anatomy of the FEM ORAL medullary cavity.
02
Screw-in-screw design: To further improve the fixation strength of osteoporosis. The Blunt End Design of the locking screw reduces the risk of excessive penetration.
03

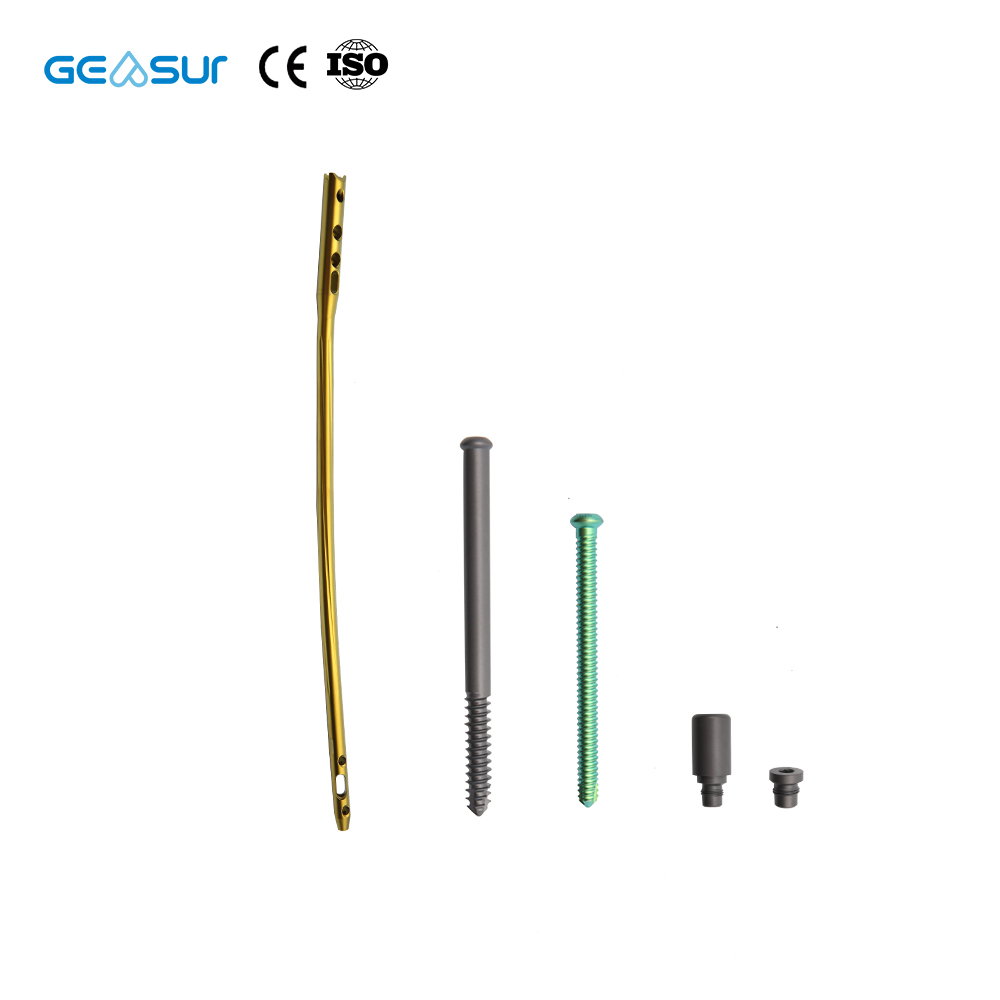

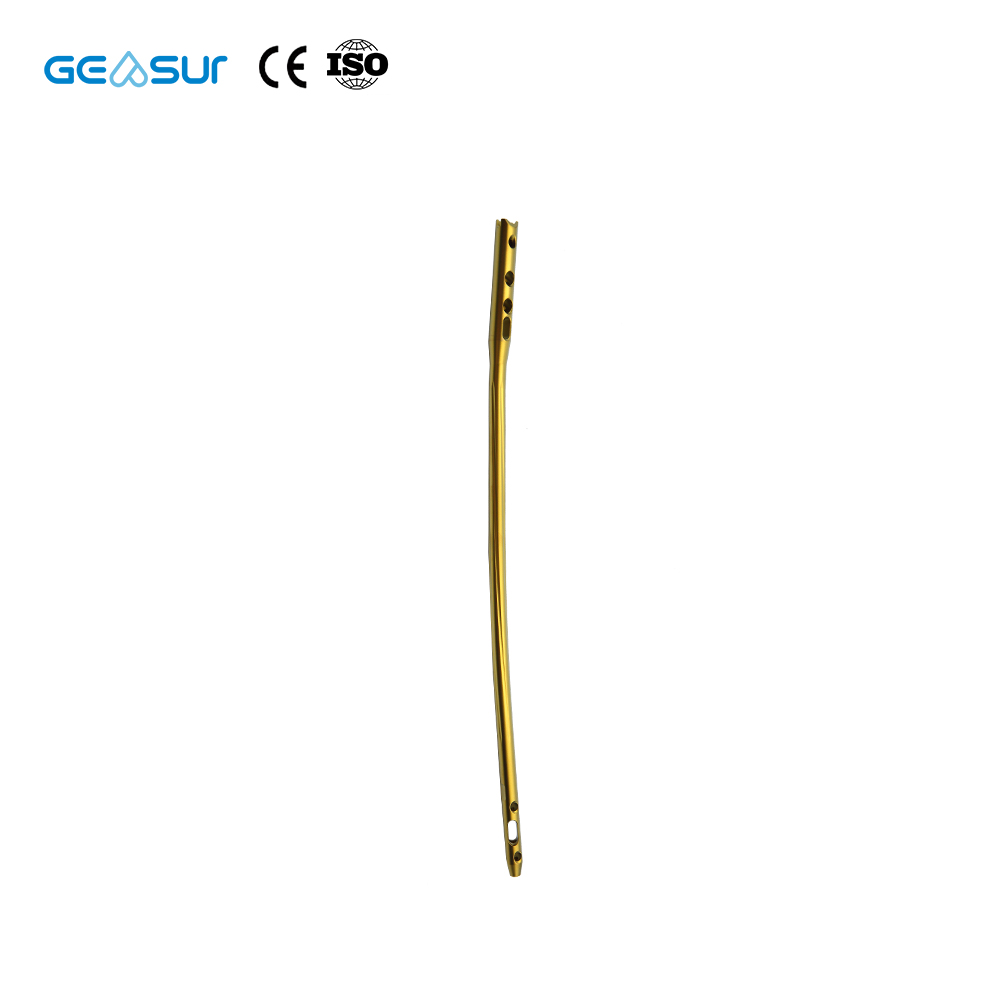

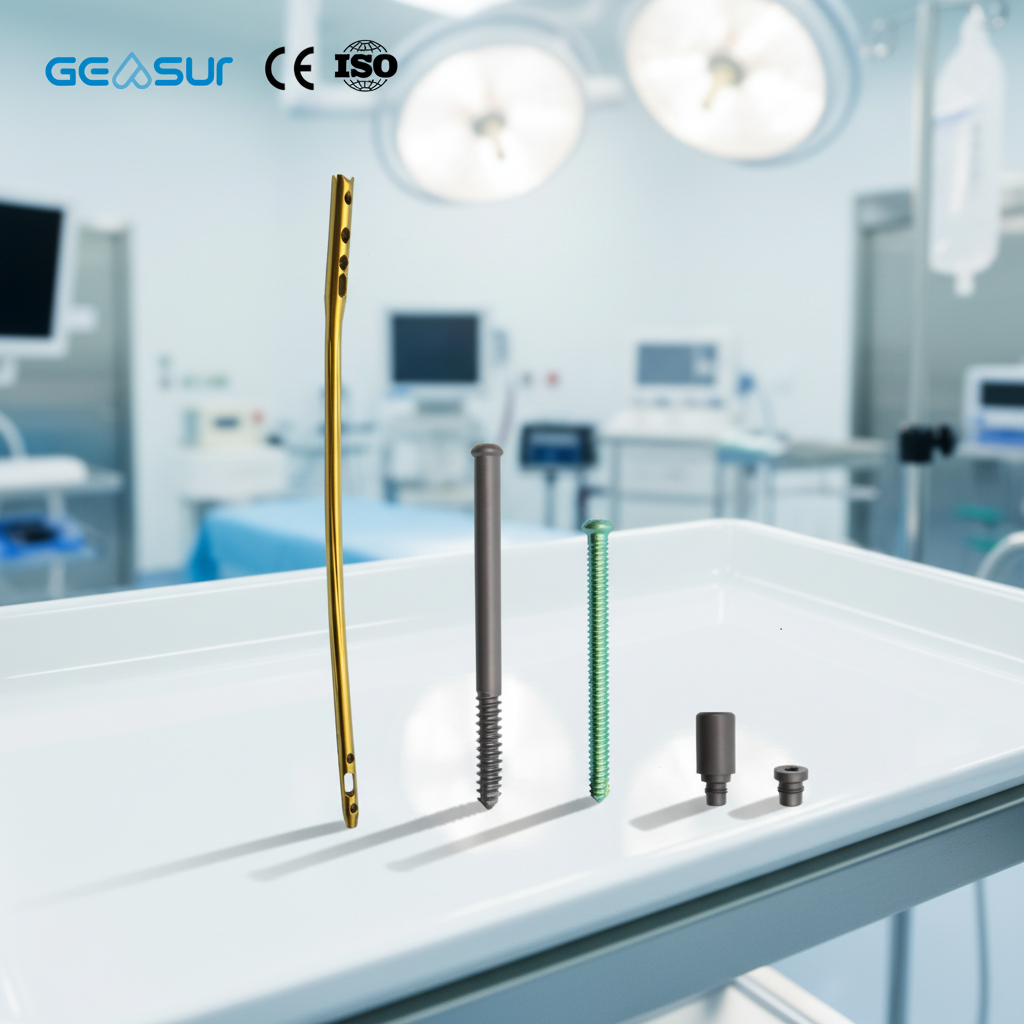

Size Options: Short nail: diameter of 8.0/9.5mm, length of 160mm. Long nail: diameter of 7.0/8.5mm, length of 180-315mm (15mm interval). All nails have left and right type, titanium alloy material. The diameter is suitable for all applications. Simple operation and minimally invasive implantation.
Proximal fixation: Multi-plane and Multi-locking screw fixation options, multiple options for operation, to achieve optimal fixation stability. Screw-in-screw design to further improve the fixation strength of osteoporosis. Blunt head of locking screw design to reduce the risk of excessive penetration. Locking screw countersinking design to reduce soft tissue irritation.
Distal fixation: Short screw: two different plane holes for locking. Long screw: three locking holes avoid important blood vessels, located in the safe area between the median nerve and the radial nerve. Two anterior and posterior locking holes facilitate the manual operation, minimizing the occurrence of rotation and displacement of distal fracture.
Elastic Nail: Nail diameter should be 30-40% of the narrowest transverse diameter of medullary cavity. Apply to 3mm/ 6-8 years old; 3.5mm/ 9-11 years old; 4.0mm/ 12-14 years old.
Compression: Special design of compression holes. Helps to increase the stability of transverse or short oblique fractures. Self-sustaining compression mechanism, no static screw is needed to maintain compression during operation.
TFNA System: Compared with G3 with radian radius of 1.5m, the distal location of TFNA with radian radius of 1.0m in the center of medullary cavity is twice as likely as that of G3.
Our company is a leading orthopedic medical device R & D, manufacturing and operation enterprise in China. We focus on the development, manufacturing and sales of orthopedic trauma, spine and bone joint implants and devices. With first-class production equipment, professional R & D, technology and manufacturing team, quality management system in line with international standards and efficient marketing service strategy, we have won the affirmation of many partners. Our senior R & D technical teams have many years of experience in orthopedic medical devices, making unique achievements in the field. Adhering to the development concept of technological innovation, product innovation and service innovation, we integrate advantageous resources to serve the great cause of human health.
Q1: Would you please give some information on shipping mode and charges?
A: Normally we send through courier like DHL, FEDEX, UPS, TNT etc or post upon request from clients.
Q2: Do you have ISO9001, ISO 13485, CE approvals?
A: Yes, we hold ISO9001, ISO13485, and CE certifications for our orthopedic implants, including the Intramedullary Nail. We can provide certificate copies upon request.
Q3: What is the minimum order that we can place? Do you provide free samples?
A: We expect your minimum orders to be at least US$500. However, we understand that customers need to place smaller sample orders in the beginning to test the market. We could offer free samples, but do not pay the cost of freight.
Q4: Can I buy products not shown but similar to your catalogue?
A: Of course you can, just send us pictures or samples. But this takes a little longer time for delivery.
Q5: Do you have stock for listed products, or are they newly produced?
A: Generally, we have stock for every listed product, produced monthly. Payment terms: <=800USD, 100% in advance. >800USD, 30% T/T in advance, balance before shipment. Methods include L/C, T/T, Western Union, PayPal etc.
Q6: What materials are primarily used in your implants?
A: Most of our intramedullary nails and orthopedic devices are manufactured using high-grade Titanium Alloy, ensuring biocompatibility and strength.
