| Product Name | Model | Specification | Material |
|---|---|---|---|

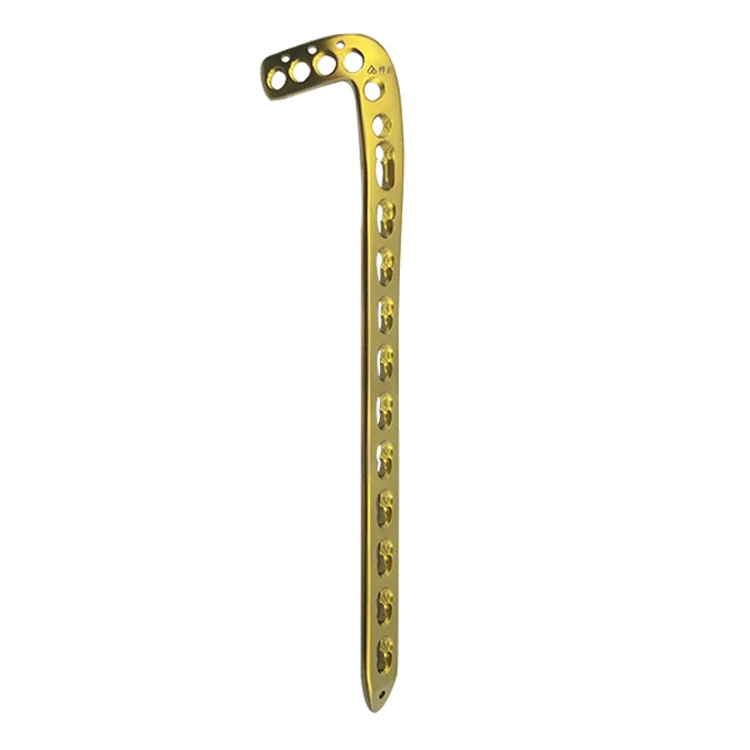

| Anterolateral Distal Tibia Locking Plate (LISS) | JPSD124 | 5--20 hole | Titanium Alloy |
| Code | Direction | Specification (Holes) | Length |
|---|---|---|---|
| 11450205 / 11450305 | Left / Right | 5 | 76mm |
| 11450207 / 11450307 | Left / Right | 7 | 102mm |
| 11450208 / 11450308 | Left / Right | 8 | 115mm |
| 11450210 / 11450310 | Left / Right | 10 | 141mm |
| 11450212 / 11450312 | Left / Right | 12 | 167mm |
| 11450215 / 11450315 | Left / Right | 15 | 206mm |
| 11450220 / 11450320 | Left / Right | 20 | 271mm |
| Product Name | Model | Spec | Material | Code |
|---|---|---|---|---|
| Reconstruction Locking Plate | ZXSD02 | 6 hole | Titanium Alloy | 10010006 |
| Narrow Dynamic Locking Plate II | ZXSD05 | 6--14 hole | Titanium Alloy | 10040406 |
| Humeral Compression Locking Plate | JPSD13 | 4--16 hole | Titanium Alloy | 10350203 |
| Clavicular Hook Locking Plate | JPSD09 | 4--8 hole | Titanium Alloy | 10300204 |
| Proximal Humeral Locking Plate | JPSD33 | 3--14 hole | Titanium Alloy | 10540203 |
| Distal Radial Locking Plate II | JPSD78 | 3--8 hole | Titanium Alloy | 10990203 |
3 different dorsiflexion angles (0°/ 5°/ 10°) suitable for different joints. Reliable Kirschner wire compression holes and slots in the middle of plate. Etching lines on the plate indicate the correct fusion position.
Plates are anatomically precontoured. With countersinkable head design of 2.7mm screw to reduce tissue irritation. 5 types allow doctors to determine fracture fixation schemes according to the condition.
Extension holes in the middle of the plate to adjust the position. Plate can be placed on the ulnar and radial sides. Anatomically precontoured for phalanx with left and right types.
