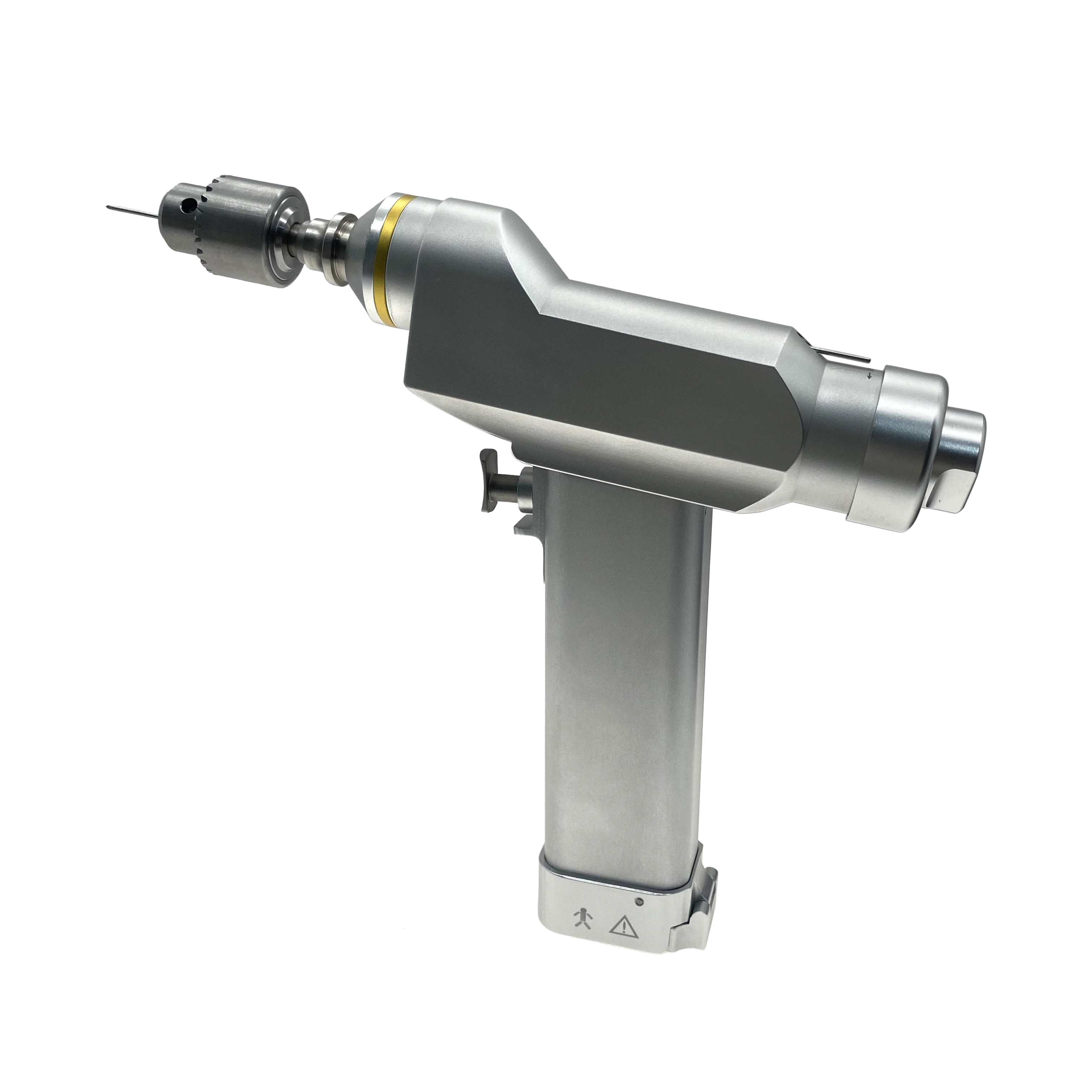

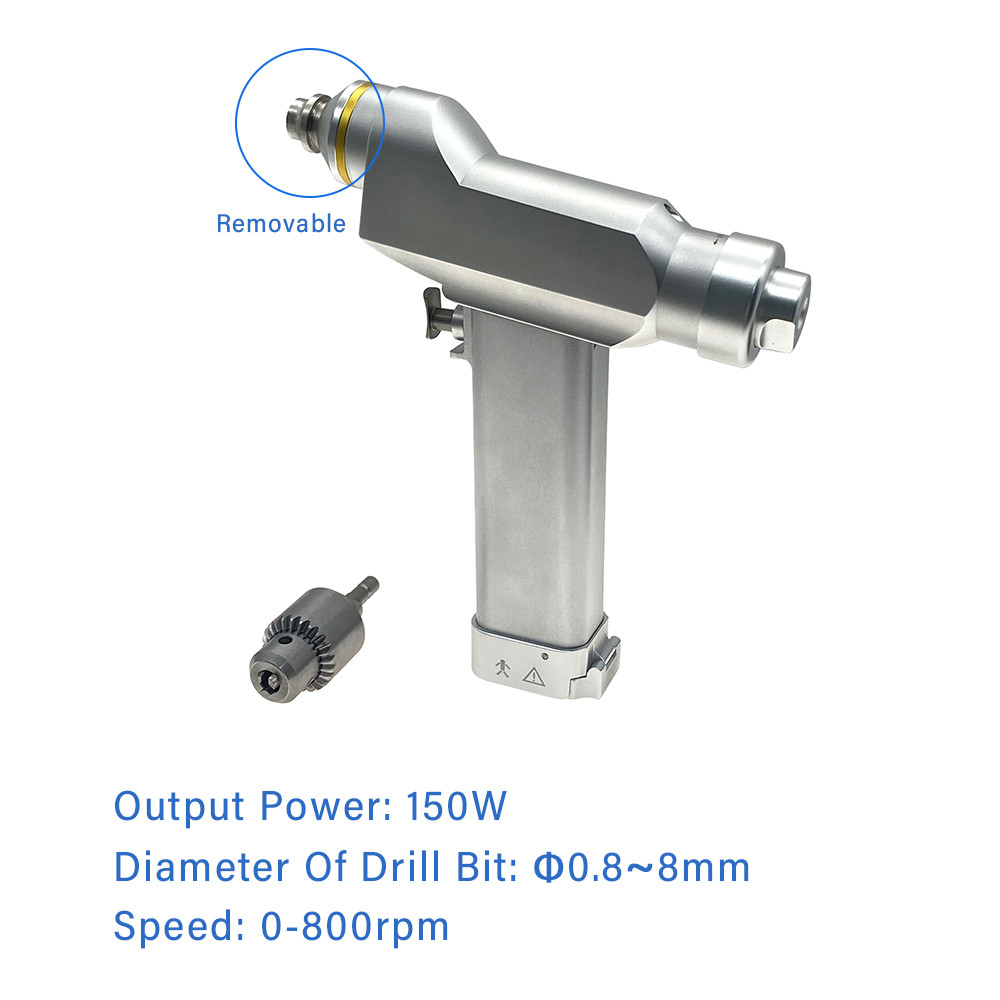

Orthopedics Battery Operated Drill Machine
Cannulated Drill for Trauma Surgery & Veterinary Applications
Product Specifications
| Product |
Orthopedic drill/Cannulated drill |
| Usage |
Orthopedic Trauma Surgery, Joint Surgery |
| Color |
Silvery |
| Material |
Stainless Steel / Aluminum |
Technical Parameters & Features
⚙
Power & Speed
Output Power: 130W
Speed: 0-800 r.p.m
Chuck Range: 0.8-8mm
🌡
Sterilization
High Temperature: Up to 135ºC

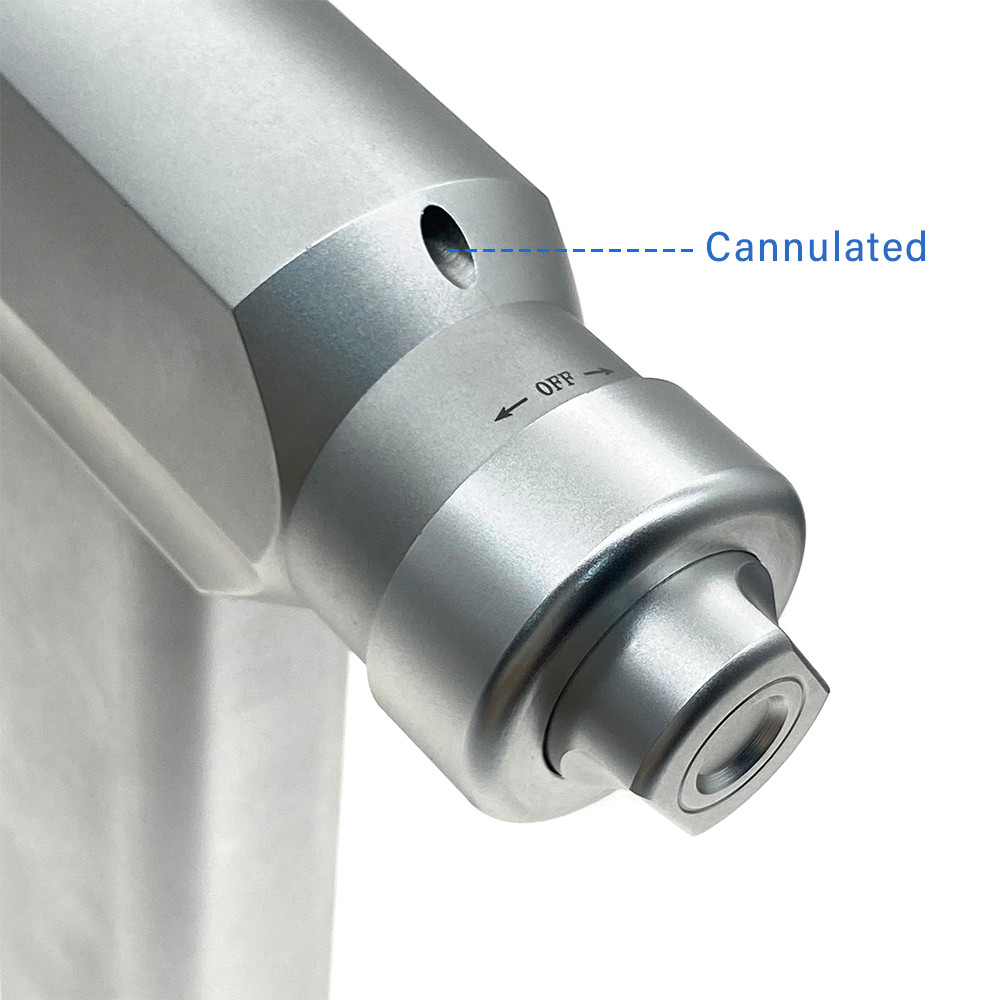

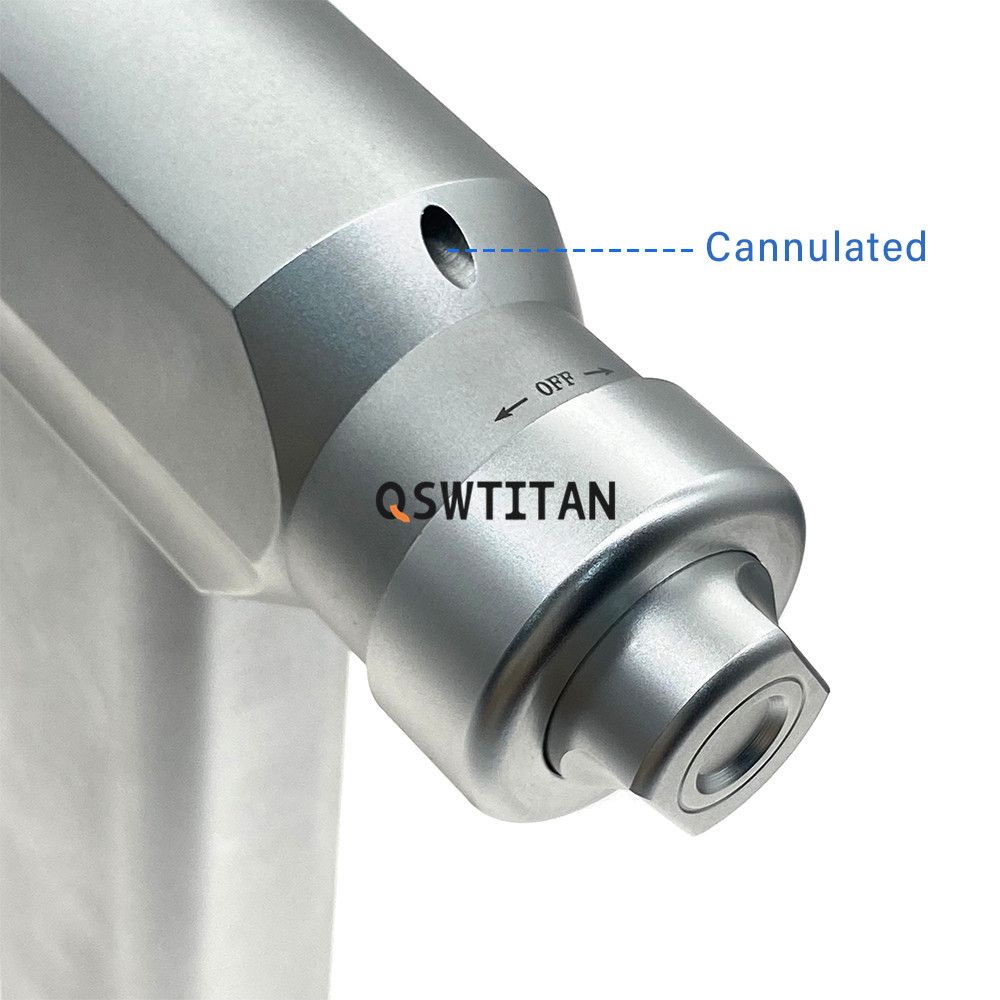

Sterilization channel included
🔋
Battery & Voltage
Operation Voltage: 14.4V
Charging Time: 2.5-3 Hours
Input: AC 220V/50Hz or 110V/60Hz
🔇
Operation Quality
Noise: ≤ 65 dB
Concentric Drilling: < 0.05mm difference
Hand-piece Temp Rise: ≤ 25ºC
- Discretionary speed control to meet different surgery situations.
- Strong power, low noise, and small vibration.
- Convenient operation with ergonomic design.
- Precise and stable performance ensures surgical accuracy.

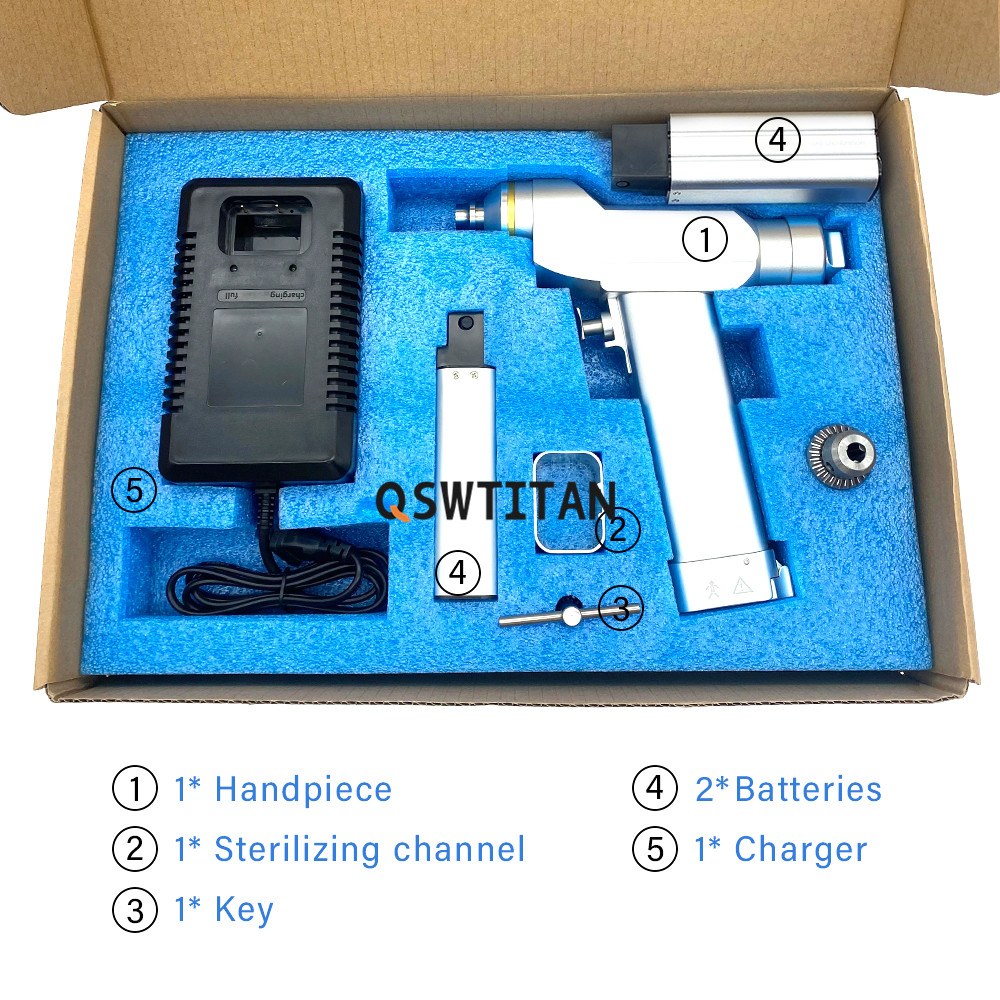

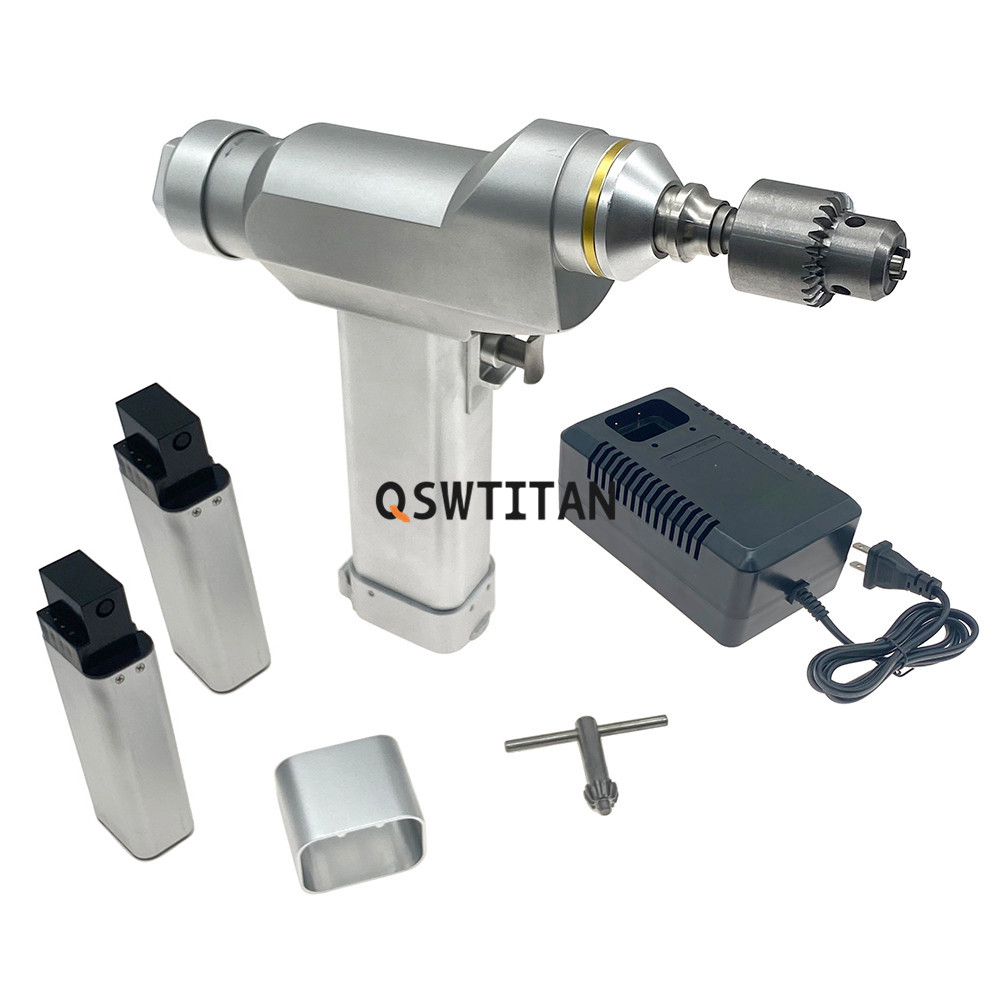

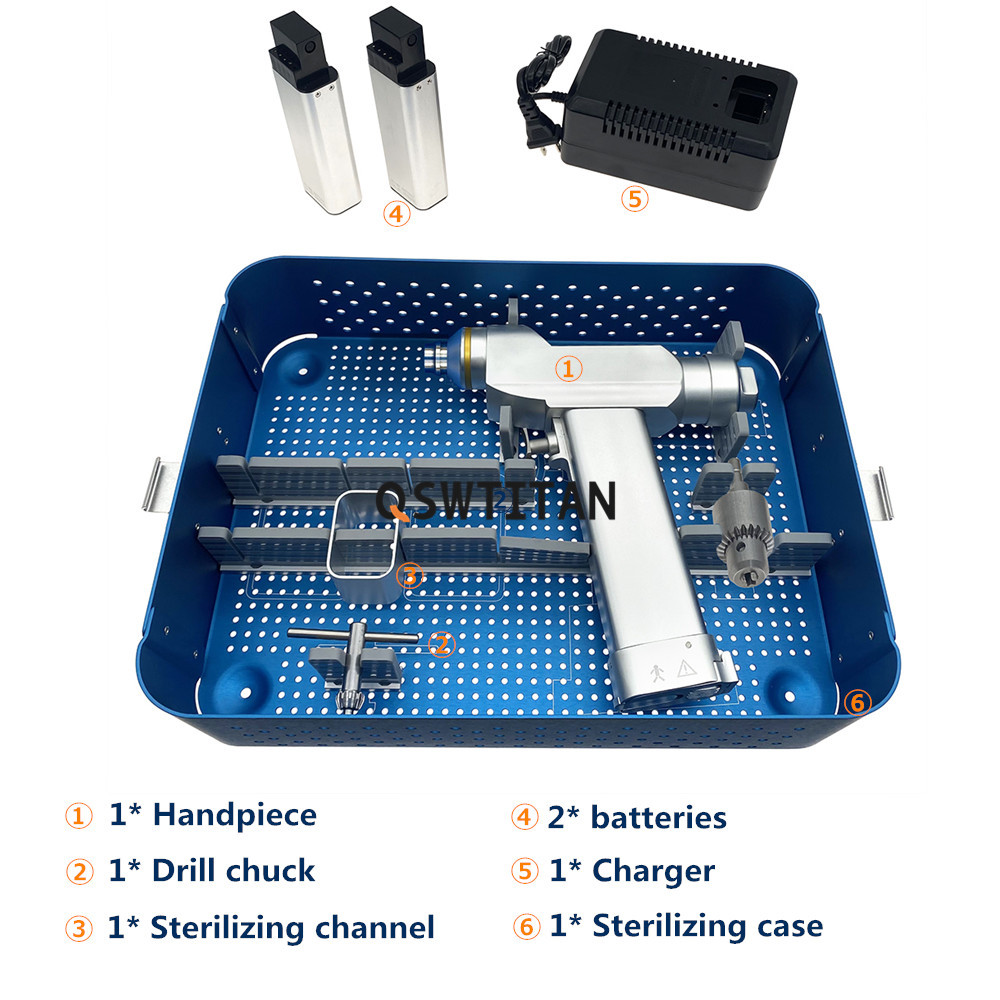

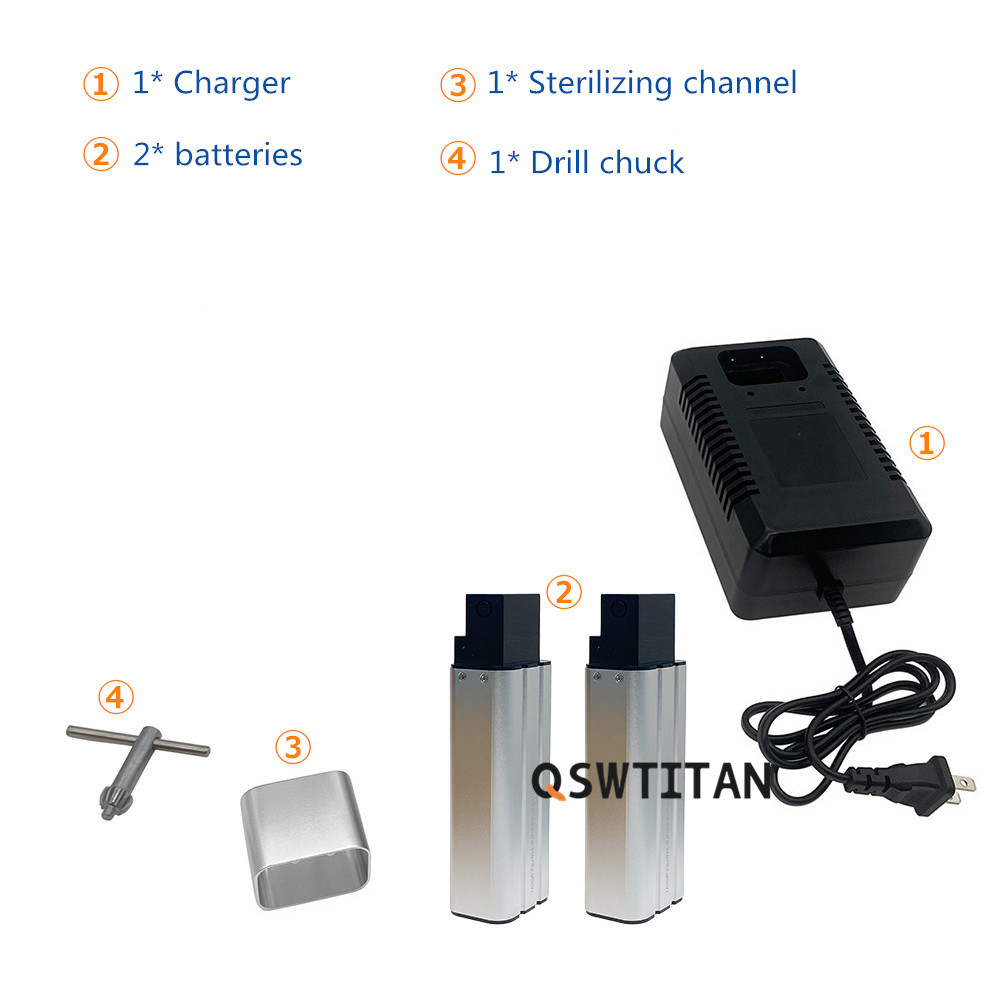

Standard Configuration
- 1 Cannulated drill Handpiece
- 1 Sterilizing channel

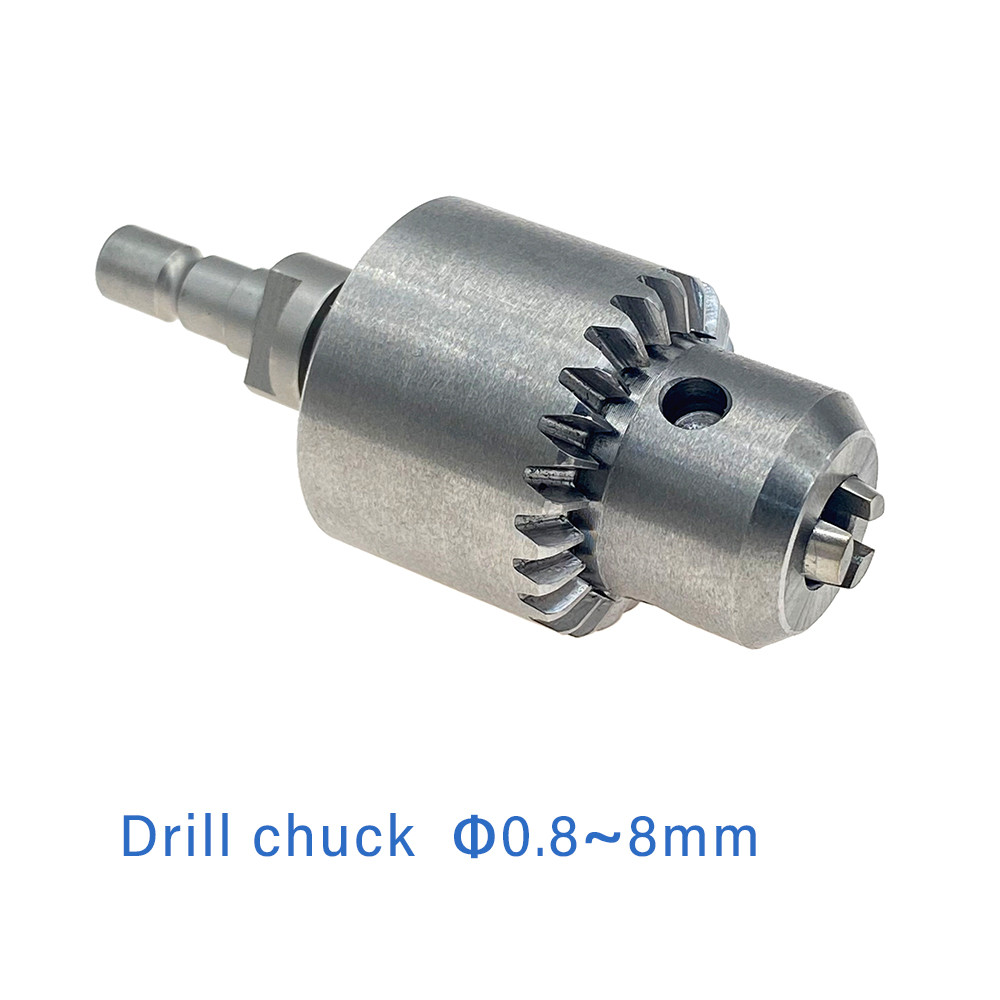

- 1 Drill chuck
- 2 Batteries
- 1 Charger
- 1 Carton case or Sterilization box

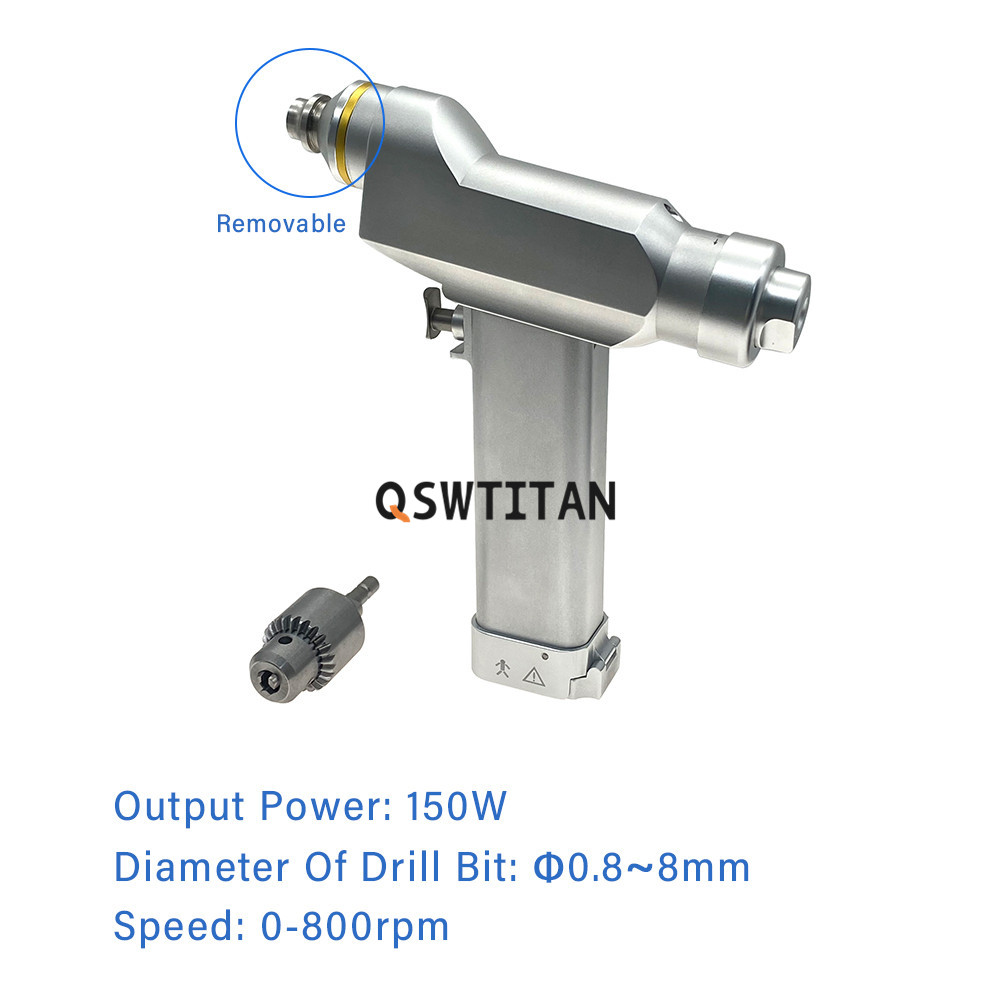

Product Display
Usage Scenarios
Packaging & Shipping
Frequently Asked Questions
Q: What is the maximum sterilization temperature for this drill?
A: The handpiece and relevant components can be sterilized up to 135ºC (275°F) to ensure complete clinical safety.
Q: Is this drill suitable for veterinary orthopedic surgery?
A: Yes, it is designed for both human trauma surgery and veterinary orthopedic procedures, providing the precision needed for various bone types.
Q: How many batteries are included in the standard set?
A: The standard configuration includes 2 high-capacity 14.4V batteries to allow for continuous use during longer surgical procedures.
Q: What is the speed range and can it be adjusted?
A: The speed ranges from 0 to 800 r.p.m. It features discretionary speed control to allow the surgeon to adapt to specific surgical requirements.
Q: What are the noise and vibration levels of the machine?
A: The device is engineered for low noise (approx. 65 dB) and minimal vibration, enhancing the comfort and precision of the surgeon during operation.
Q: What is the concentricity of the drilling performance?
A: The drill ensures high precision with a concentric drilling difference of less than 0.05mm, guaranteeing stable performance.
