Product Description

Orthopaedic Reamer bone drill for Knee Joint Surgeries MD-3011
Technical Parameters
Working Voltage14.4V
Output Power≥ 20W
Unit Rise In Temperature≤ 25° C
Input VoltageAC 220V, 50Hz
Output Power (Charger)14.4V, 900mA
Input Power30VA
Voltage14.4V
Charging TimeAbout Three Hours
Speed300r/min
Diameter run-out≤ 0.5mm
Noise≤ 63dB
Drill chuck diameter0.6-8mm
MaterialStainless steel
Torque33000gcm
Colorblack
Main Features
IFor joint operation applications.
IILow speed with great torque; compatible with various acetabulum burnishing and medullary cavity expanding tools.
IIIMain unit supports sterilization via high temperature and high pressure up to 135°C.
IVExcellent quality, portable design with low noise and variable speed control. Carbonless motor for increased power.
VScientific balance technology reduces vibration and enhances handpiece control for comfortable operation.
VIHigh concentricity ensures precision in polishing acetabulum during HIP operations.
VIILarge torsional moment provides powerful polishing capabilities.
VIIIOptimized for low speed and high torque performance.

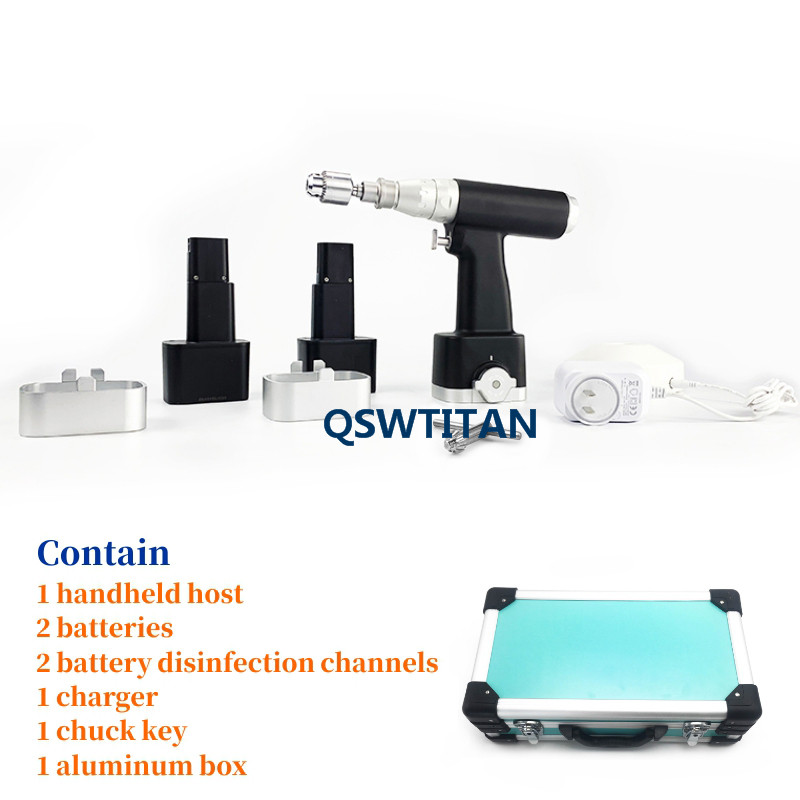

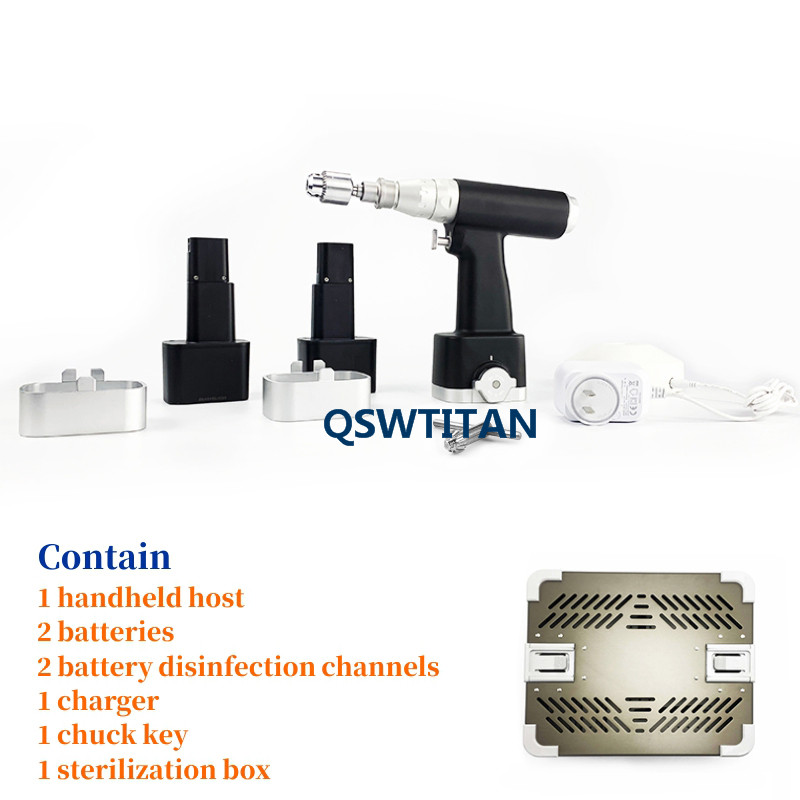

Standard Configuration
  • One mainframe
  • One charger
  • Two batteries
  • Two sterilizing channels
  • One drill chuck

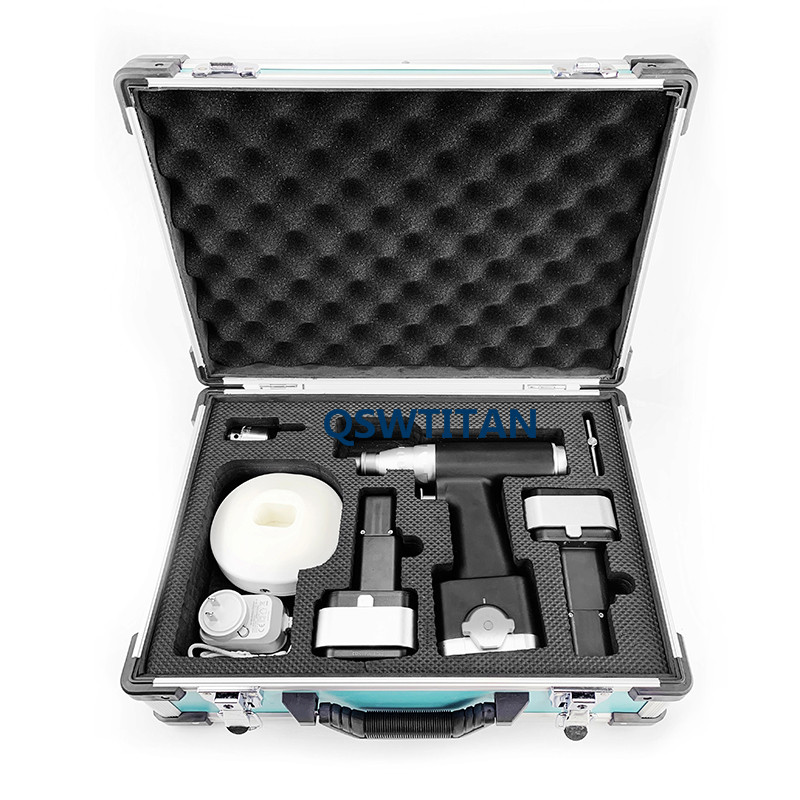

  • One aluminum alloy box or Sterilization box
Detailed Images
Orthopedic Power Drill 1
Orthopedic Power Drill 2
Orthopedic Power Drill 3
Orthopedic Power Drill 4
Orthopedic Power Drill 5
Attention: Manual measurement, please allow a small measurement error of 5mm.
Packaging & Shipping
Packaging
Factory and Quality Display
Factory 1
Factory 2
Factory 3
Exhibition 1
Exhibition 2
Certification
Production
Workshop
Product Display
Team
Facility
Footer Banner
Frequently Asked Questions (FAQ)
Q1: What is the primary surgical application for the MD-3011 bone drill?
A1: It is specifically designed for orthopaedic joint operations, particularly knee joint surgeries, requiring high torque and precision.
Q2: Is the main unit autoclavable?
A2: Yes, the main unit is designed to be sterilized by high temperature and high pressure up to 135°C.
Q3: What is the maximum speed and noise level of this device?
A3: The device operates at a speed of 300r/min with a noise level of ≤ 63dB, ensuring a quiet surgical environment.
Q4: How many batteries are included in the standard package?
A4: The standard configuration includes two batteries to ensure continuous operation during procedures.
Q5: What materials are used in the construction of the MD-3011?
A5: The reamer is made of high-quality stainless steel, ensuring durability, corrosion resistance, and surgical safety.
Q6: Does the drill support variable speed control?
A6: Yes, it features variable speed control, allowing surgeons to easily select the appropriate power during operation.
