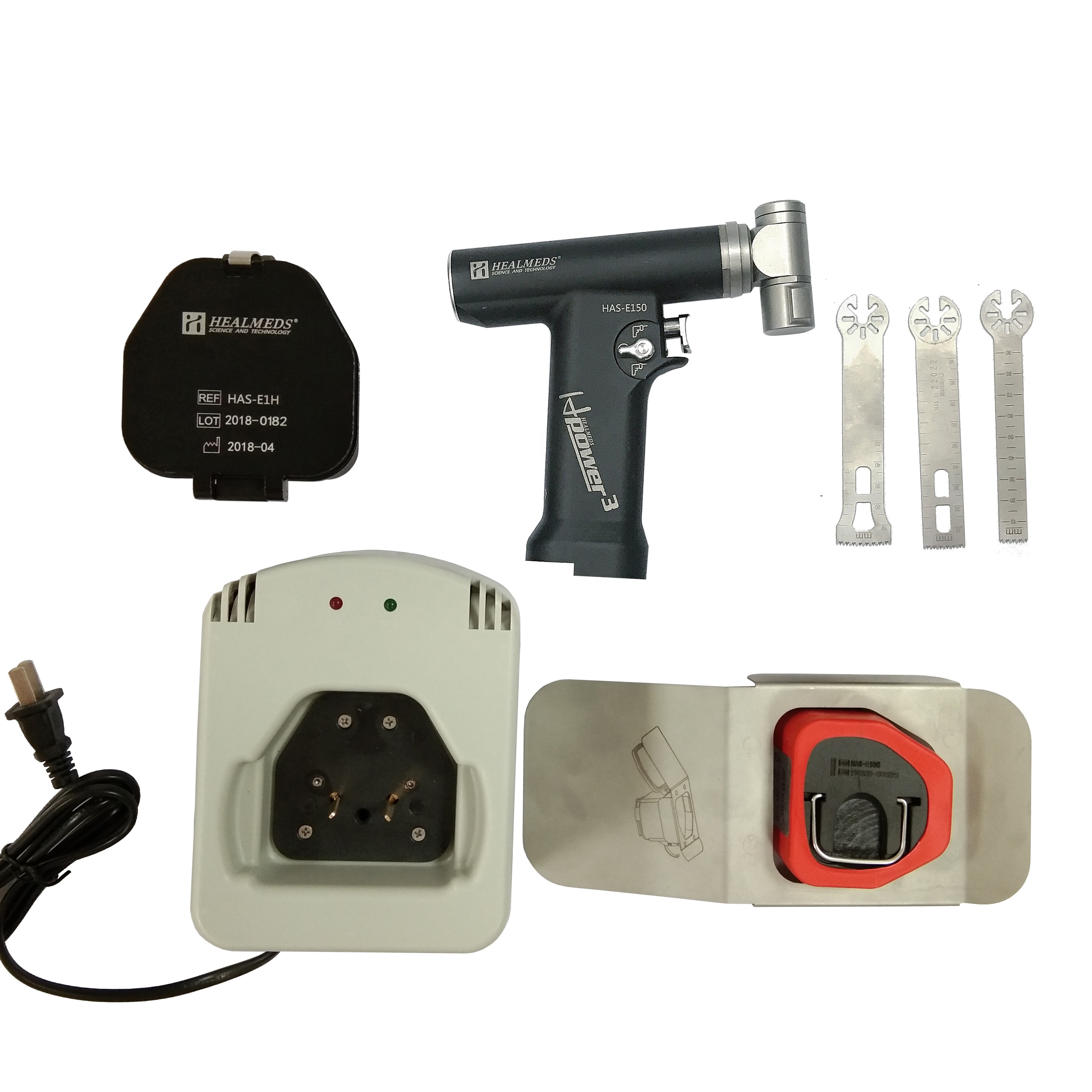

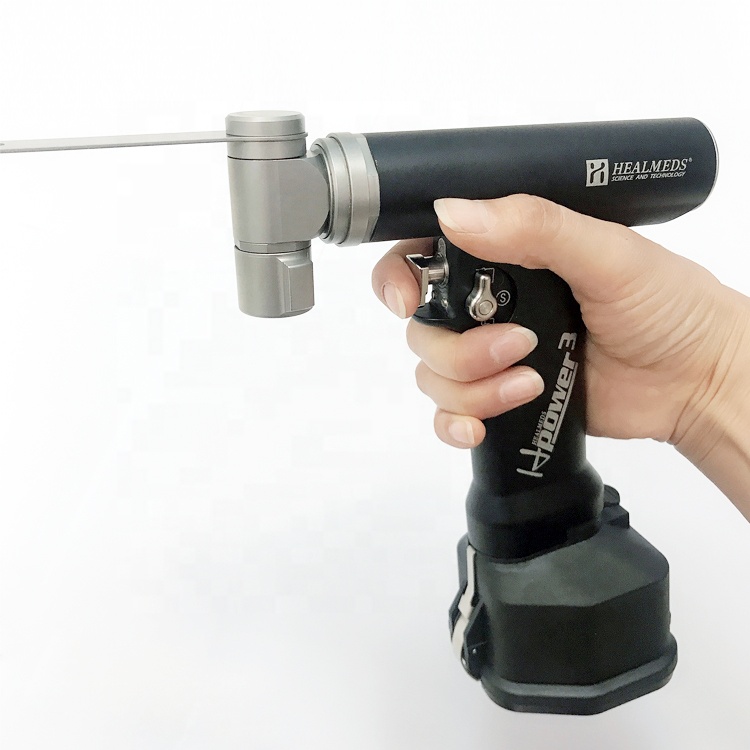

Orthopedic Surgical Instrument Brushless Motor Bone Oscillating Saw for Pet
Orthopedic Surgical Instrument Brushless Motor Bone Oscillating Saw for Pet
Orthopedic Surgical Instrument Brushless Motor Bone Oscillating Saw for Pet
Orthopedic Surgical Instrument Brushless Motor Bone Oscillating Saw for Pet
1 / 4
Orthopedic Surgical Instrument Brushless Motor Bone Oscillating Saw for Pet
Orthopedic Surgical Instrument Brushless Motor Bone Oscillating Saw for Pet
Orthopedic Surgical Instrument Brushless Motor Bone Oscillating Saw for Pet
Orthopedic Surgical Instrument Brushless Motor Bone Oscillating Saw for Pet

Orthopedic Surgical Instrument Brushless Motor Bone Oscillating Saw for Pet

Send Inquiry

Product Description

Product Description

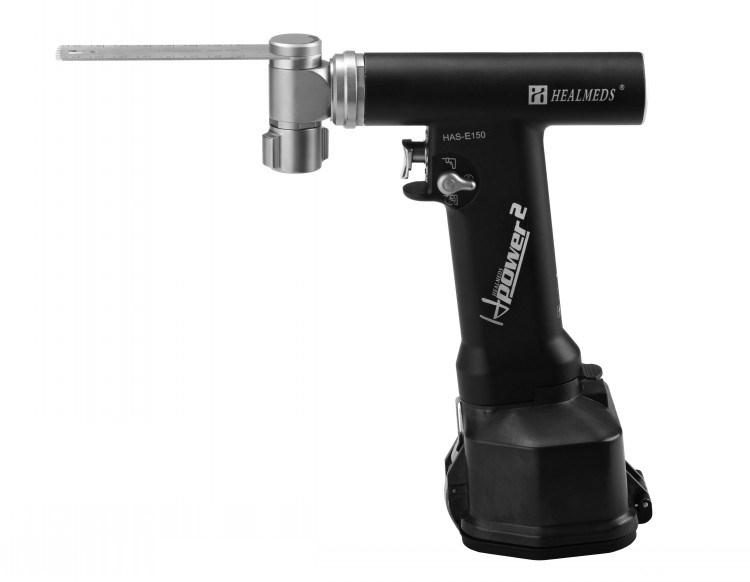

Product View 1

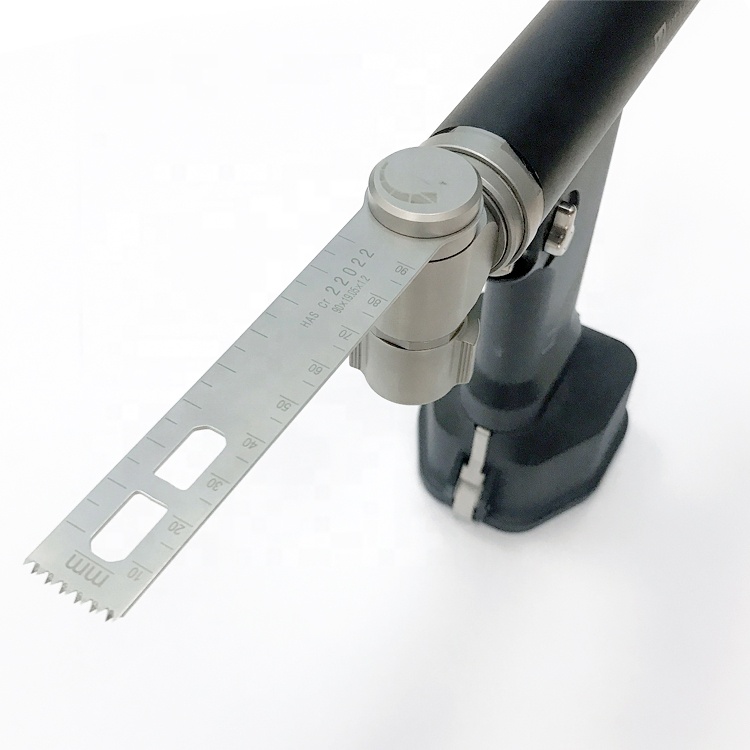

Product View 2

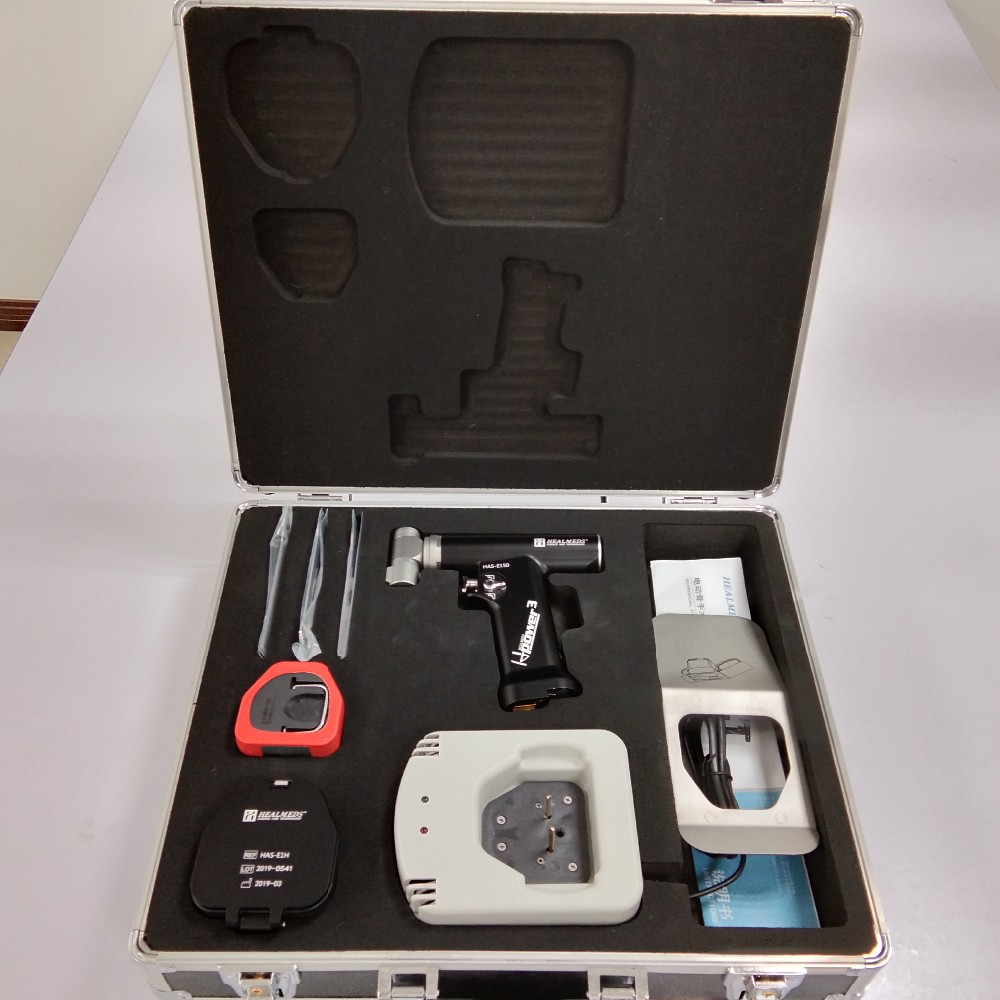

Product View 3
Specification
NO. Item Value
1 Oscillations 11000cpm
2 Swing ≥4.5°
3 Noise ≤75dB
4 Sterilization temperature 135°C
5 Operation voltage 9.6V
6 Battery capacity 2100mAh
⚠️ IMPORTANT NOTE:
  • Sterilize temperature ≤ 135 °C (Improved type ≤ 155 °C ), if the temperature is over 135 °C, the motor will be damaged.
  • Normal bone drill can only hold drill bits less than 6 mm, reaming drill with big torque, rpm is around 300, hollow drill is used with nail or K wire, rpm is around 600.
  • The battery need to be get out of the power tool after surgery. Otherwise the small automatic discharge of the electric will make the life of the battery short.
  • The battery cannot be sterilized, it is not resistant to high temperatures.
  • The cranial bur must be washed right after the surgery by purger in order to avoid the blood stick in the bur, then we should make it dry.
  • The battery space in the hand piece of the tool should not have any water, after sterilization.
  • The cranial bur blade is made of medical stainless steel, in order to avoid broken, so it is flexible and not very hard, it is easy to be worn-out, we suggest each blade only use for 1 surgery.
Certification
Certification
Company Profile
Company Facility 1
Company Facility 2
Exhibition
Exhibition Display
FAQ Overview
FAQ Details
Frequently Asked Questions
Q1: What is the maximum temperature for sterilization?
A: The sterilization temperature should be ≤ 135 °C. If the temperature exceeds this limit, the motor may be damaged. Improved types can handle up to 155 °C.
Q2: Can the battery be sterilized with the handpiece?
A: No, the battery cannot be sterilized as it is not resistant to high temperatures. It must be removed before the sterilization process.
Q3: How should the cranial bur be maintained after surgery?
A: The cranial bur must be washed immediately after surgery to avoid blood sticking, then dried thoroughly. The battery space must also be kept free of water.
Q4: What is the recommended usage for the blades?
A: Since the medical stainless steel blades are flexible to avoid breakage and can wear out easily, it is suggested to use each blade for only one surgery.
Q5: Why must the battery be removed from the tool after surgery?
A: Small automatic discharges can occur if the battery remains in the tool, which significantly shortens the overall battery life.
Q6: What are the noise and vibration specifications?
A: The device operates with oscillations at 11000cpm and maintains a noise level of ≤75dB for a quieter surgical environment.
