Orthopedic Electric Bone Drill Medical Veterinary Bone Drill Orthopedic Power Surgery Instrument Pet Tool
Orthopedic Electric Bone Drill Medical Veterinary Bone Drill Orthopedic Power Surgery Instrument Pet Tool
Orthopedic Electric Bone Drill Medical Veterinary Bone Drill Orthopedic Power Surgery Instrument Pet Tool
Orthopedic Electric Bone Drill Medical Veterinary Bone Drill Orthopedic Power Surgery Instrument Pet Tool
Orthopedic Electric Bone Drill Medical Veterinary Bone Drill Orthopedic Power Surgery Instrument Pet Tool
1 / 5
Orthopedic Electric Bone Drill Medical Veterinary Bone Drill Orthopedic Power Surgery Instrument Pet Tool
Orthopedic Electric Bone Drill Medical Veterinary Bone Drill Orthopedic Power Surgery Instrument Pet Tool
Orthopedic Electric Bone Drill Medical Veterinary Bone Drill Orthopedic Power Surgery Instrument Pet Tool
Orthopedic Electric Bone Drill Medical Veterinary Bone Drill Orthopedic Power Surgery Instrument Pet Tool
Orthopedic Electric Bone Drill Medical Veterinary Bone Drill Orthopedic Power Surgery Instrument Pet Tool

Orthopedic Electric Bone Drill Medical Veterinary Bone Drill Orthopedic Power Surgery Instrument Pet Tool

Send Inquiry

Product Description

Product Overview

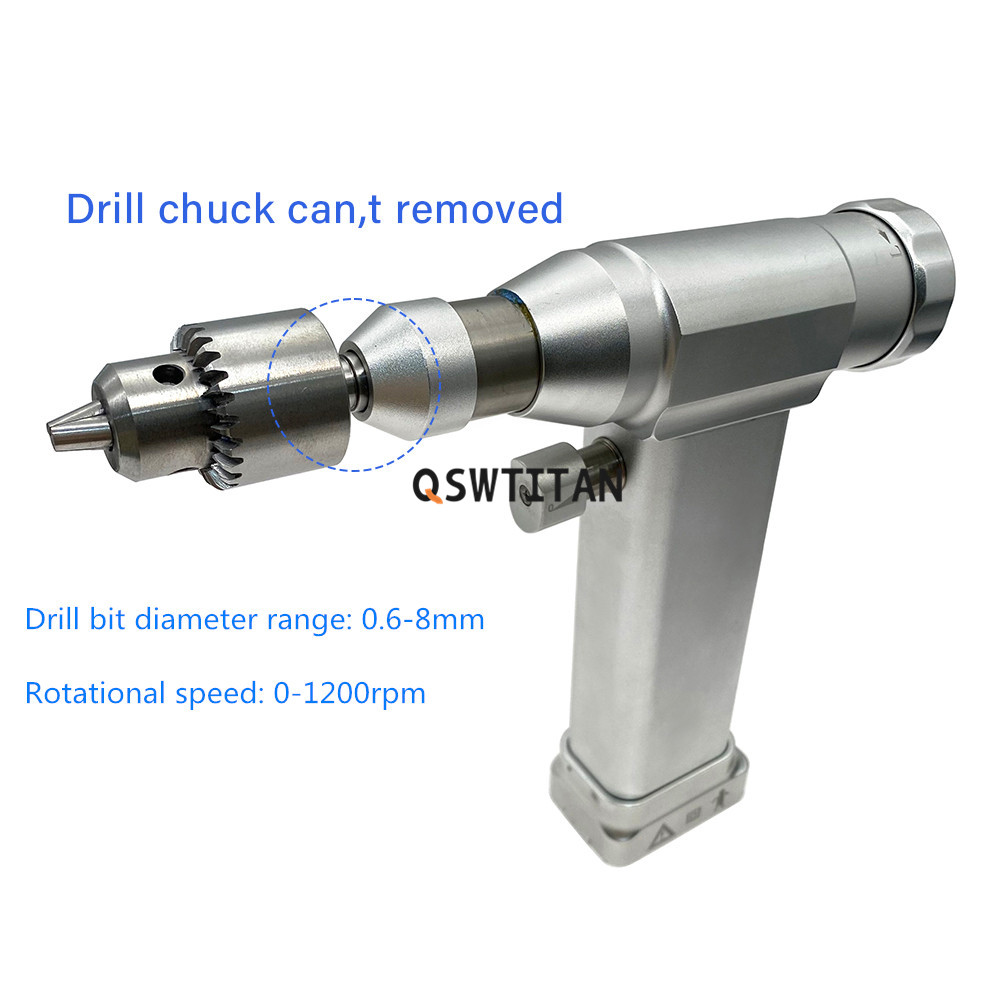

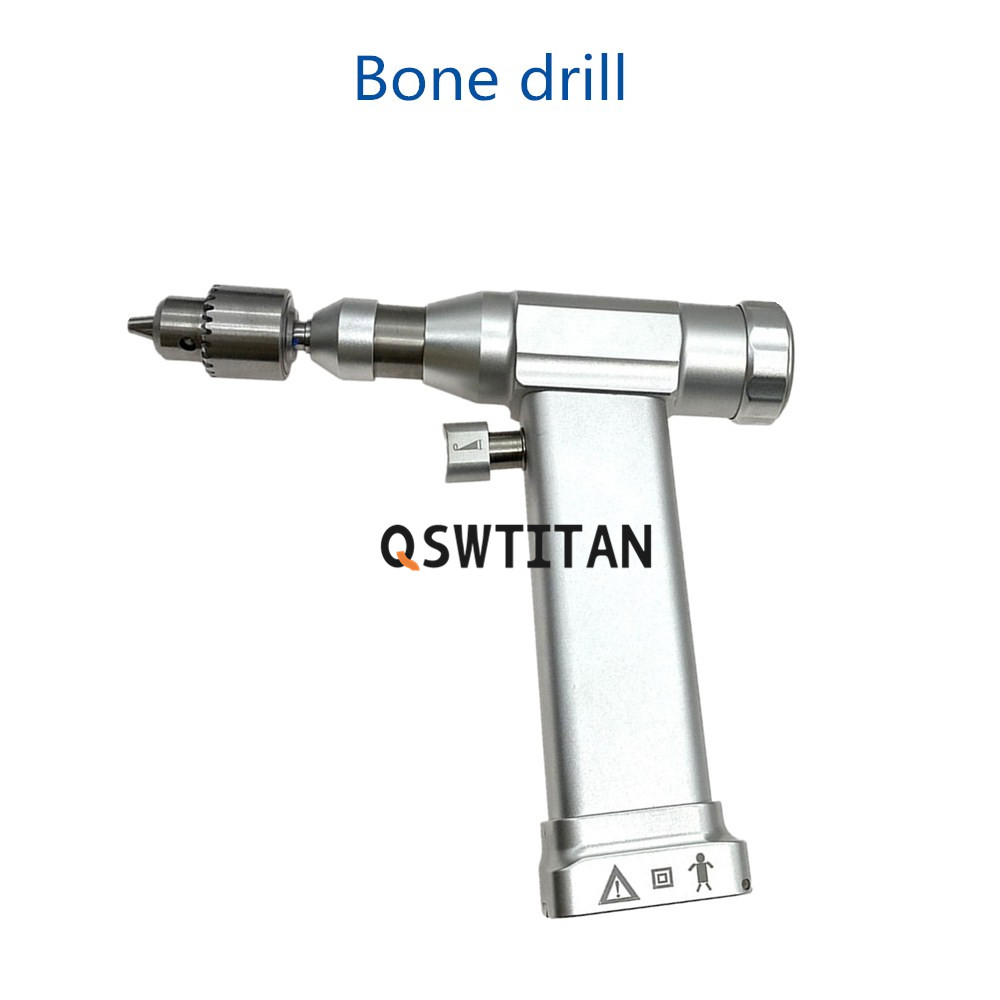

Orthopedic Electric Bone Drill

High-performance medical and veterinary orthopedic power surgery instrument tool designed for precision and durability during surgical procedures.

Technical Parameters
Product nameOrthopedic Bone Drill
Speed0-1200RPM
Operation voltage14.4V
Noise≤65 dB
Torque≥0.75 Newton/m
Battery capacity1800mA
Charger Input VoltageAC 220V, 50Hz or 110V, 60Hz
Host temperature rise≤ 25°C
Charger Output Power14.4V, 900mA
Sterilization135°C
Clamping range0.6-8mm
Charging Time2.5-3 Hours

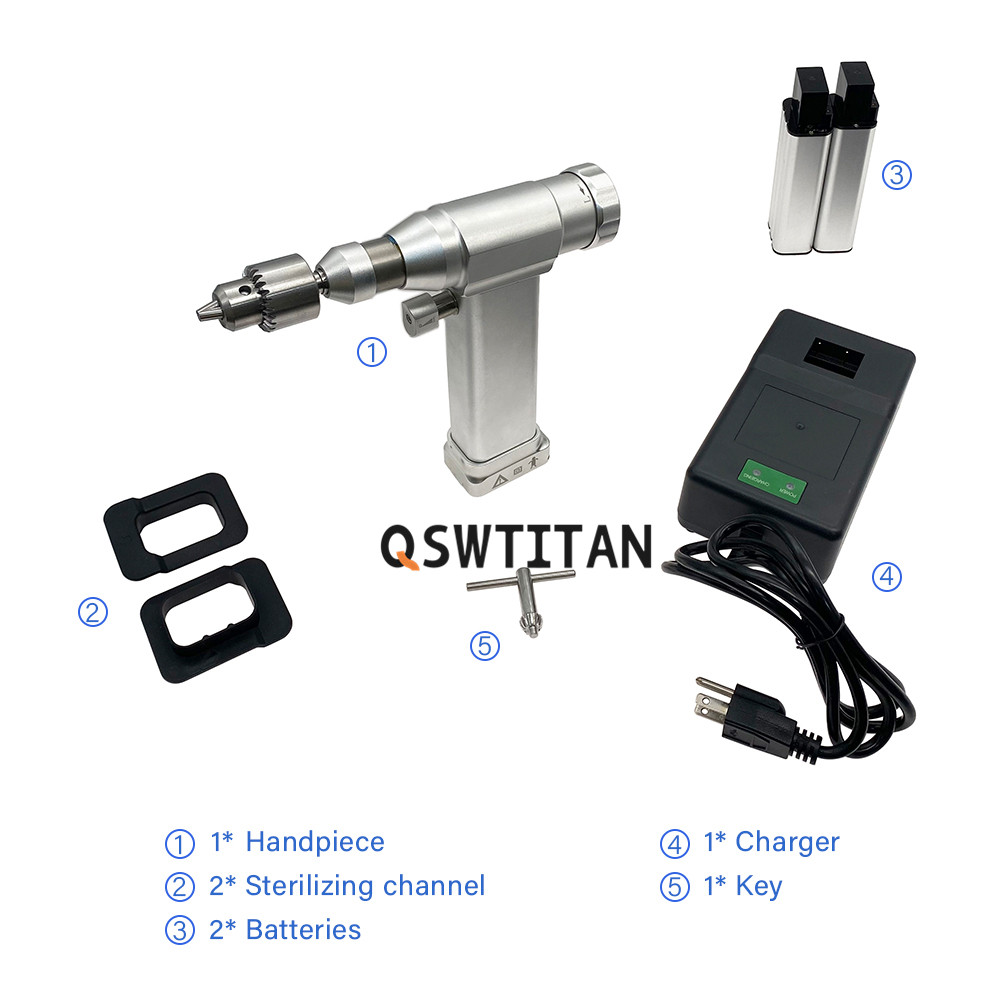

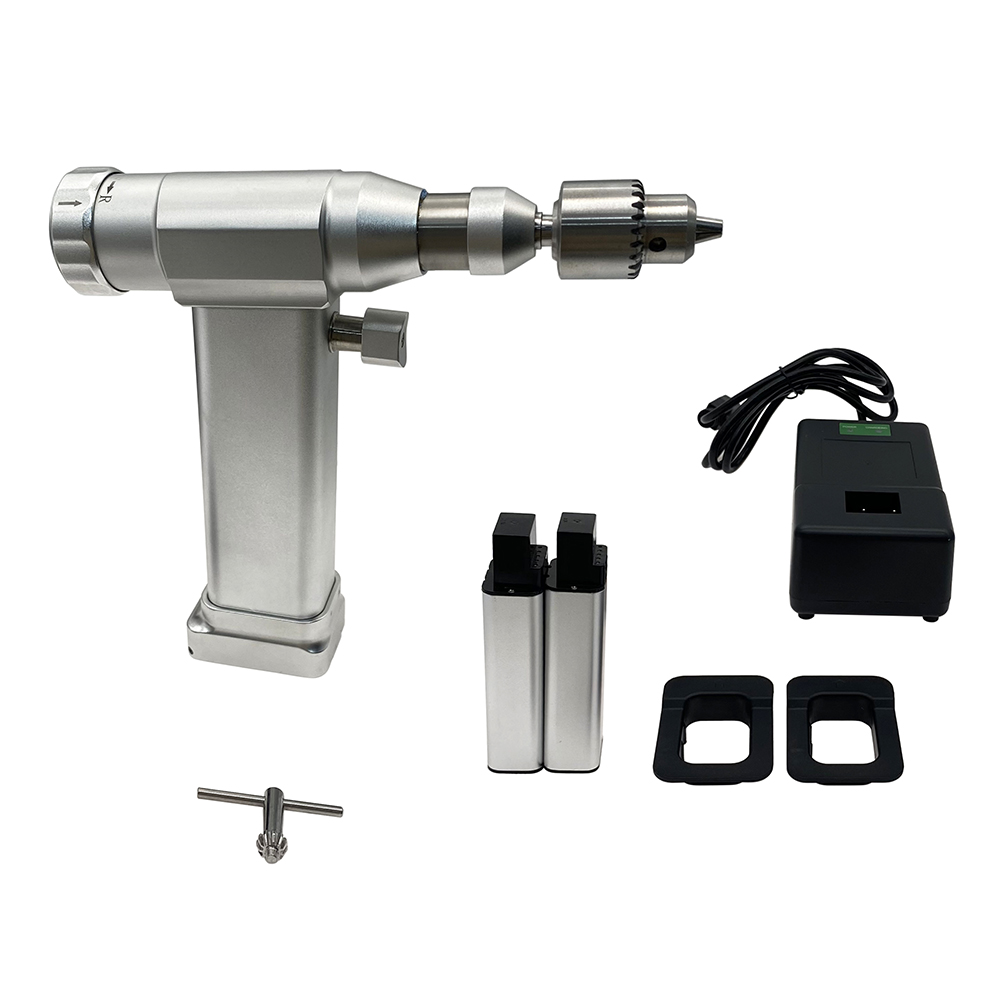

Standard Configuration
1 Handpiece
2 Sterilizing channel
1 Drill chuck
2 Batteries
1 Charger
1 Aluminum box or Sterilizing case

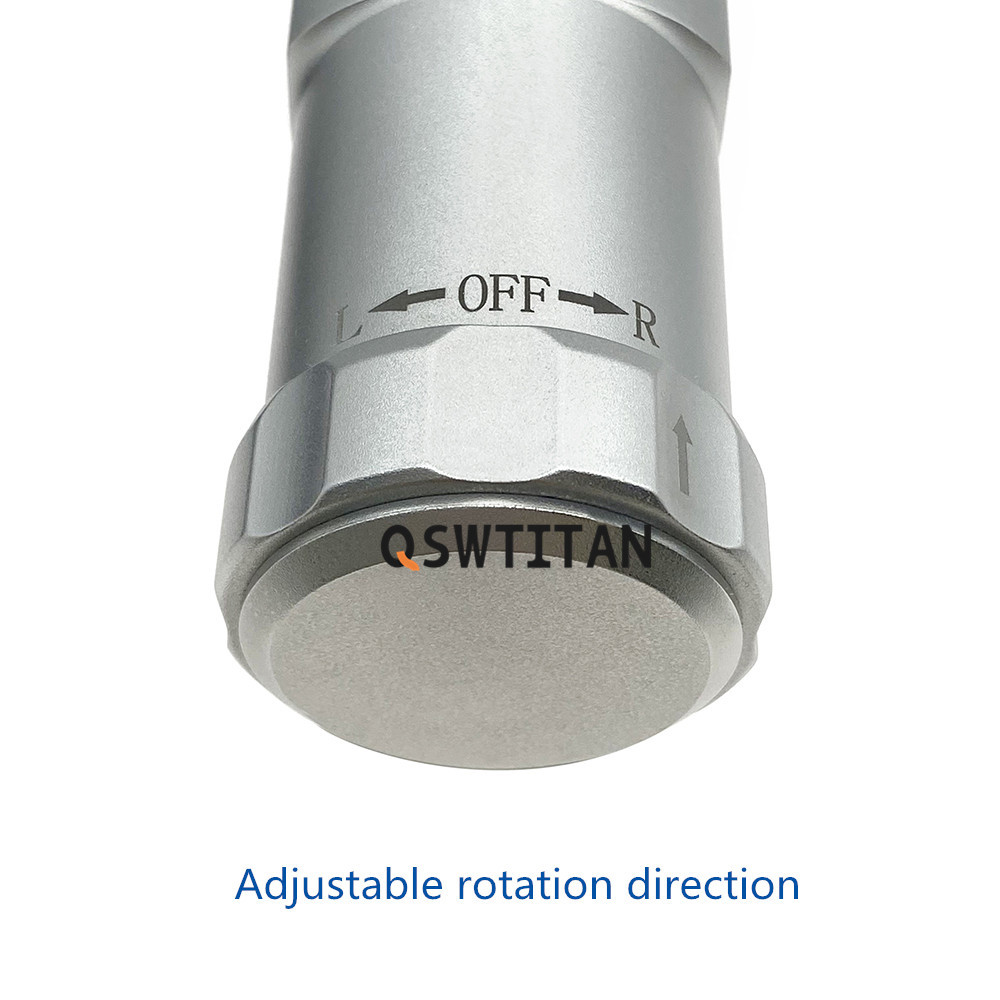

Detailed Product Images

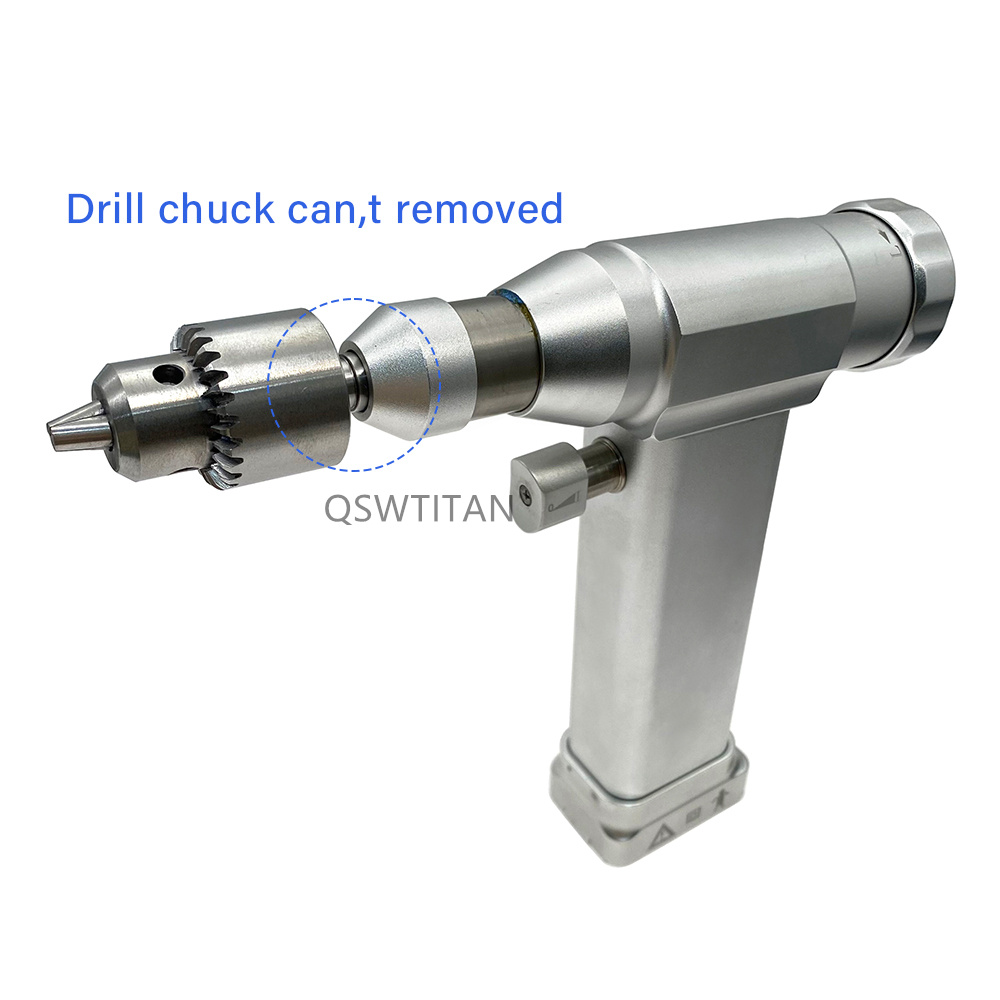

Bone Drill Detail 1
Bone Drill Detail 2
Bone Drill Detail 3
Bone Drill Detail 4
Bone Drill Detail 5
Bone Drill Detail 6
Storage Options
We offer two types of carrying cases for professional needs:

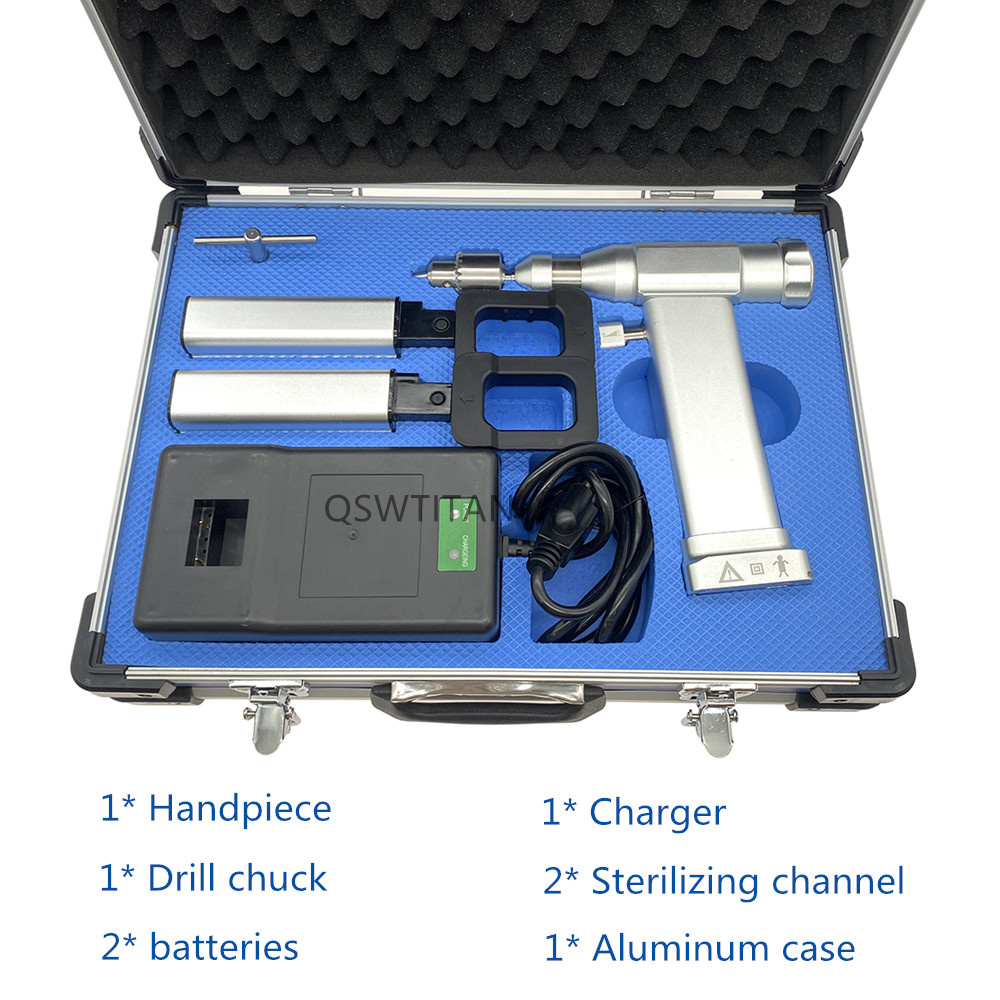

Type One: Aluminum Case

Aluminum Case

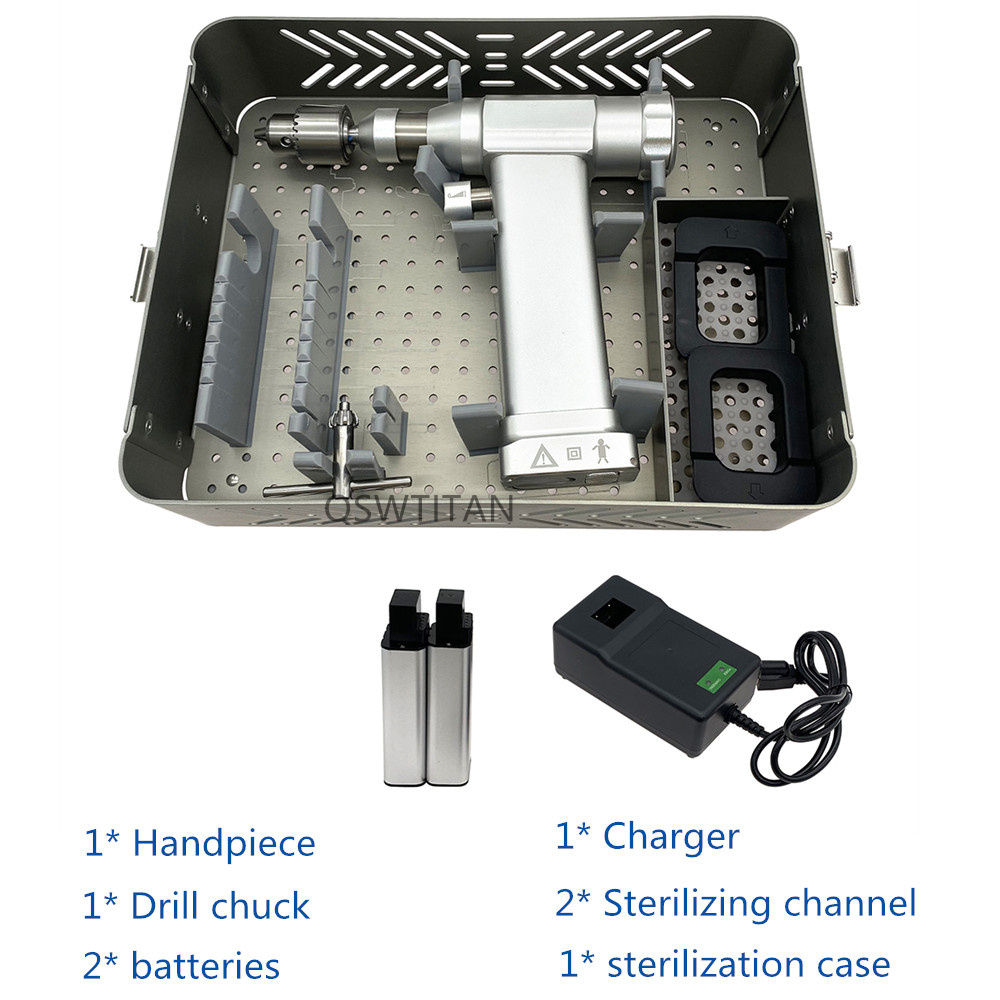

Type Two: Sterilization Case

Sterilization Case
Case Detail 1
Case Detail 2
Attention: Manual measurement, please allow a small amount of measurement error (within 5mm).
Packaging & Shipping
Packaging
Manufacturing Excellence
Factory 1
Factory 2
Certificate 1
Process 1
Process 2
Showroom
Testing
Production Line
Quality Control
Facility
Workshop
Service
Frequently Asked Questions
What is the maximum sterilization temperature for this bone drill?
The handpiece and relevant components are designed to withstand high-temperature sterilization up to 135°C.
Does the standard configuration include batteries?
Yes, the standard package includes two 1800mA batteries and one charger to ensure continuous surgical operation.
Is this drill suitable for both human medical and veterinary use?
Yes, it is a professional-grade orthopedic power tool suitable for both medical orthopedic surgery and veterinary procedures.
What is the speed range and can it be adjusted?
The drill features a variable speed range from 0 to 1200 RPM, allowing for precise control depending on the surgical requirement.
How long does it take to fully charge the battery?
A full charge typically takes between 2.5 to 3 hours using the provided 14.4V charger.
What is the clamping range of the drill chuck?
The drill chuck has a clamping range of 0.6mm to 8mm, accommodating a wide variety of drill bits.
