Multifunctional Orthopedic Power Bone Drill Electric Drills Pet Orthopedics Surgical Instruments
Multifunctional Orthopedic Power Bone Drill Electric Drills Pet Orthopedics Surgical Instruments
Multifunctional Orthopedic Power Bone Drill Electric Drills Pet Orthopedics Surgical Instruments
Multifunctional Orthopedic Power Bone Drill Electric Drills Pet Orthopedics Surgical Instruments
Multifunctional Orthopedic Power Bone Drill Electric Drills Pet Orthopedics Surgical Instruments
1 / 5
Multifunctional Orthopedic Power Bone Drill Electric Drills Pet Orthopedics Surgical Instruments
Multifunctional Orthopedic Power Bone Drill Electric Drills Pet Orthopedics Surgical Instruments
Multifunctional Orthopedic Power Bone Drill Electric Drills Pet Orthopedics Surgical Instruments
Multifunctional Orthopedic Power Bone Drill Electric Drills Pet Orthopedics Surgical Instruments
Multifunctional Orthopedic Power Bone Drill Electric Drills Pet Orthopedics Surgical Instruments

Multifunctional Orthopedic Power Bone Drill Electric Drills Pet Orthopedics Surgical Instruments

Send Inquiry

Product Description

Product Specification

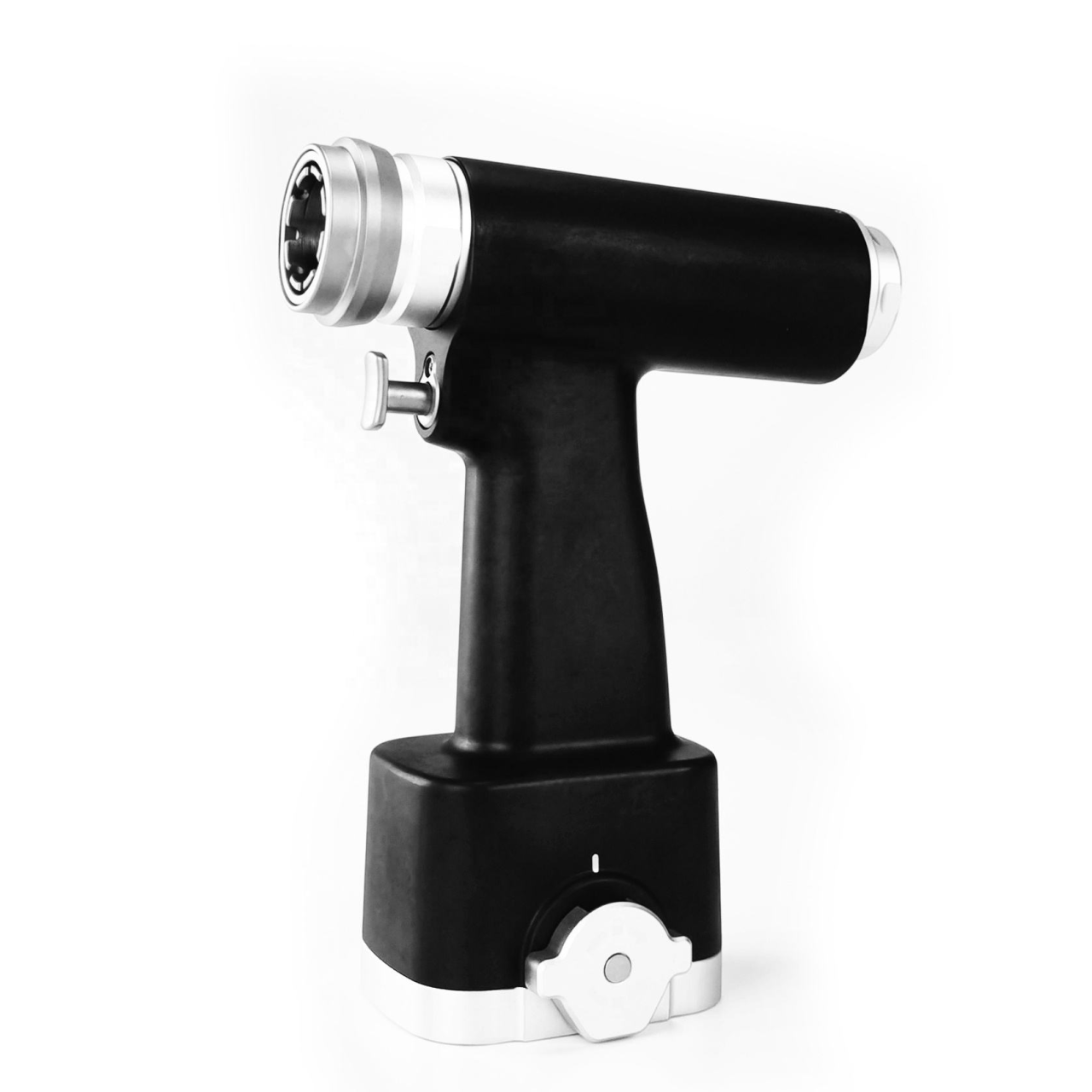

Product:Medical surgical electric portable bone drill
Main Material:Aluminum Alloy
MOQ:1 set
Application:Orthopedic Surgical Instruments
Bone drill speed:0-1300r/m
Cannulated drill speed:0-600r/m
Oscillating saw:0-18000osc/m
Acetabular bone drill:0-300r/m
Craniotomy drill:0-900r/m
Sternum saw:0-15000osc/m
Saw non-load noise:75dB
Drill non-load noise:65dB
Diameter run-out:0.5mm
Oscillations:0-15000r/min
NOTE: Only include one pc adapter, it uses for NM500 host.
Technical Merits
CE, ISO & SGS Approved quality certification.
Mainframe is made of Stainless Steel, durable with long working time.
Imported quick chuck ensures outstanding performance during operation.
Sternum saw: 360° rotating head and blade guard protect soft tissue.
Craniotomy mill: 40,000 r.p.m rates for fast, efficient, and safe processes.
Oscillating saw: 360° rotating head with wrenchless collect for safe loading.
Reamer: High-torque, ideal for acetabulum or medullary operations.
Wire and pin chuck: 4.0mm diameter for intramedullary or Kirschner pins.
Cranial drill: Auto-pause ensures safety during neurosurgery perforation.
Highest quality multifunctional surgical instrument system.
Perfect ergonomic design for surgeon comfort.
Versatile system meeting requirements for various surgical operations.

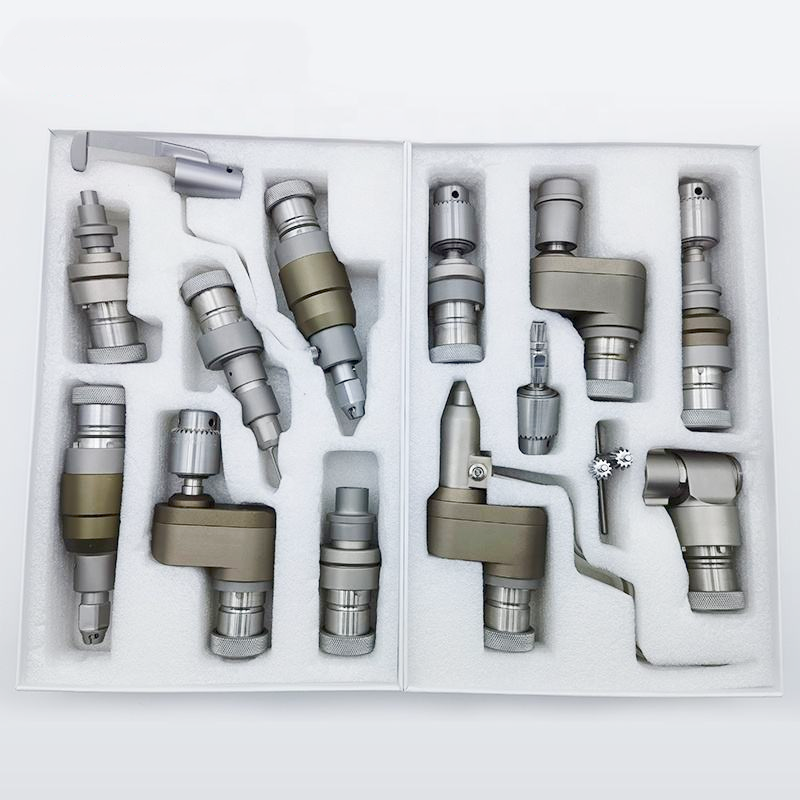

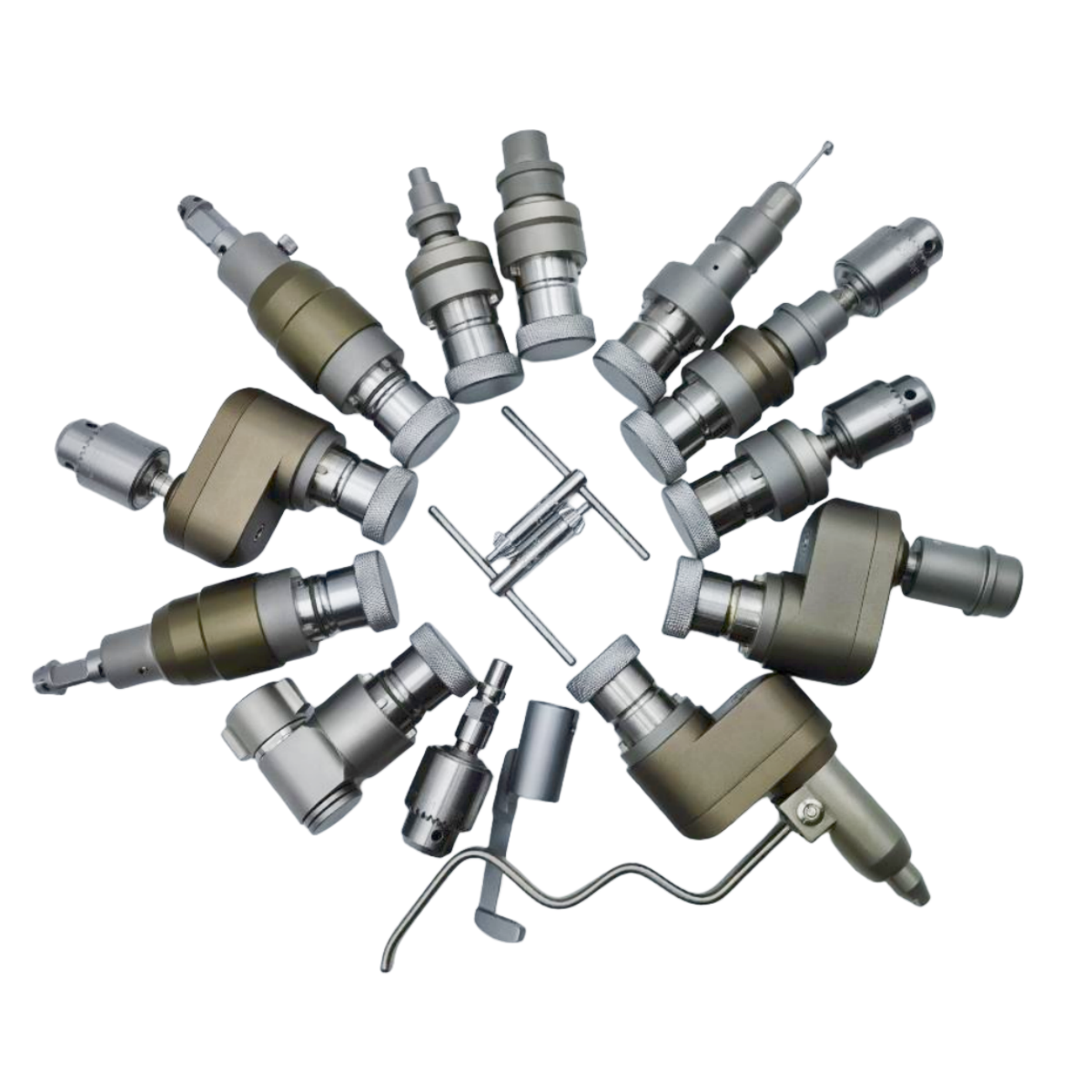

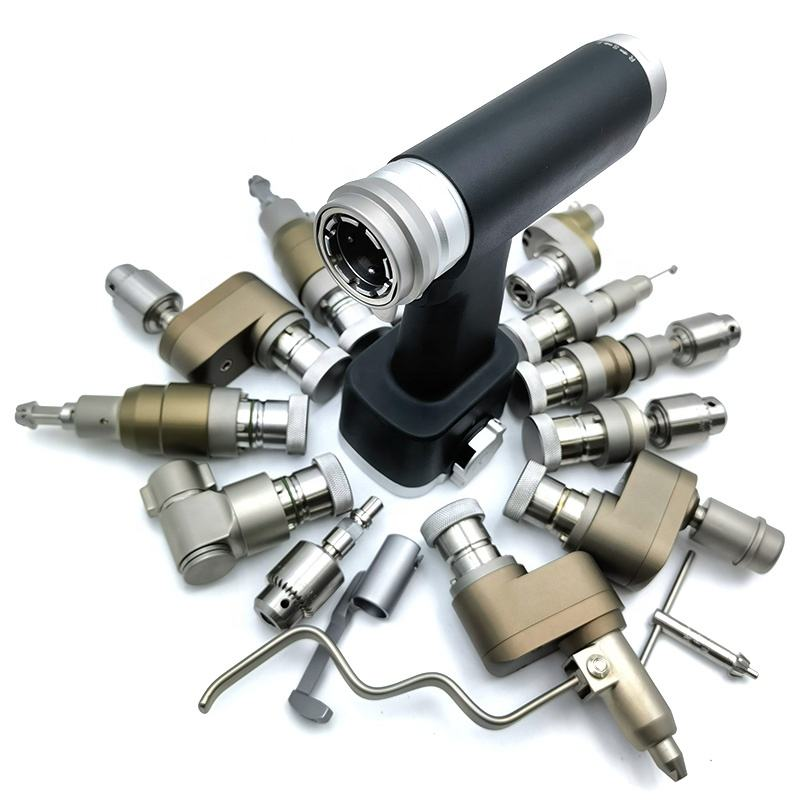

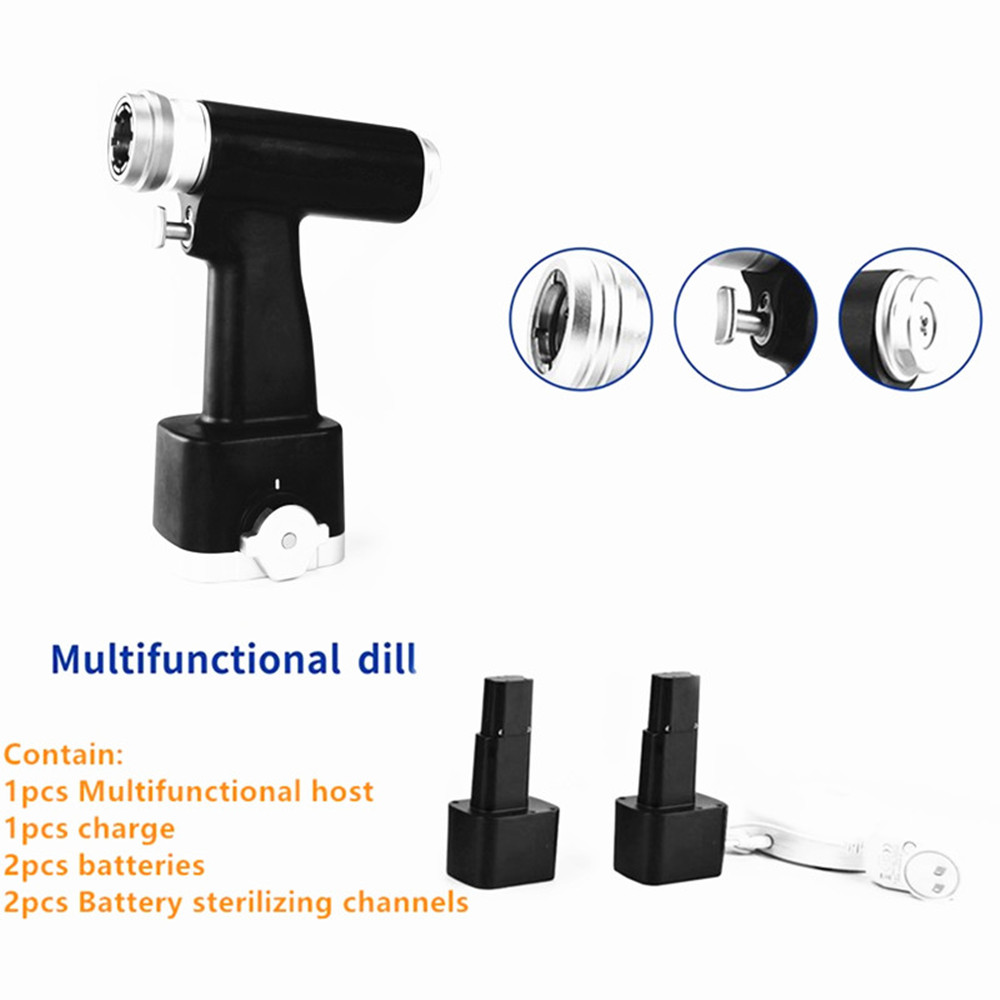

Product Display
Packaging Options

Two choices available: Aluminum box or Sterilized box. Please specify before ordering.

With Aluminum Case

With Sterilizer Box

Application Scenes
Frequently Asked Questions
1. What materials are used in the construction of this surgical drill?
The mainframe is constructed from high-quality Stainless Steel for durability and hygiene, while the main body material includes premium Aluminum Alloy for a lightweight, portable design.
2. How does the cranial drill ensure patient safety during neurosurgery?
The cranial drill is equipped with an auto-pause feature that automatically stops perforation once it passes through the bone, ensuring maximum safety during delicate neurosurgical procedures.
3. Can the oscillating saw be used in different surgical angles?
Yes, the oscillating saw features a 360° rotating head, allowing it to be applied effectively to any surgical site. It also uses a wrenchless collect for fast and safe blade changes.
4. What are the noise levels of the drill and saw during operation?
The drill operates at a non-load noise level of 65dB, and the saw operates at 75dB, ensuring a relatively quiet surgical environment.
5. Is this instrument compatible with different types of pins and wires?
Yes, the wire and pin chuck has a 4.0mm cannula diameter, making it suitable for various intramedullary pins or Kirschner pin fixing operations.
6. What certifications does this product hold?
This medical surgical instrument is CE, ISO, and SGS approved, meeting international standards for quality and safety in medical devices.
