Multi Function Power Tools HAS-B100 for Veterinary
Technical Parameters
| Parameter |
Data |
| Speed | 0-1200rpm |
| Torque | 2.9N.m |
| No-load Noise | ≤45dB |
| Operation(V) voltage | 7.2V |
| Sterilization temperature | 155° |
| Radial circle run-out | ≤0.1mm |
| Axial Movement | ≤0.5mm |
| Chuck gripper diameter | ≤4mm |
| Oscillations | 0-16000cpm |
| Battery Capacity | 1400mAh |

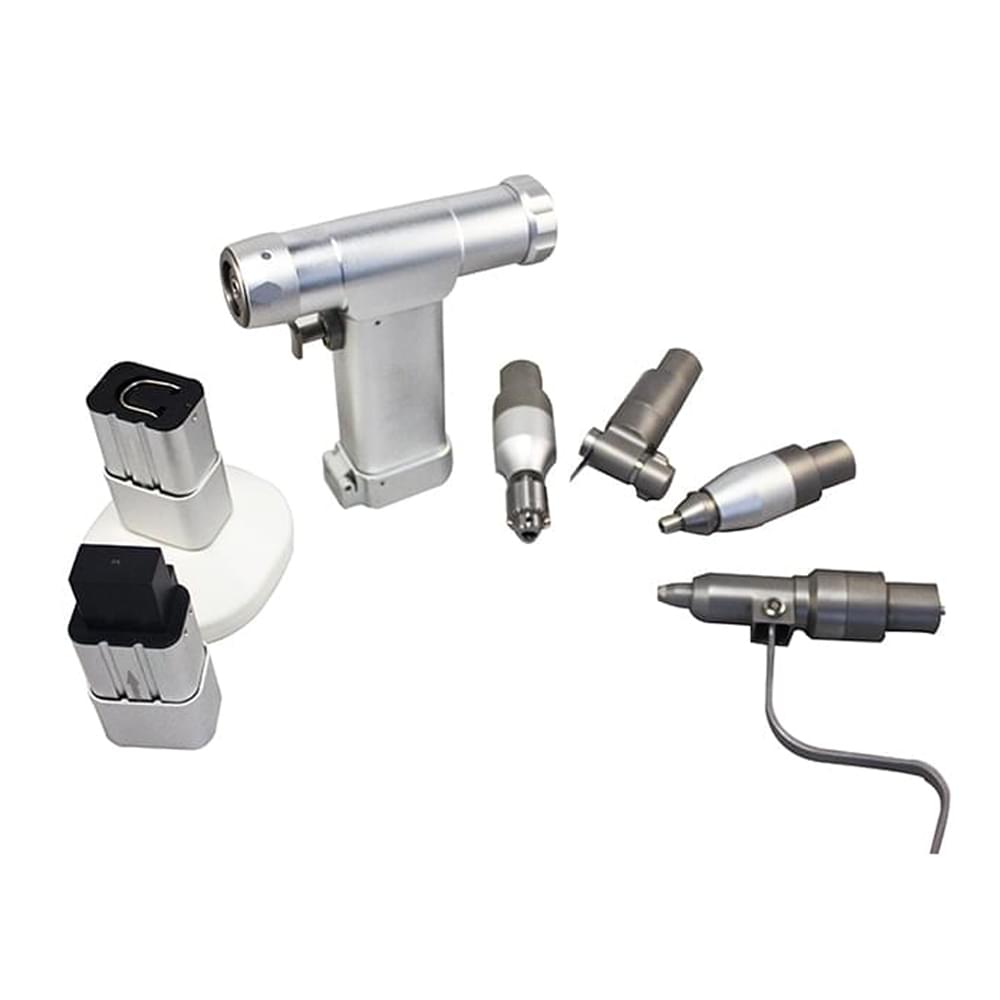

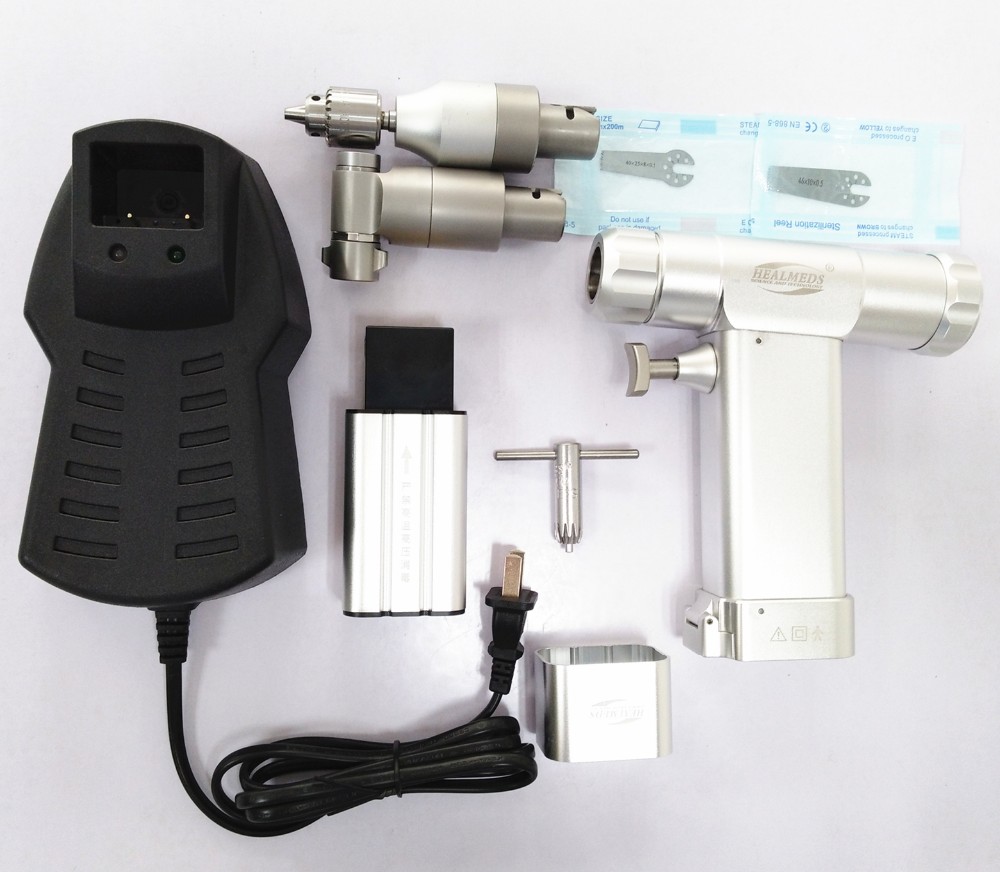

Standard Configuration & Accessories
| No. |
Accessory |
Qty. |
Note |

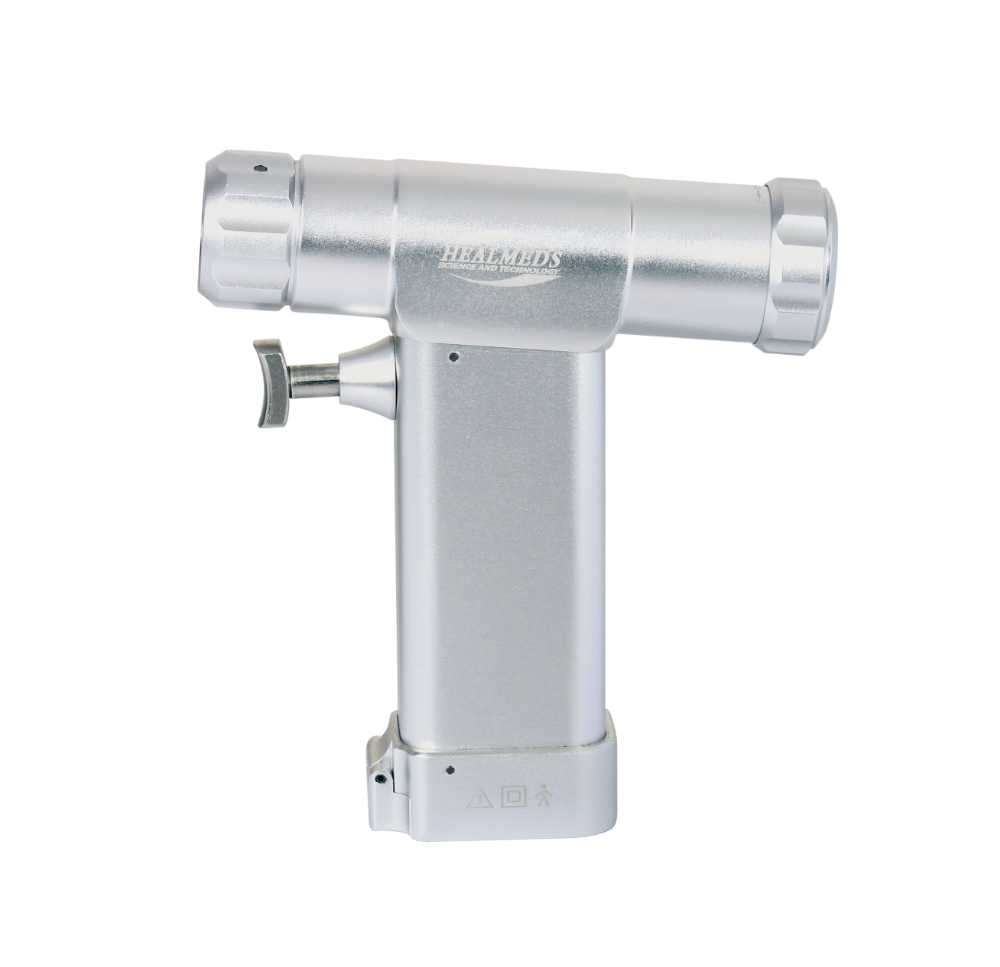

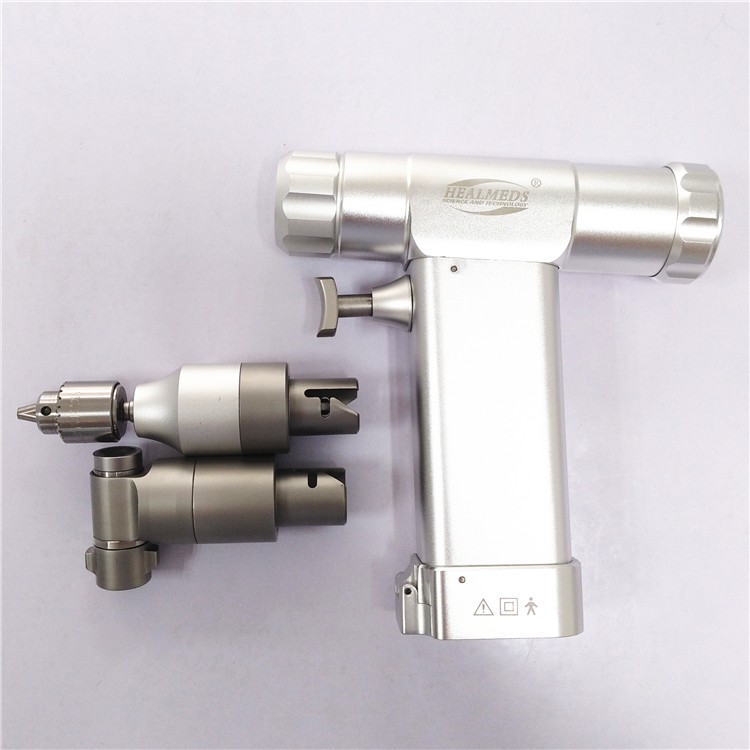

| 1 | Handpiece | 1 | 1.02kg, autoclavable up to 135℃ |

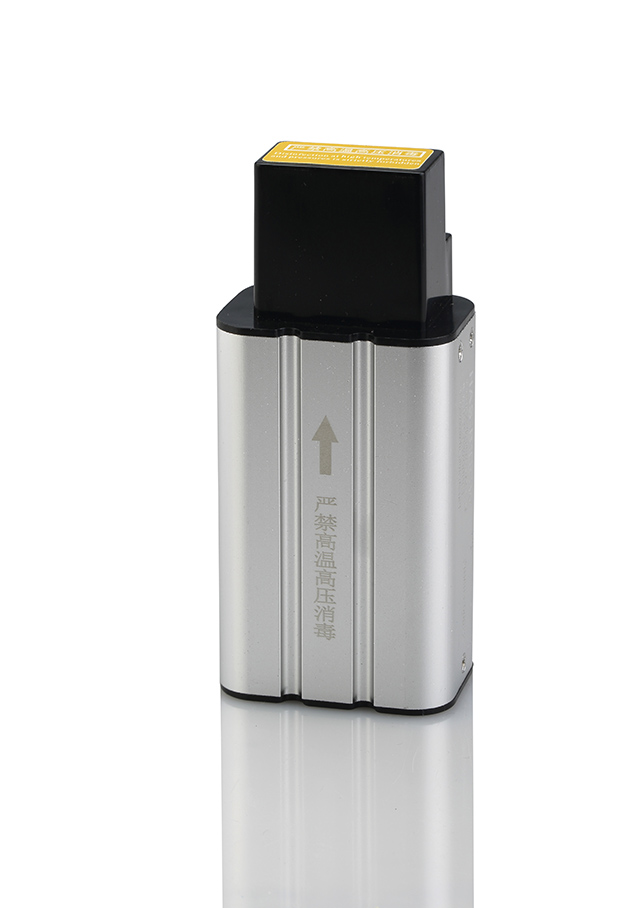

| 2 | Battery | 2 | Could last for 30 mins after full charge |
| 3 | Charger | 1 | 110-220V, European & American type |

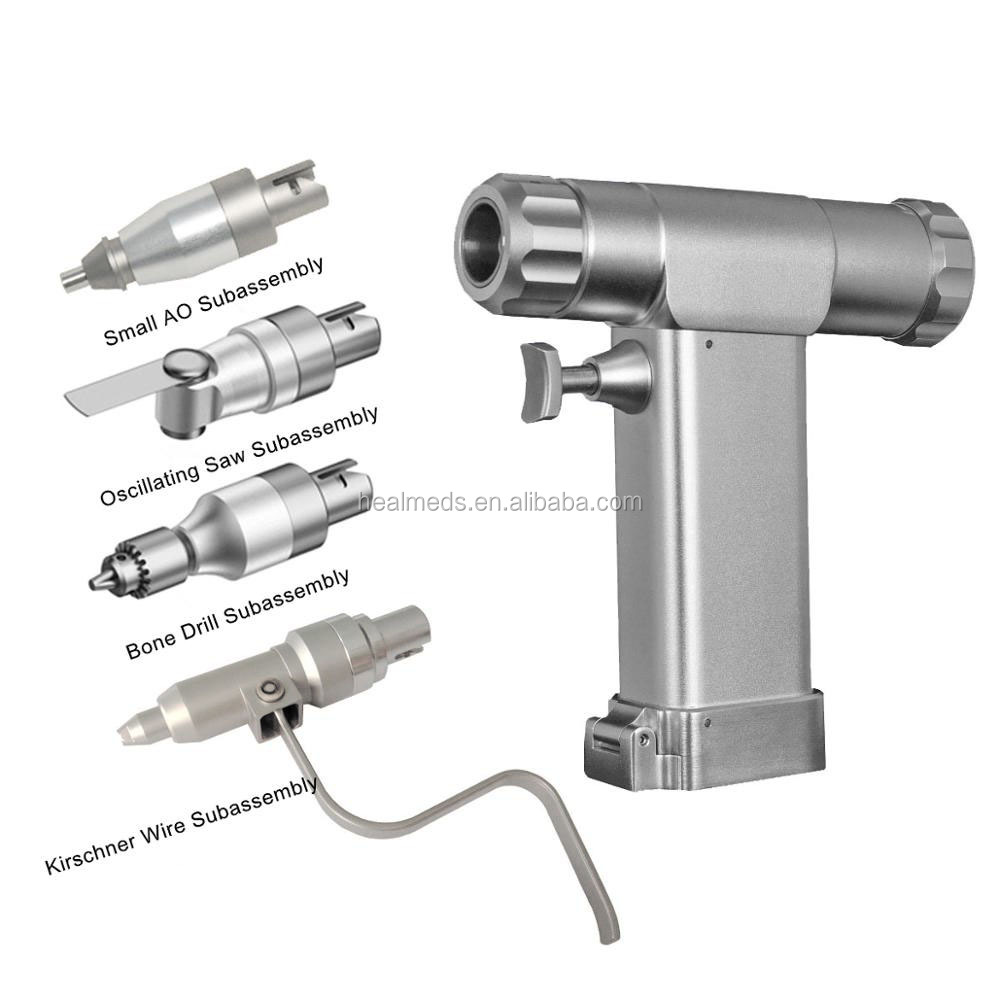

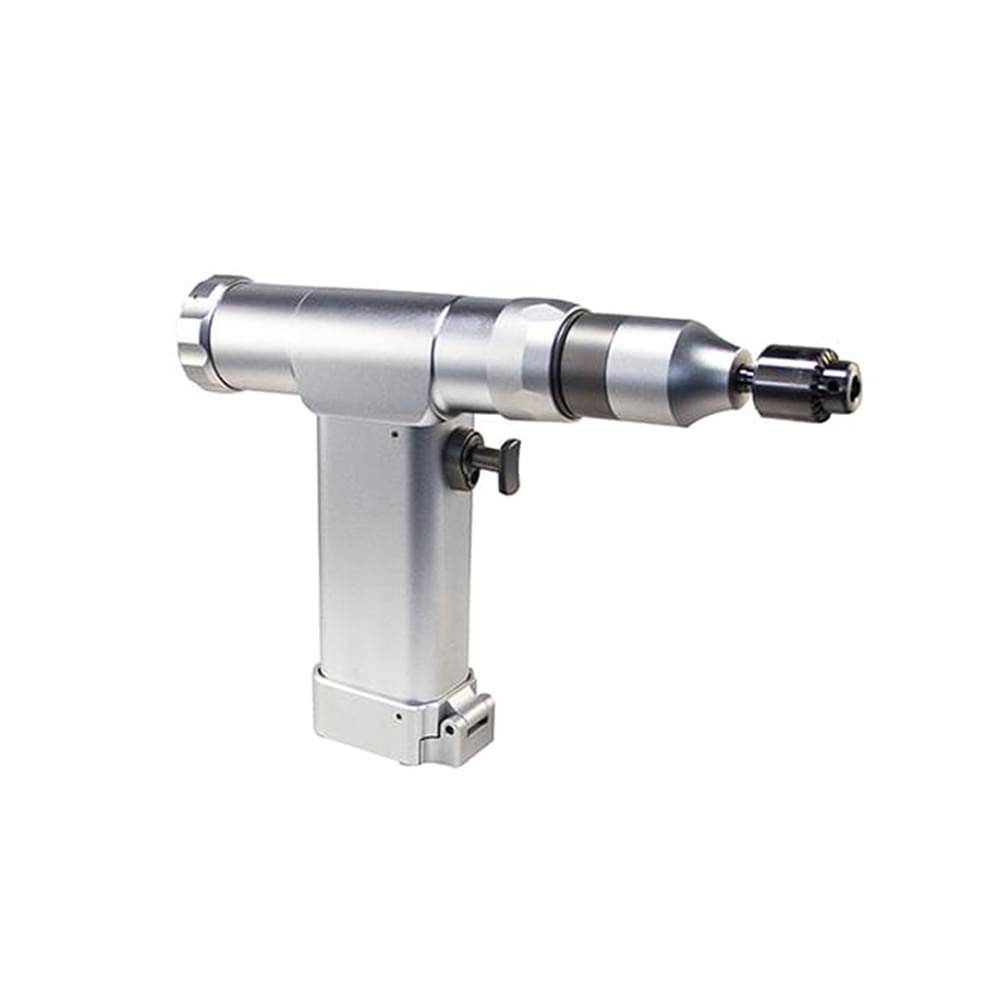

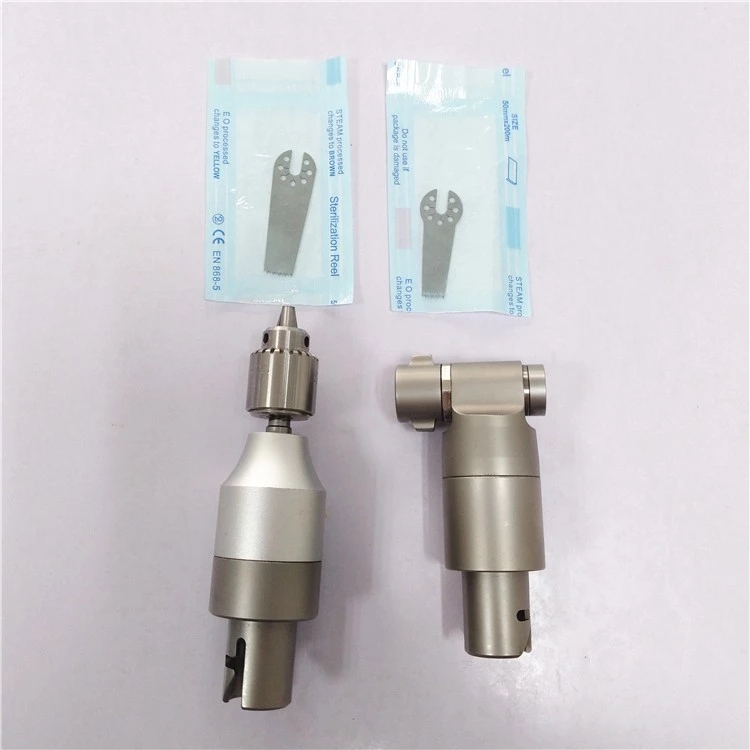

| 4 | Drill chuck | 1 | Imported, high Coaxiality |
| 5 | Oscillating Saw | 1 | Used for joint surgeries |
| 6 | Blade | 2 | 7 stars blades with optional sizes |

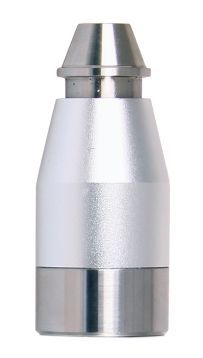

| 7 | Small AO | 1 | For drilling holes and fixing plates |
| 8 | K-Wire | 1 | Holding K-wire conveniently |
| 9 | Sterilizing channel | 1 | Could be sterilized |
| 10 | Aluminum case | 1 | 445*270*150mm, Weight: 6kg |
*Price range is just for reference. It depends on choices for attachments.
Warranty & Maintenance Notes
🛡️
Warranty: 1 year for whole machine, 2 years for motor, 3 months for battery and fast consumption items.
⚠️
Sterilization: Temperature ≤ 135 °C (Improved type ≤ 155 °C). Exceeding this may damage the motor.
⚡
Battery Care: Battery cannot be sterilized. Remove battery after surgery to prevent automatic discharge and prolong life.
🔧
Drill Bits: Normal bone drill holds bits < 6mm. Acetabulum reaming drill (300 rpm), Canulate drill (600 rpm).
💧
Cleaning: Wash cranial bur right after surgery. Ensure battery space in handpiece remains dry after sterilization.
✂️
Blade Usage: Suggested for single surgery use as medical stainless steel is flexible and subject to wear.
Frequently Asked Questions (FAQ)
Q1: What is the maximum sterilization temperature for the HAS-B100?
A: The standard sterilization temperature should be ≤ 135 °C. For the improved type, it can reach up to 155 °C. Exceeding these limits may damage the motor.
Q2: Can the batteries be put into an autoclave for sterilization?
A: No, the batteries are not autoclavable and cannot be sterilized. They should be removed from the handpiece before the sterilization process.
Q3: How long does the battery last on a single charge?
A: Each battery has a capacity of 1400mAh and can last for approximately 30 minutes of continuous use after being fully charged.
Q4: What is the warranty period for this multifunctional power tool?
A: We provide a 1-year warranty for the whole machine, a 2-year warranty for the motor, and a 3-month warranty for batteries and other fast-consumption items.
Q5: What should I do if blood gets into the cranial bur?
A: The cranial bur must be washed immediately after surgery using a purger to prevent blood from sticking. It is essential to ensure the component stays dry.
Q6: What size drill bits are compatible with the bone drill?
A: The normal bone drill is designed to hold drill bits with a diameter of less than 6mm.
