Product Description

Product Overview

Electric Orthopedic Drill - Mini Medical Bone Drill designed for precision orthopedic procedures. This high-performance orthopedic instrument is part of our advanced orthopedic power tools range, fully autoclavable and built for durability in clinical environments.

Technical Parameters
Product nameMini Bone Drill

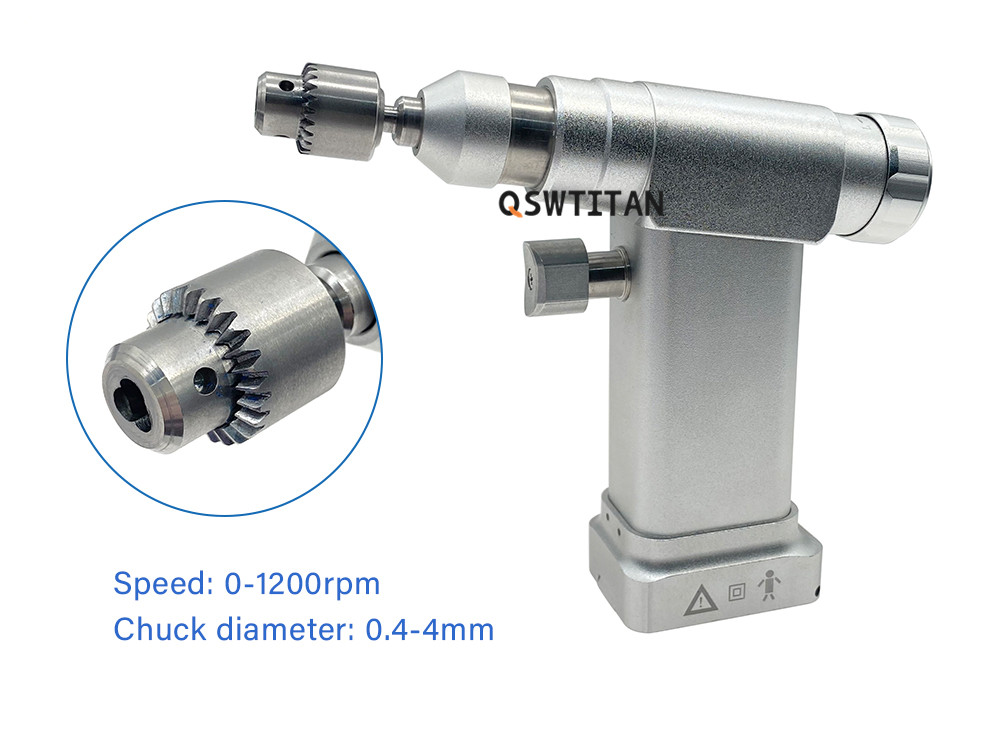

Speed0-1200RPM
Operation voltage7.2V
Noise≤63 dB
Torque≥0.75 Newton/m
Battery capacity1500mA
Power supply voltage220V±10% 50±H2%
Host temperature rise≤ 25°C
Output power≥80W
Sterilization135°C
Clamping range0.4-4mm

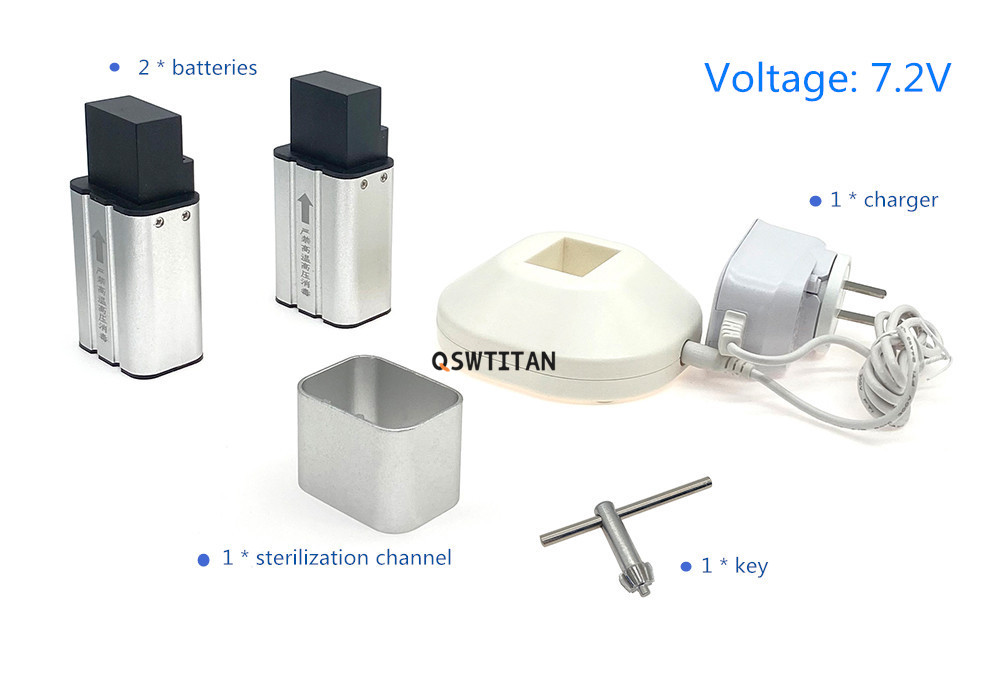

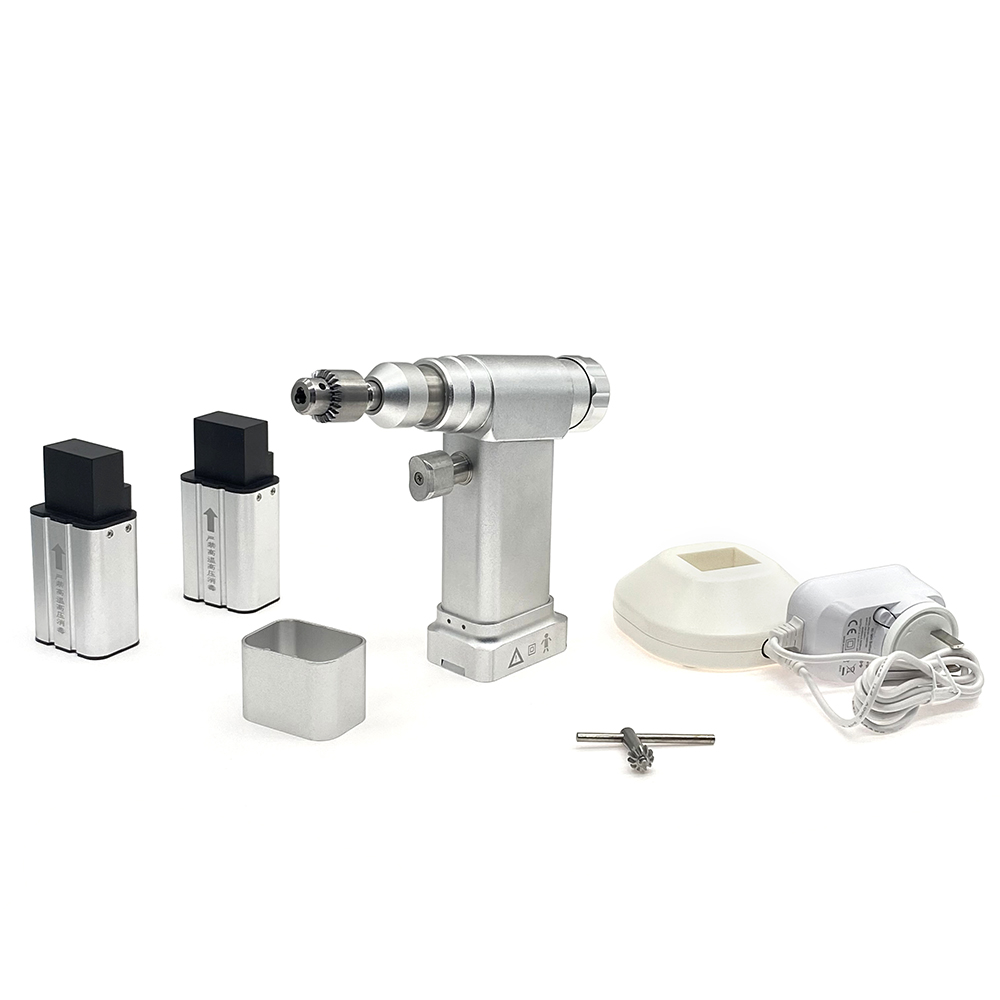

Standard Configuration
✔ 1 Handpiece
✔ 1 Sterilizing channel
✔ 1 Drill chuck
✔ 2 Batteries
✔ 1 Charger
✔ 1 Aluminum alloy box
Product Display

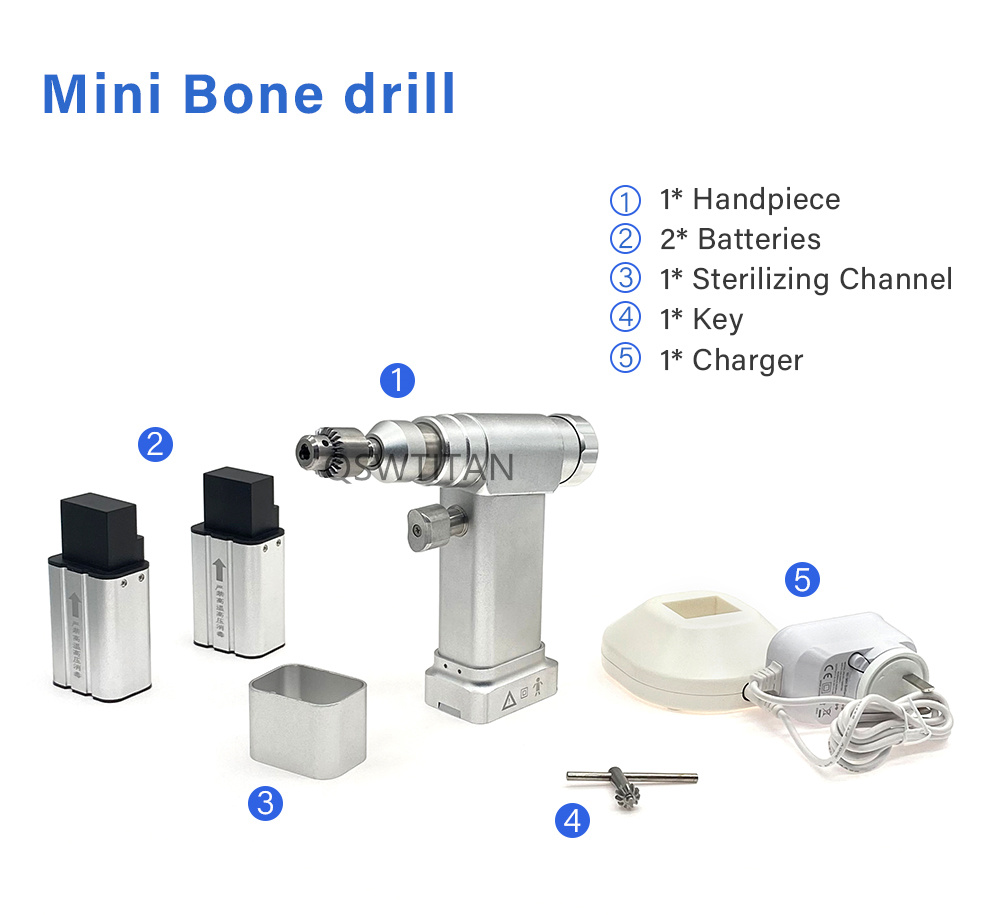

Mini Bone Drill

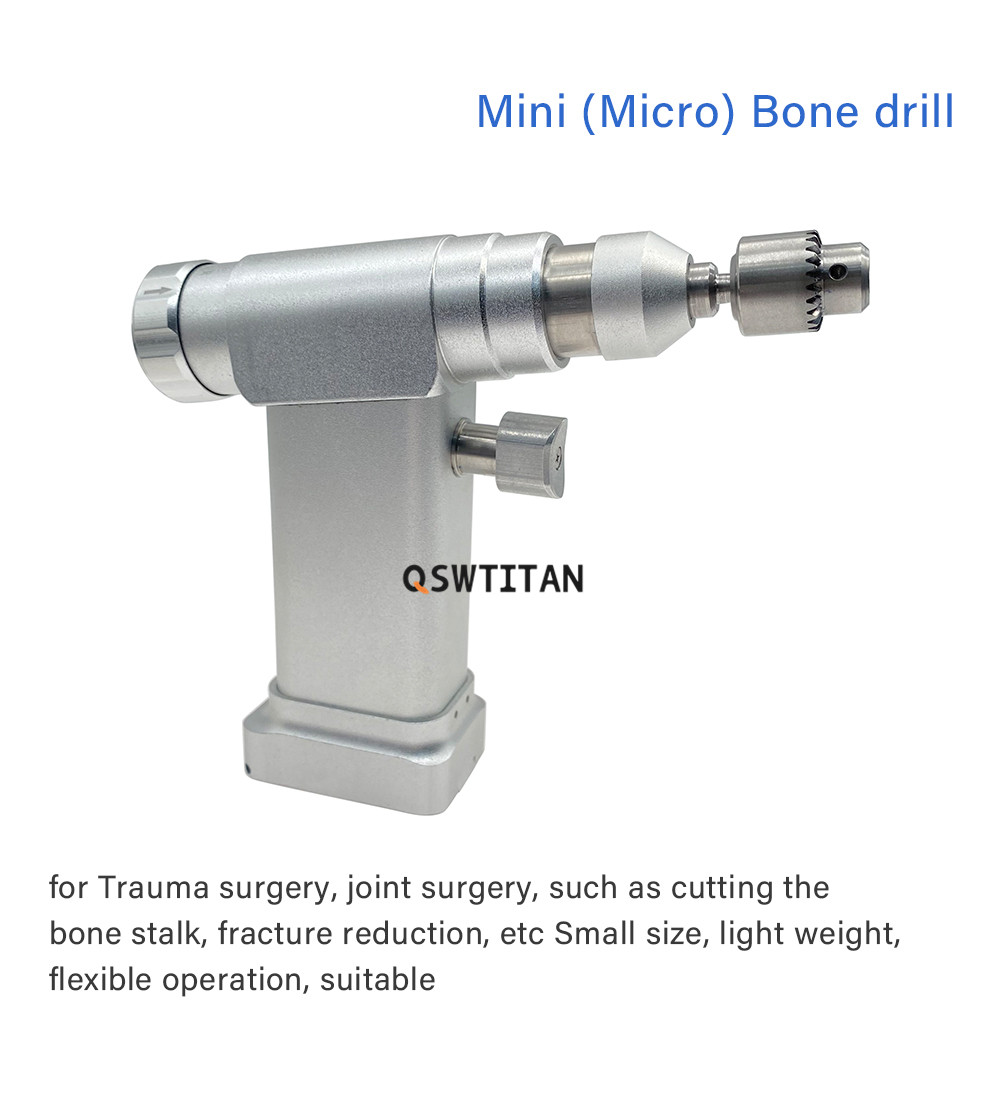

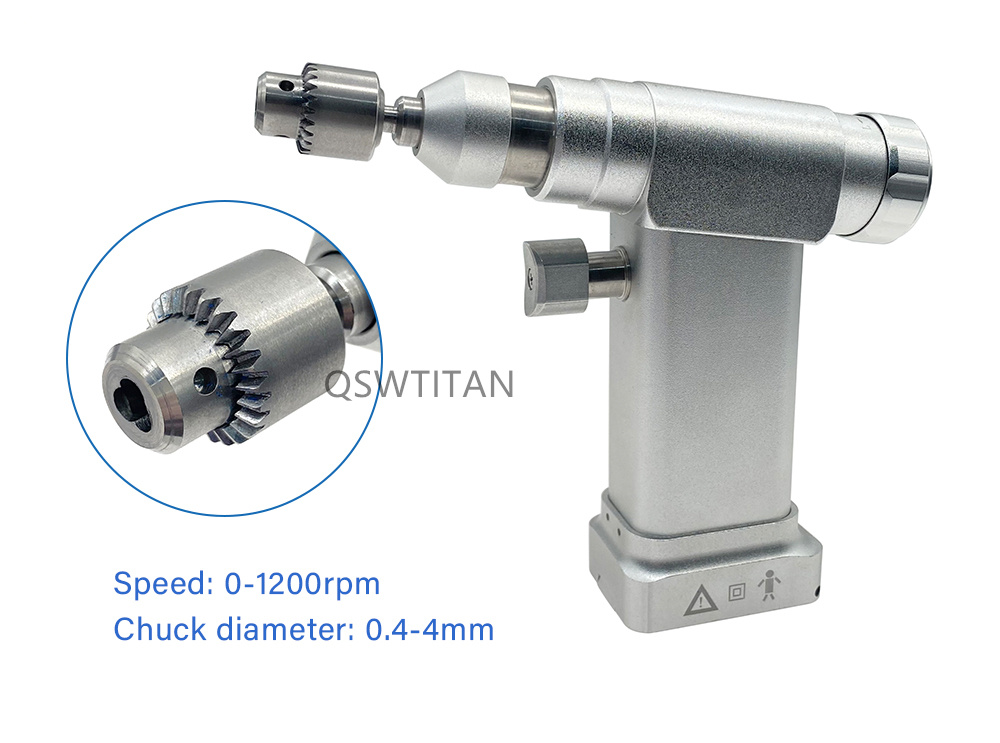

Electric Orthopedic Drill

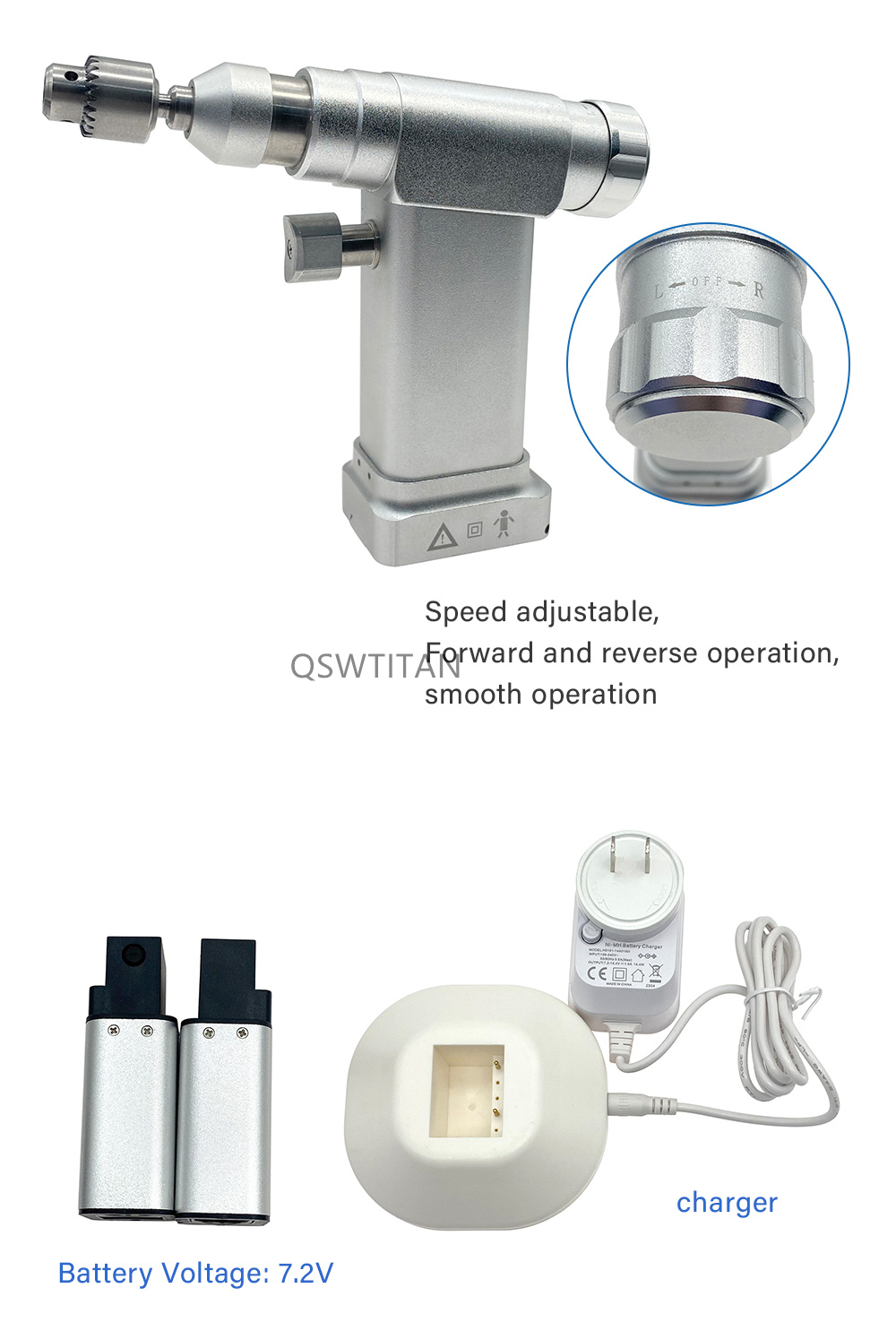

Surgical Instrument

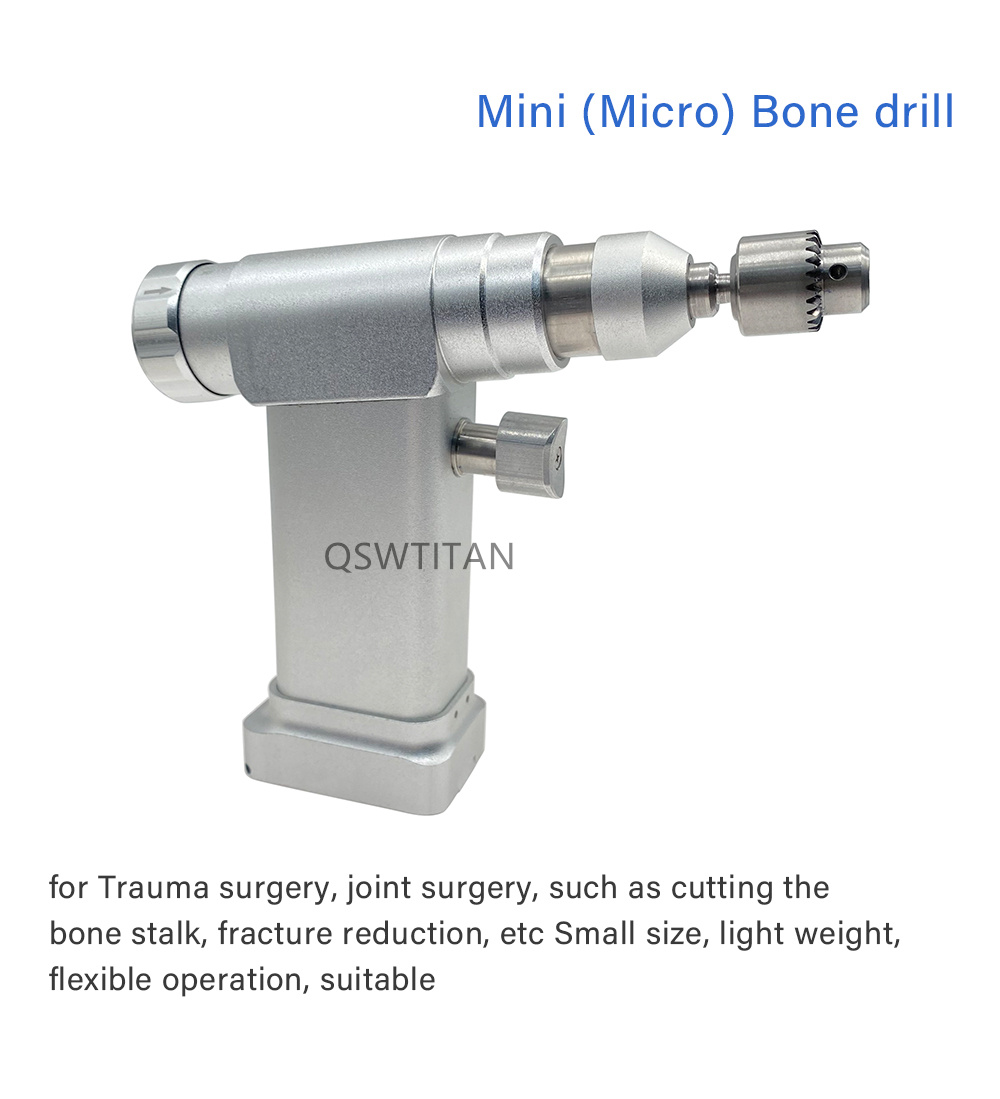

Orthopedic Power Tool

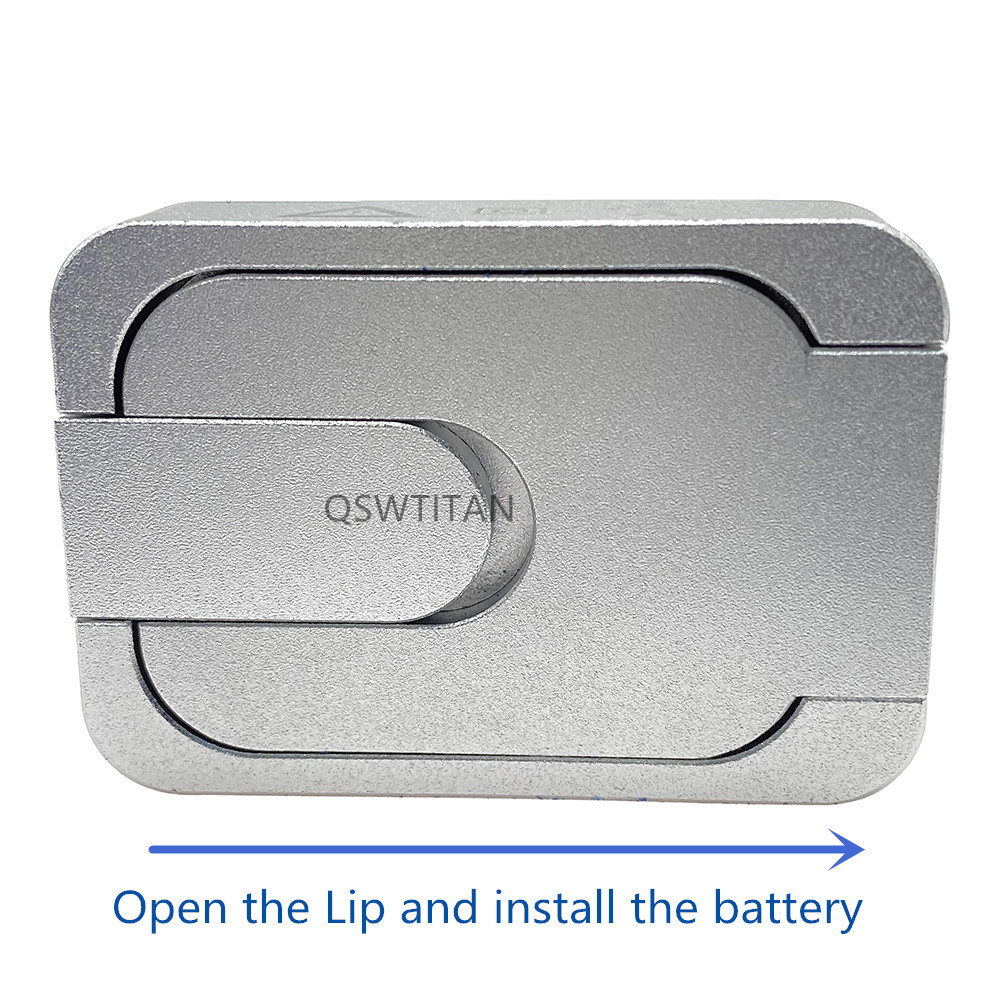

Mini Bone Drill Box

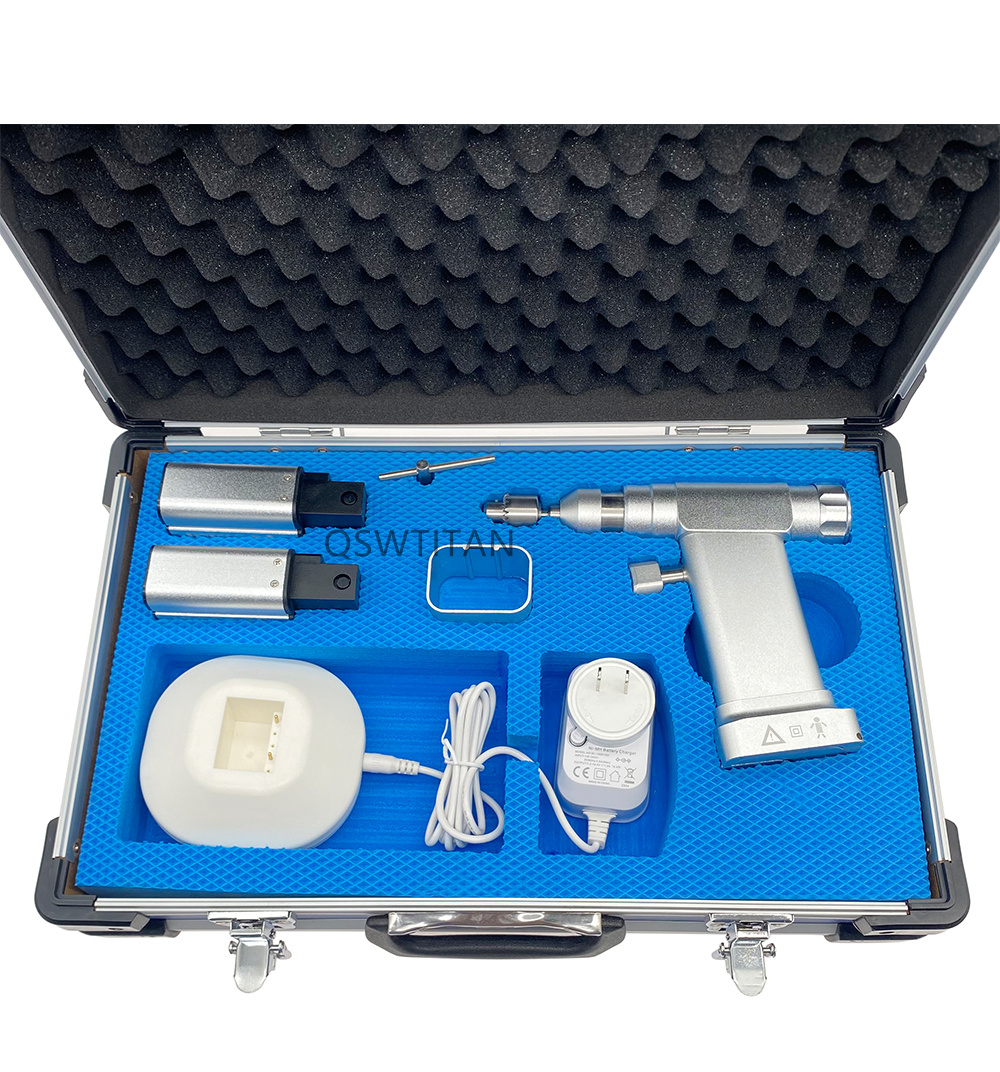

Medical Drill Components
Orthopedic Drill Set
Veterinary Surgical Tool
Note: Manual measurement, please allow a small measurement error of 5mm.
Packaging & Shipping
Packaging Details
Production & Quality Control
Production Facility
Workshop
Testing Equipment
Precision Machining
Inventory
Quality Inspection
Packaging Process
Shipping Prep
Product Unit
Professional Certification
Storage Area
Logistics
Frequently Asked Questions
Is this bone drill autoclavable?
Yes, the device is designed to be fully autoclavable at temperatures up to 135°C to ensure clinical sterility.
What is the range of the drill chuck?
The clamping range for this mini bone drill is 0.4mm to 4mm, making it versatile for various surgical needs.
How long does the battery last?
The drill comes with two 1500mA batteries. The high capacity ensures sufficient power for standard orthopedic procedures.
What is the maximum speed of the drill?
The speed is adjustable and ranges from 0 to 1200 RPM, allowing for precise control during surgery.
Is the noise level suitable for a surgical environment?
Yes, the operating noise is ≤63 dB, which complies with medical equipment standards to minimize distraction in the OR.
What is included in the package?
The standard set includes 1 handpiece, 1 sterilizing channel, 1 drill chuck, 2 batteries, 1 charger, and a protective aluminum alloy box.
