Micro Mini Orthopedics Canulated Drill Surgery Operated Drill for Hand Wrist and Feet Veterinary Surgery Drill
Micro Mini Orthopedics Canulated Drill Surgery Operated Drill for Hand Wrist and Feet Veterinary Surgery Drill
Micro Mini Orthopedics Canulated Drill Surgery Operated Drill for Hand Wrist and Feet Veterinary Surgery Drill
Micro Mini Orthopedics Canulated Drill Surgery Operated Drill for Hand Wrist and Feet Veterinary Surgery Drill
Micro Mini Orthopedics Canulated Drill Surgery Operated Drill for Hand Wrist and Feet Veterinary Surgery Drill
1 / 5
Micro Mini Orthopedics Canulated Drill Surgery Operated Drill for Hand Wrist and Feet Veterinary Surgery Drill
Micro Mini Orthopedics Canulated Drill Surgery Operated Drill for Hand Wrist and Feet Veterinary Surgery Drill
Micro Mini Orthopedics Canulated Drill Surgery Operated Drill for Hand Wrist and Feet Veterinary Surgery Drill
Micro Mini Orthopedics Canulated Drill Surgery Operated Drill for Hand Wrist and Feet Veterinary Surgery Drill
Micro Mini Orthopedics Canulated Drill Surgery Operated Drill for Hand Wrist and Feet Veterinary Surgery Drill

Micro Mini Orthopedics Canulated Drill Surgery Operated Drill for Hand Wrist and Feet Veterinary Surgery Drill

Send Inquiry

Product Description

📋 Specification
Product:Micro mini Cannulated drill
Main Material:Aluminum Alloy
MOQ:1 set
Application:Hand Wrist and Feet drill
Type:orthopedic micro surgery drill, Awl, or cannulated drill
Max. Drilling Diameter:1.8mm
No-Load Speed:1100 r.p.m
Drill type:Autoclavable
Diameter of drill chuck:0.6-6mm
No load speed:0-1100 rpm
No load noise:≤ 65dB (a)
Radial runout:≤ 0.1mm
Rated torque:1.8n. M
Impact torque:3N. M
Hollow diameter:≤ 2.5mm
Properties:Orthopedic Surgical Instruments
📦 Product Description

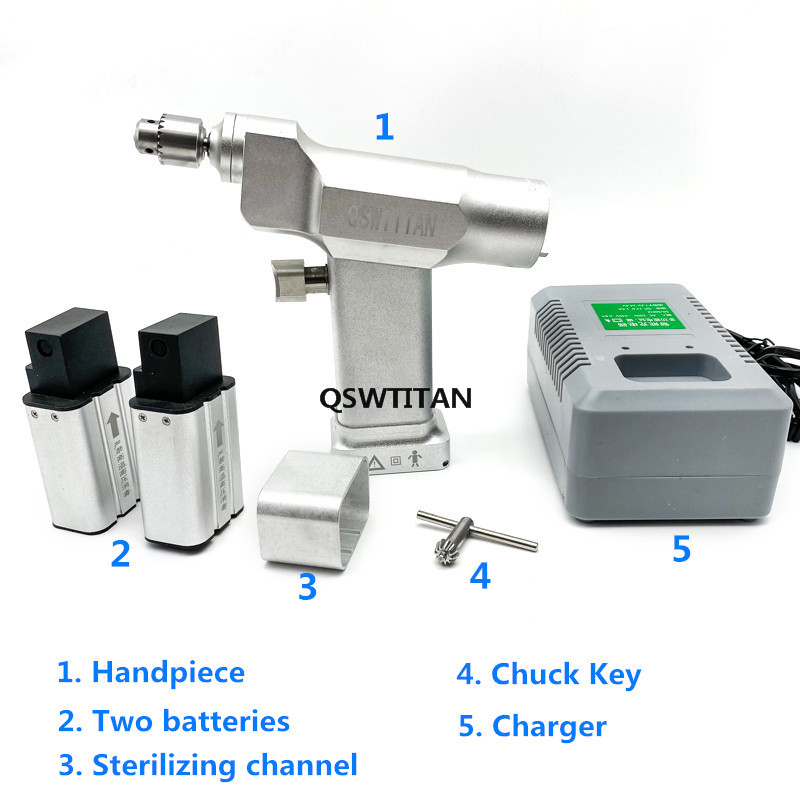

🛠️ Standard Configuration
  • One handpiece
  • One charger
  • Two batteries
  • One sterilizing channel
  • One drill chuck
  • One aluminum alloy box
🏥 Application Scenes
🔍 Detailed Views & Processing
❓ Frequently Asked Questions
1. Can this micro mini cannulated drill be autoclaved?
Yes, the drill handpiece is designed to be autoclavable, ensuring high standards of sterilization for orthopedic surgeries.
2. What are the primary surgical applications for this drill?
This drill is specifically optimized for small bone procedures, including hand, wrist, and feet orthopedic surgeries.
3. What is the maximum drilling diameter and speed?
The maximum drilling diameter is 1.8mm, and the device operates at a no-load speed of 0-1100 rpm.
4. What material is the handpiece made of?
The main material used is a high-grade Aluminum Alloy, which provides a balance of durability and lightweight handling.
5. What comes in the standard configuration set?
The standard set includes one handpiece, one charger, two batteries, one sterilizing channel, one drill chuck, and a protective aluminum alloy carrying box.

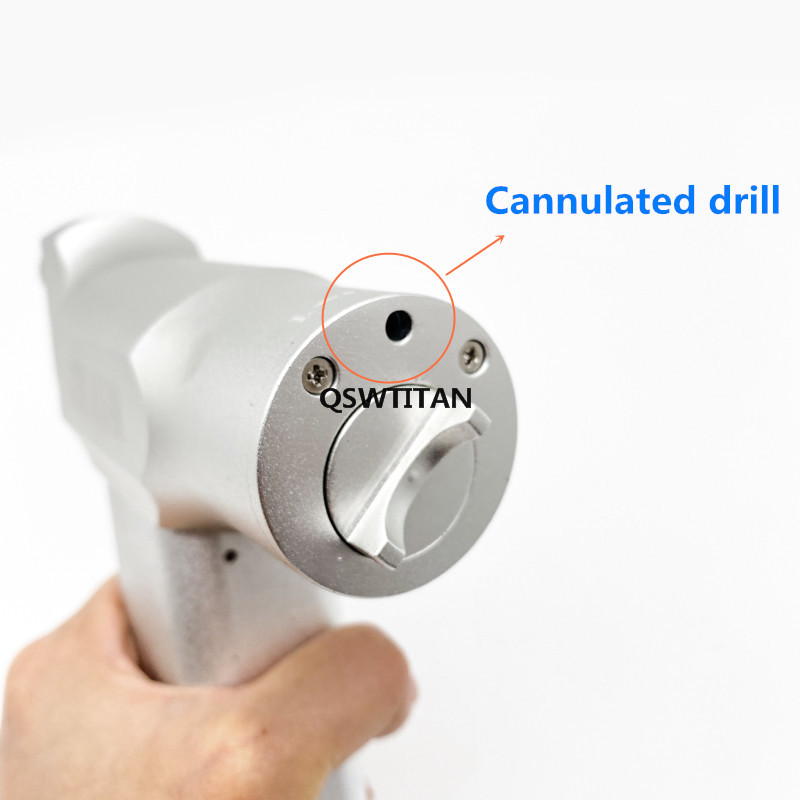

6. Does the drill support hollow instruments?
Yes, it features a hollow diameter of ≤ 2.5mm, allowing it to be used as a cannulated drill for K-wire guided procedures.
