Product Description

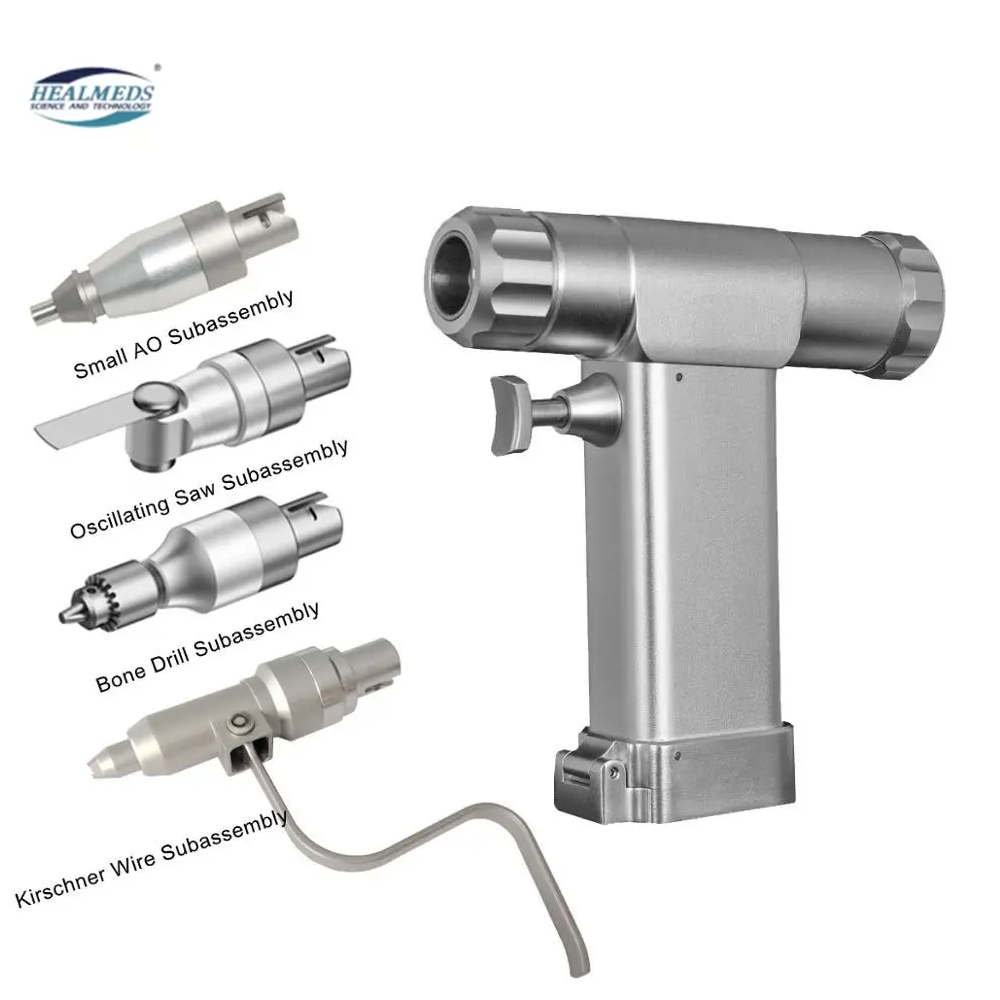

E100 Multifunction Drill - Mini Multi Function Bone Drill Machine

Based on advanced medical technology, the E100 Bone Saw includes a wide range of heavy-duty drills and saws. The system features dual-speed control for multiple cutting options, providing performance stability and efficiency. The reciprocating saw is compact and has excellent ergonomics, allowing it to cut faster and harder.

The rotating handle allows for high-speed drilling and high-torque reaming. It utilizes innovative motor technology to provide less vibration and better handle control. There are single and dual trigger options as well as reaming and drilling attachments. It also comes with a modular sterilization container and long-lasting batteries.

⚙️ Product Features

High Precision: All copper thick wall chuck, very durable with high concentricity.
Stable Power: Micro motor with full copper core wire movement for low noise and high stability.
Ergonomic Design: Frosted texture process on the surface to prevent slippage and ensure comfort during long use.

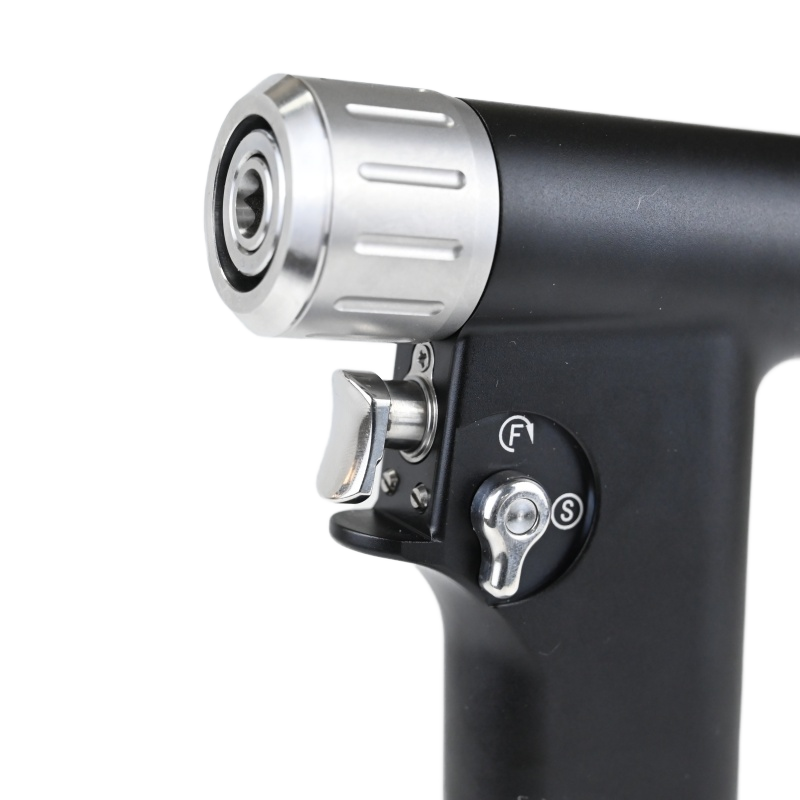

Smooth Operation: Tail power switch design that is beautiful and functional.
Multiple Modes: Dual-speed control for high-speed drilling (0-1200rpm) and high-torque reaming (0-400rpm).

🔍 Technical Details

📊 Specifications

Item	Value
Multi-Function Handpiece	Equipped with brushless DC canulated motor

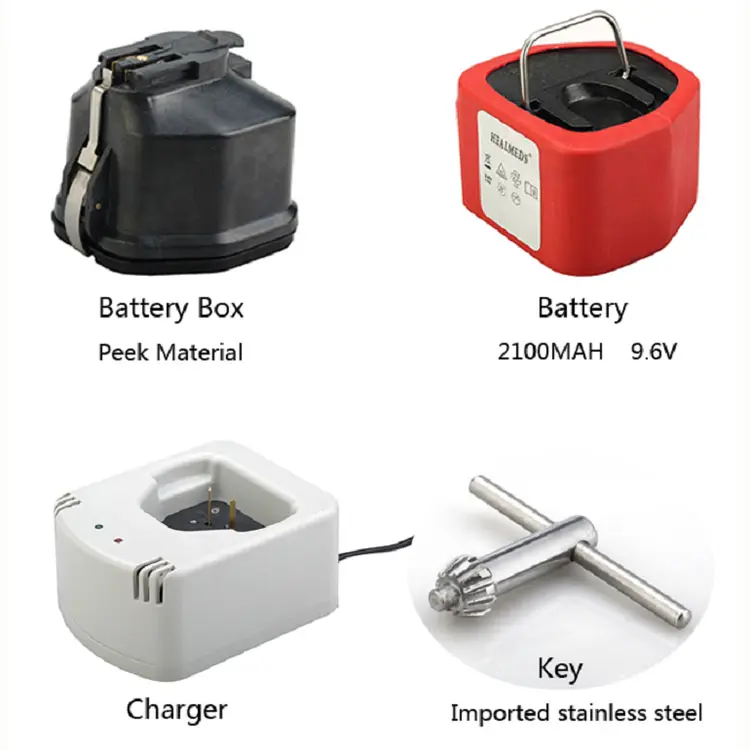

Battery	Ni-MH, High capacity: 2100MAH, Voltage: 9.6V

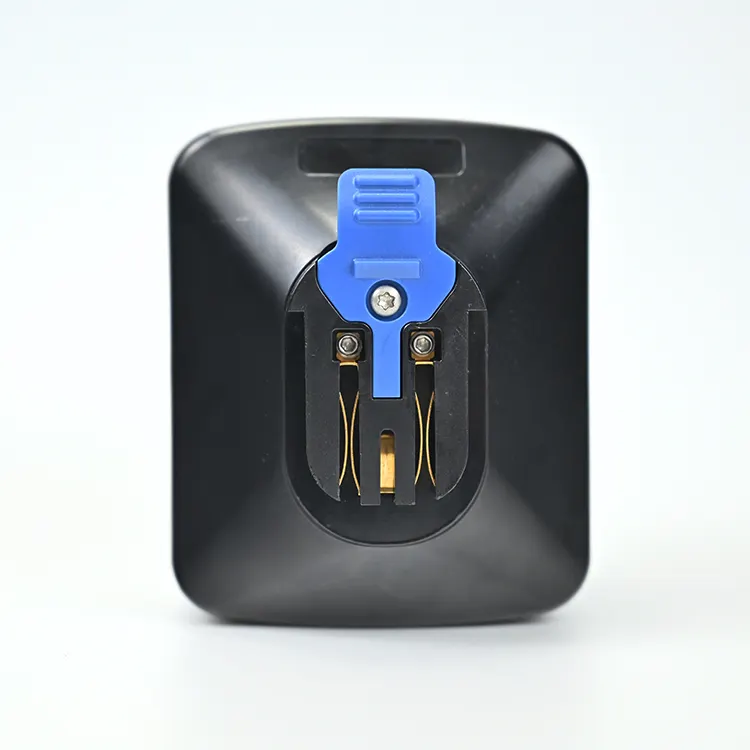

Battery Box	Peek material: sterilized more than 3000 times
Charger	Convenient design to guarantee battery life
Transfer Shield	Imported stainless steel 304
Key Chuck	Speed Range 0-1200rpm, Torque 3.5NM
Reaming Attachment	Speed Range 0-400rpm, Torque 10NM
K-wire Attachment	0.7-1.6mm / 1.6-4.0mm

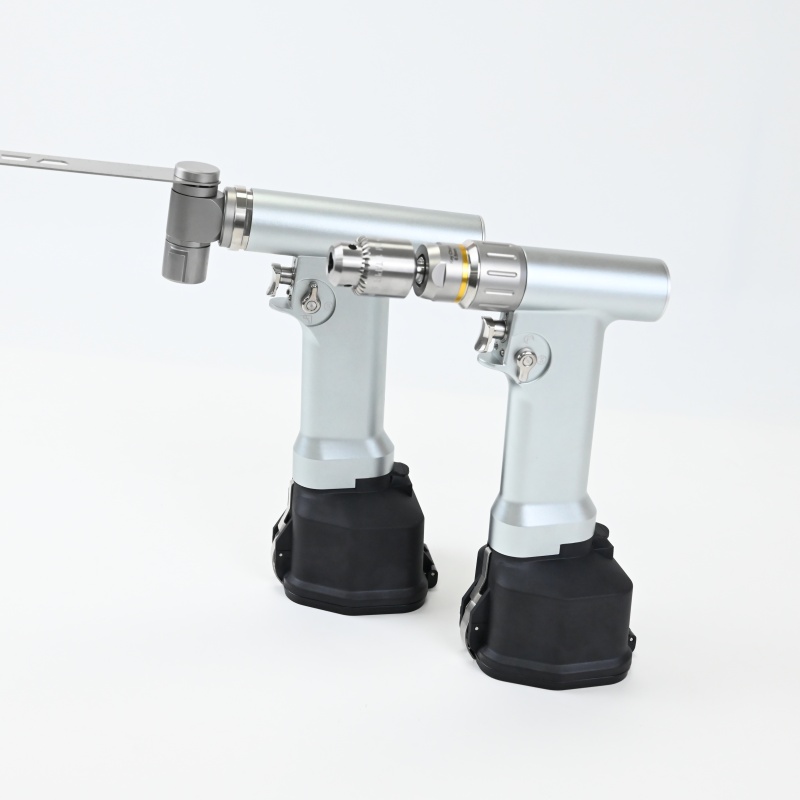

Reciprocating Saw	Frequency: 0-12000cpm
Sterilizing Box	445275215mm, 4.6Kg

📦 Delivery & Packaging

⭐ Our Advantages

❓ Frequently Asked Questions

Q1: What are the primary applications of the E100 Multifunction Drill? A: It is designed for orthopedic surgical procedures, including high-speed drilling, high-torque reaming, and reciprocating sawing for bone cutting.

Q2: How durable is the battery box? A: The battery box is made of high-grade Peek material, which is specifically designed to withstand sterilization processes more than 3000 times.

Q3: Does the device feature variable speed control? A: Yes, it features dual-speed control. The key chuck attachment offers 0-1200rpm, while the reaming attachment provides 0-400rpm for higher torque requirements.

Q4: What type of motor is used in this medical drill? A: The handpiece is equipped with a high-performance brushless DC cannulated motor, ensuring low noise, high power, and minimal vibration.

Q5: Is the sterilization container included in the package? A: Yes, the system comes with a dedicated modular sterilization box (dimensions: 445*275*215mm) for convenient and safe processing.

Q6: What is the benefit of the frosted texture on the body? A: The frosted texture process provides an anti-slip surface, ensuring a comfortable and secure grip for surgeons during extended surgical procedures.
