Conmed Stryker Medical Orthopedic Drilling Electric Orthopedic Drill for Orthopaedic Power Tools

Product Description

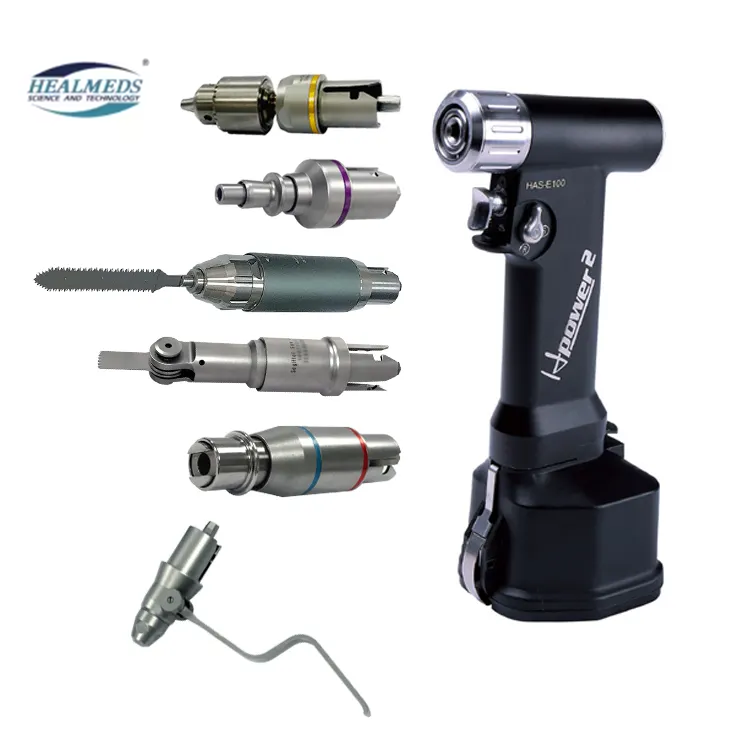

E100 Multifunction Drill - Mini Multi Function Bone Drill Machine
E100 Multifunction Drill
Features & Specifications
Key Chuck Attachment:
Speed Range: 0-1200rpm | Torque: 3.5N-m
Reaming Attachment:
Speed Range: 0-400rpm | Torque: 10N-m

High Durability: All copper thick wall chuck, high concentricity, and stable speed with spindle clamping for easy bit changes.
Powerful Performance: Equipped with a micro motor and full copper core wire movement for low noise, high power, and stability.
Ergonomic Design: Frosted texture body surface effectively prevents slippage, ensuring a comfortable grip for long-term use.

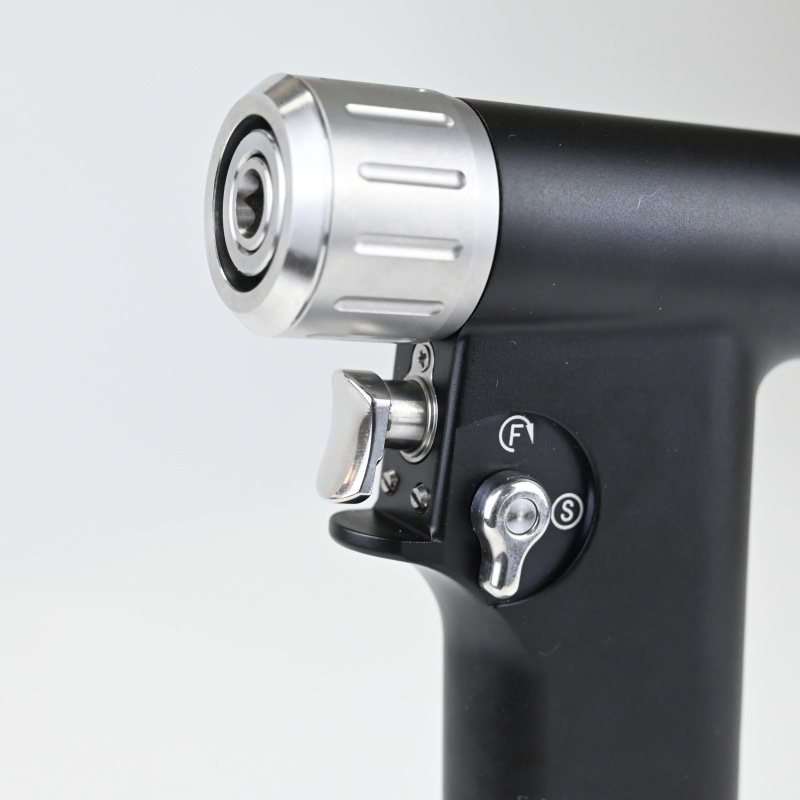

Smart Design: Tail power switch for smooth operation and sleek aesthetics that do not interfere with use.

Details Display

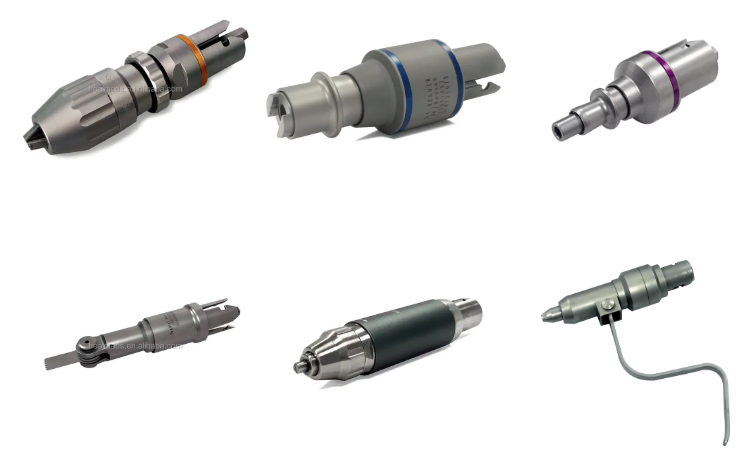

Product Details

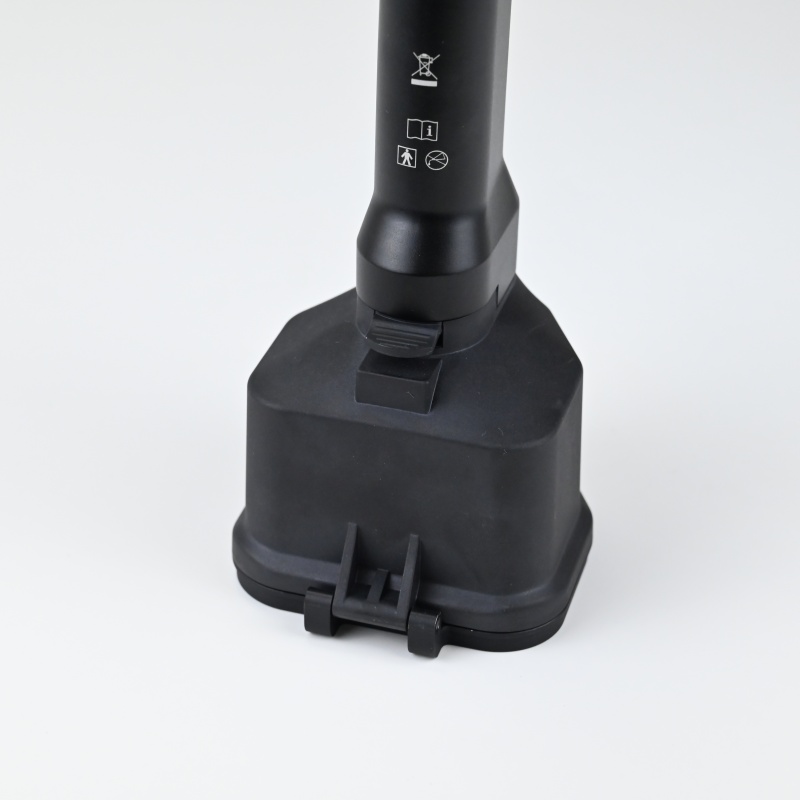

Detail Image 1
Detail Image 2

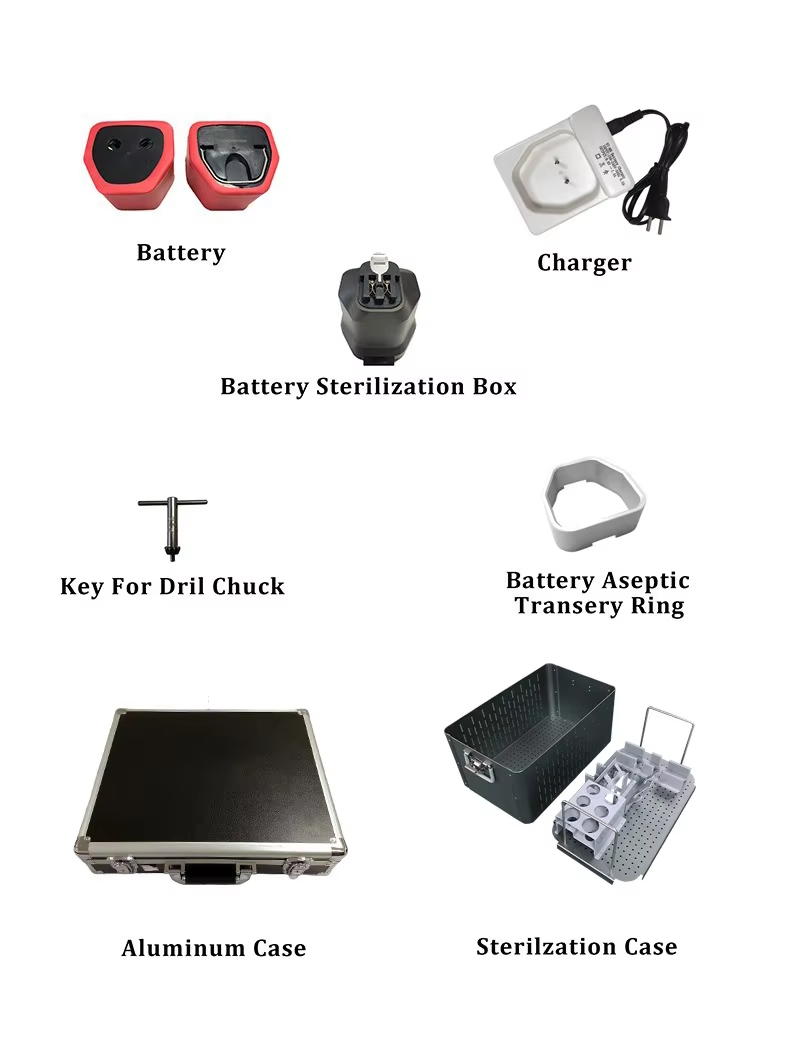

Product Overview
Technical Specifications
Item Value
Multi-Function Handpiece Equipped with brushless DC canulated motor imported from USA

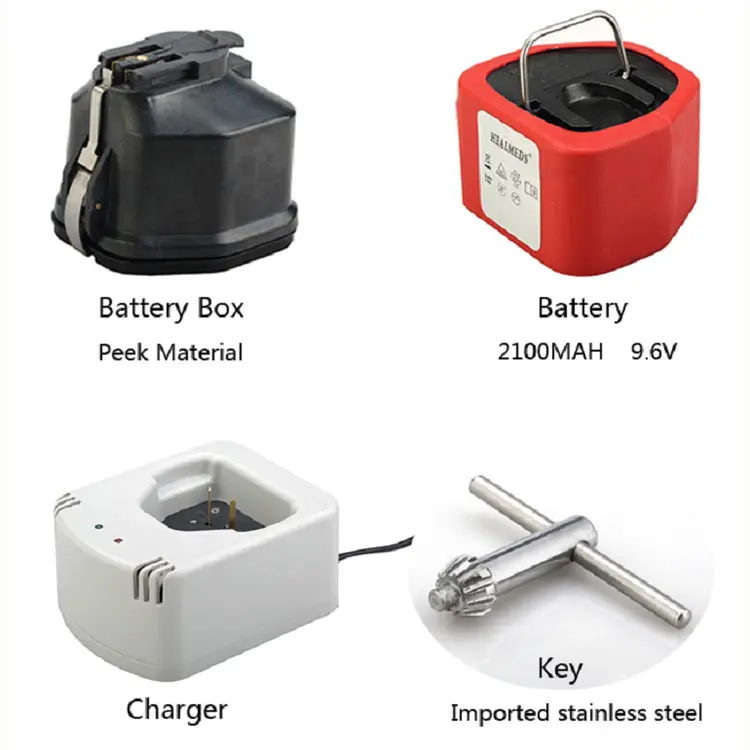

Battery Ni-MH with Longer service-life, High capacity: 2100MAH, Voltage: 9.6V
Battery Box Peek material: sterilized more than 3000 times
Charger Convenient design to guarantee battery life
Transfer Shield Imported stainless steel 304
Key Chuck Speed Range 0-1200rpm, Torque 3.5NM
Reaming Attachment Speed Range 0-400rpm, Torque 10NM
K-wire Attachment 0.7-1.6mm / 1.6-4.0mm

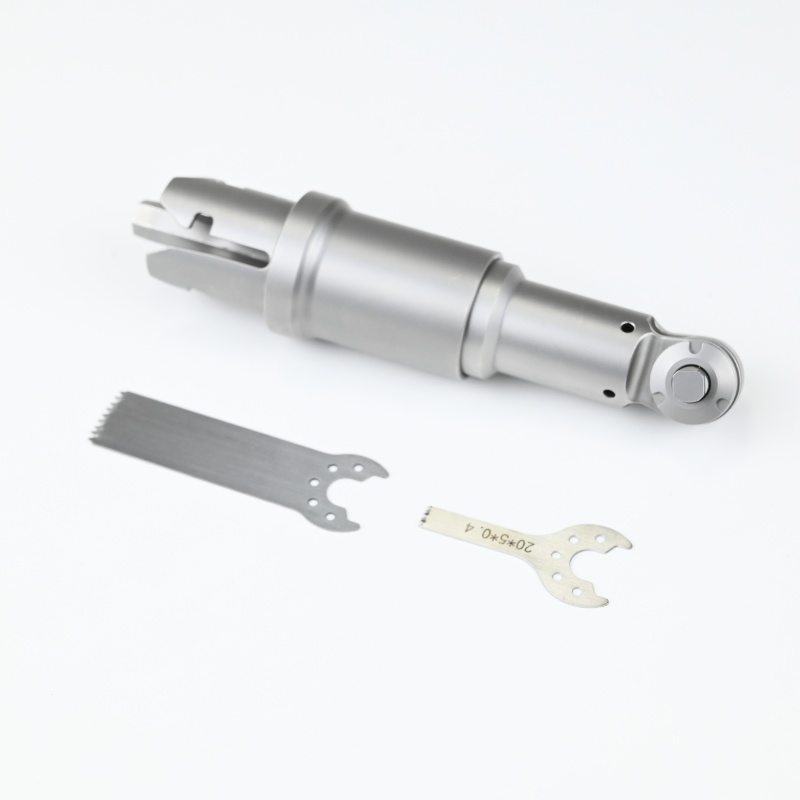

Reciprocating Saw Frequency: 0-12000cpm
Sterilizing Box 445*275*215mm, 4.6Kg
Payment, Delivery & Advantages
Payment and Delivery
Advantage 1
Advantage 2
Advantage 3
Advantage 4
Frequently Asked Questions
1. What motor technology is used in the E100 handpiece?
The handpiece is equipped with a high-performance brushless DC canulated motor imported from the USA for maximum efficiency and reliability.
2. How many times can the battery box be sterilized?
The battery box is made of premium Peek material, which can be sterilized more than 3000 times without compromising its structural integrity.
3. What is the battery capacity and type?
The device uses a Ni-MH battery with a high capacity of 2100MAH and a voltage of 9.6V, designed for long service life.
4. What are the speed and torque specifications for the reaming attachment?
The reaming attachment offers a speed range of 0-400rpm and a maximum torque of 10N-m.
5. Is the drill body designed to prevent slipping during surgery?
Yes, the surface of the body features a frosted texture process that effectively prevents slippage and ensures a comfortable hold during extended use.
6. What is the frequency of the reciprocating saw?
The reciprocating saw attachment operates at a frequency range of 0-12000cpm.
