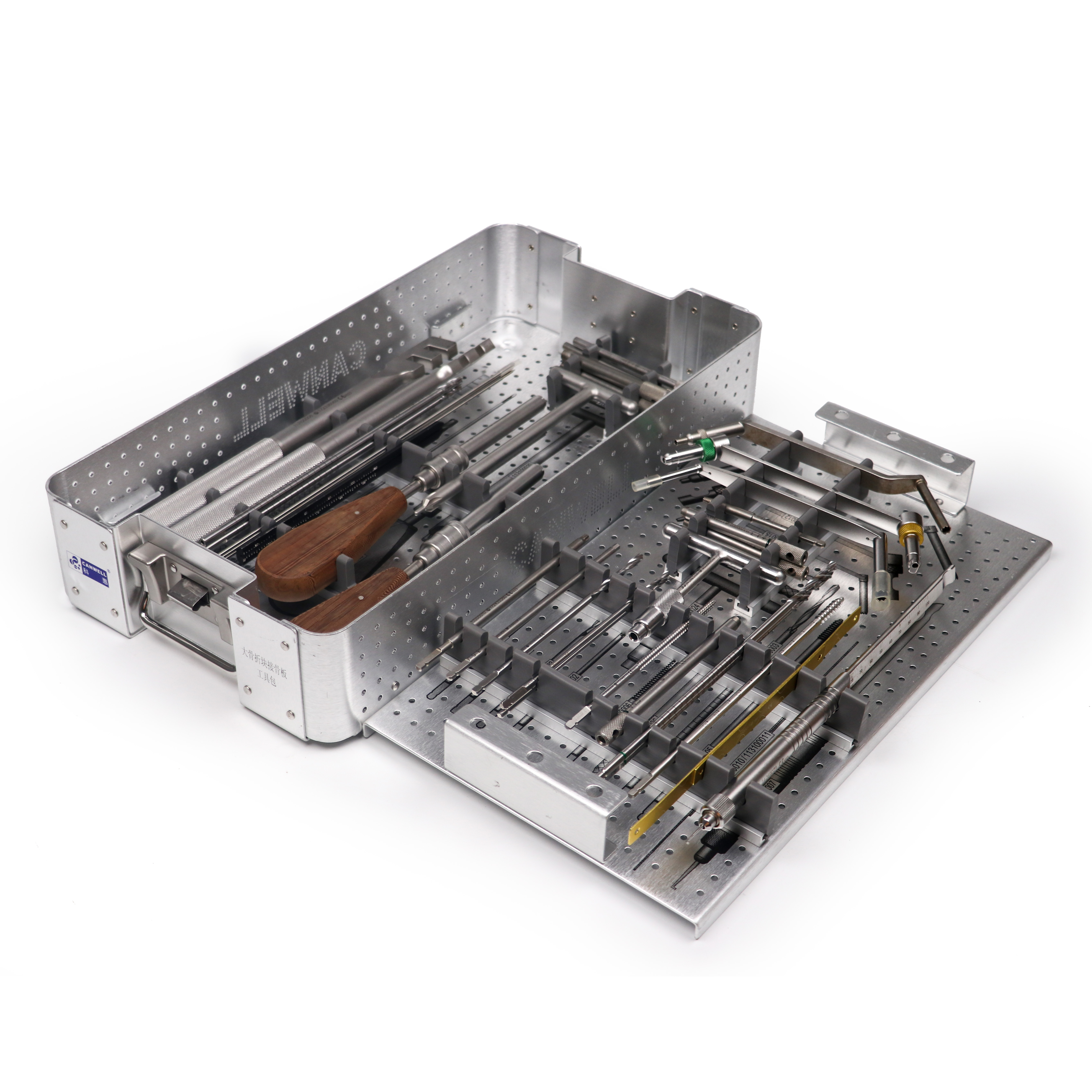

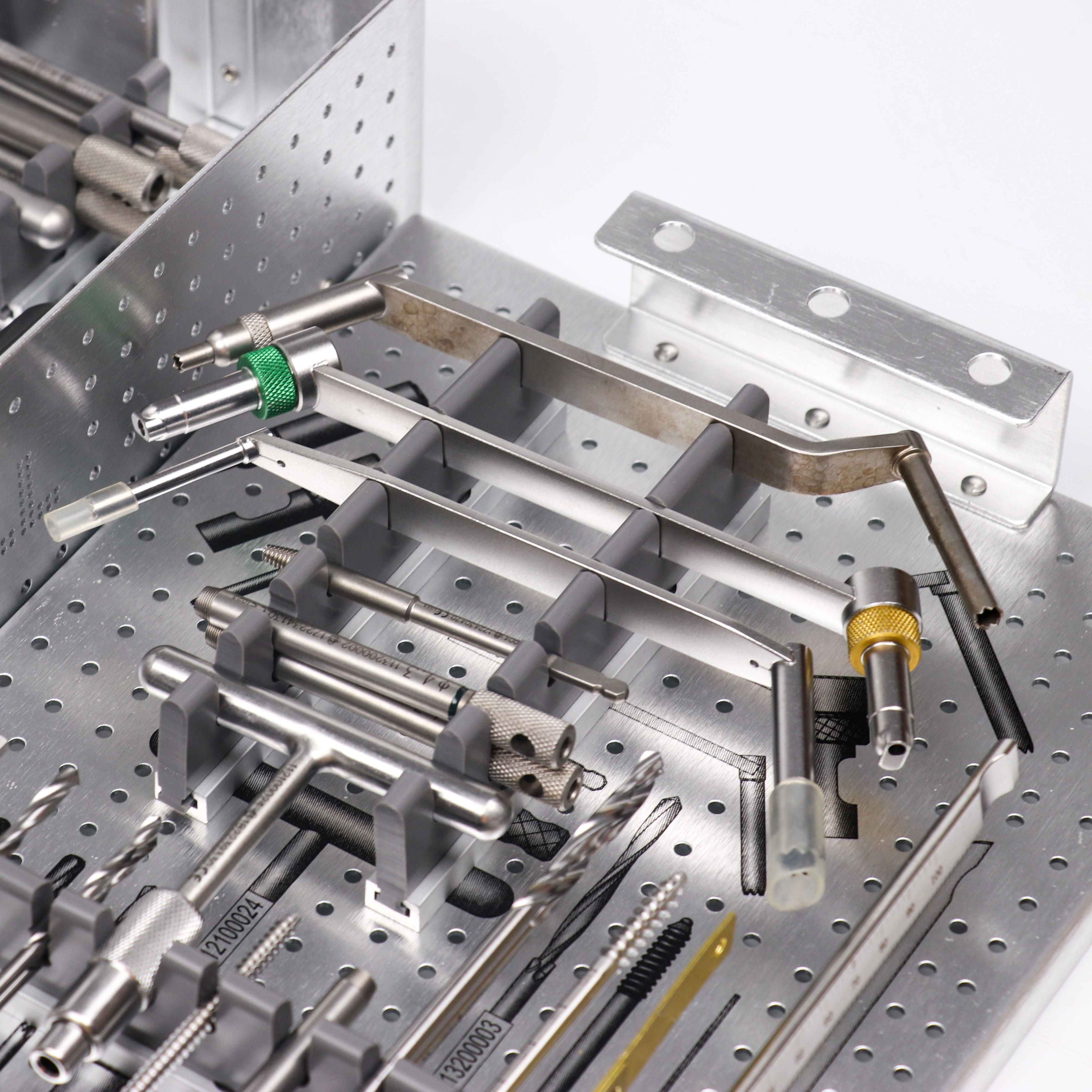

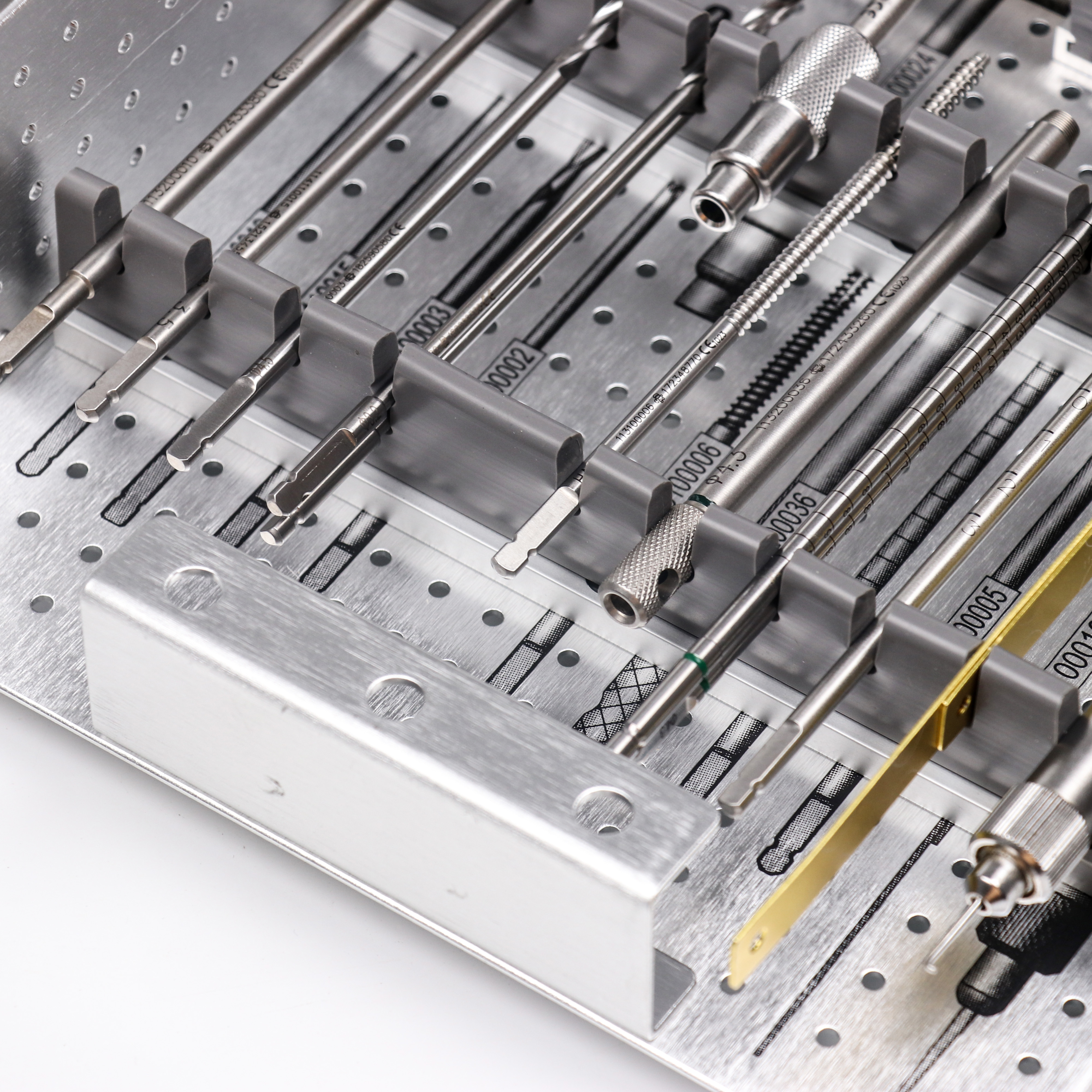

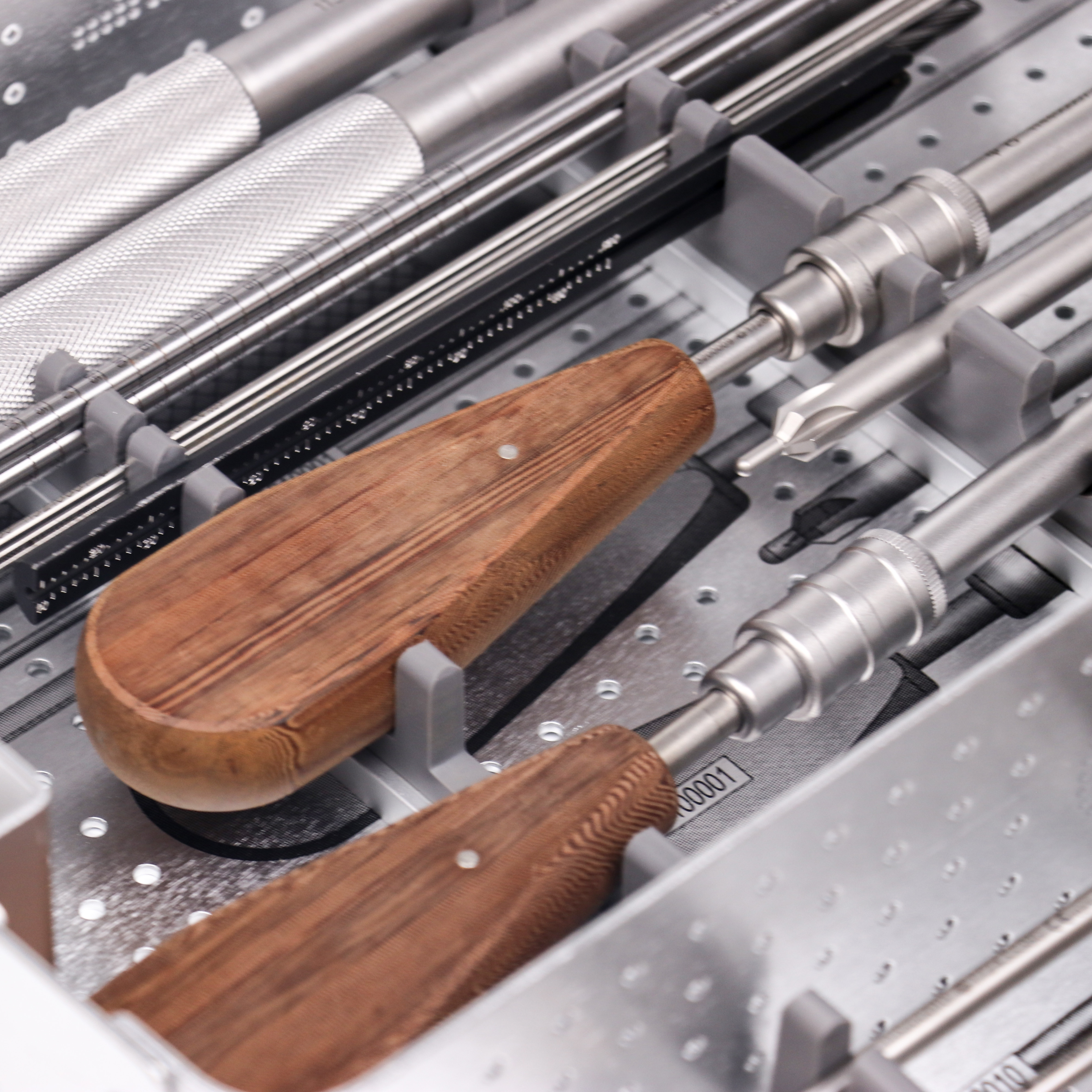

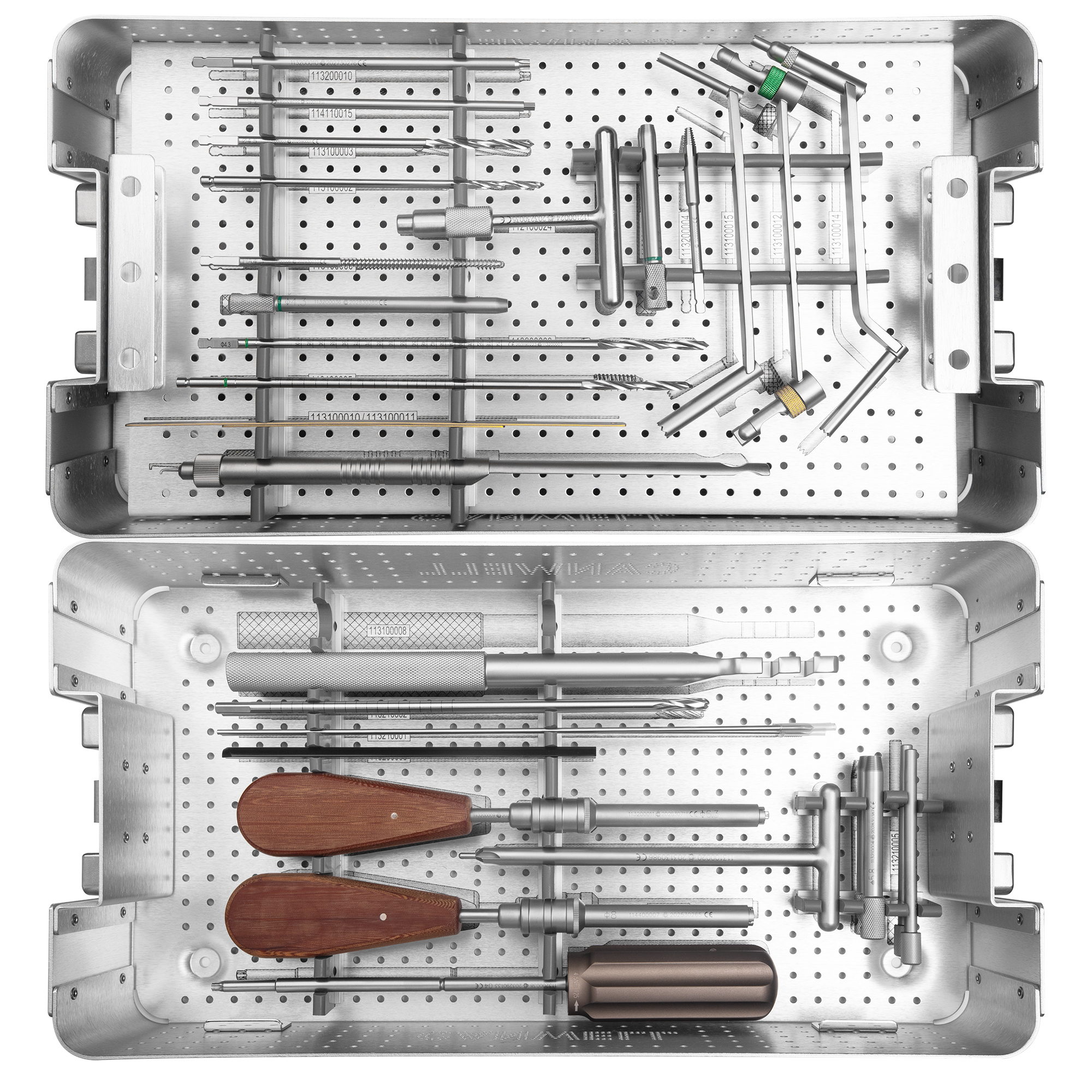

CANWELL Large Fragment Instrument Set Orthopedic 4.5-6.5mm Complete Set Locking Plate Instrument Set CE&ISO Certificated

Product Description

Product Display
The locking screw concept was produced by Dr. Tepic S and Dr. Perren SM for the first time in 1995. With locking compression plate put in use, it became one of the most important developments for plate and screw internal fixation in recent years. Locking screws provide the ability to create a fixed-angle construct while utilizing familiar conventional plating techniques. The fixed-angle construct function like a internal fixators which maintain primary and secondary loss of reduction. This kind construct also provides improved fixation in osteopenic bone or multifragment fractures where traditional screw purchase is compromised. LCP constructs do not rely on plate-to-bone compression to maintain stability. Therefore, the periosteum will be protected and the blood supply to the bone preserved.
Technical Specifications

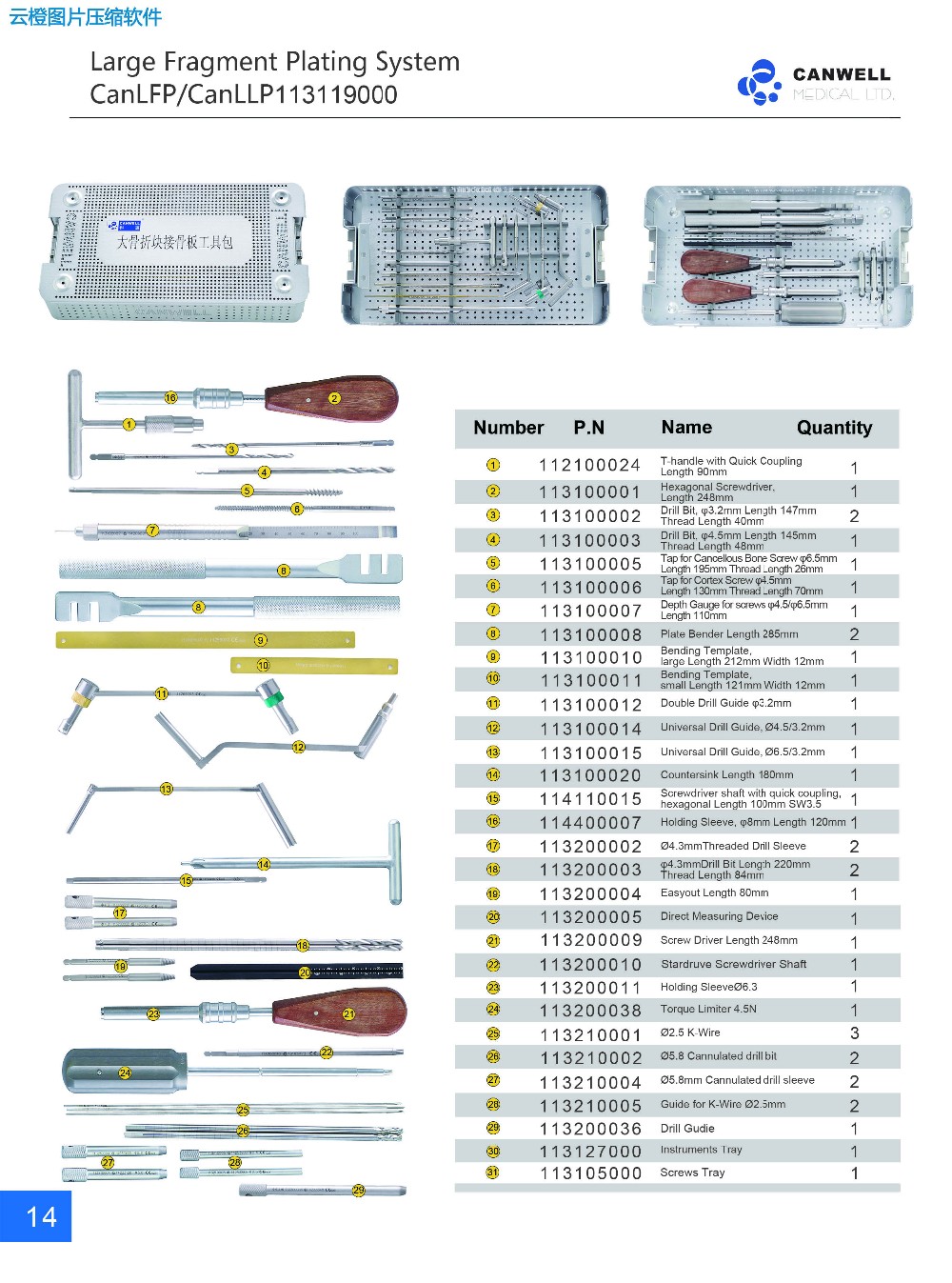

Product Name Surgical Instrument set of Large Fragment Locking Plating System Orthopedic Instruments
Material Ti-6AL-4V material, with MRI compatible
Color Customized
Standard ISO:13485 / ISO:9001 / CE
Screw Size 5.0mm / 6.5mm Locking Screw
Application Bone fracture treatment
Indications Suitable for a large number of fracture types, including: Malunions, nonunions, Osteotomies, and Fractures.
Features & Benefits
Versatile Combi-holes: Allows placement of conventional cortex and cancellous bone screws or threaded locking screws.
Anatomical Fit: Periarticular Plates are pre-contoured to minimize soft tissue impingement and bending requirements.
Advanced Screw Design: Locking screw with stardrive recess and self-tapping flutes for efficient installation.
High Strength: Large core diameter improves bending and shear strength, distributing load effectively over the bone.
Double Lead Thread: Special thread beneath the head engages and locks into the plate's threaded holes.
Quality Certifications
Manufacturing Excellence
Facility
As a leading medical device provider founded in 1994, the company is one of the largest designers and suppliers of orthopedic implants in the region. With over 60,000 square meters of workshop, we serve as a long-term instrument contract manufacturer for top global orthopedic companies. Product lines include traumatology, spinal fixation systems, and surgical instruments, covering femoral nails, titanium plates, screws, and PEEK cages, with a strong presence in Europe, Latin America, the Middle East, and Asia.
Frequently Asked Questions
Q: What are the available shipping modes and charges? A: We normally send shipments via courier or post upon request from clients. Shipping charges depend on the destination and weight.
Q: Do you hold ISO and CE certifications? A: Yes, we are an ISO 9001:2008 and EN ISO 13485:2012 certified company. Many of our products carry the CE mark.
Q: What is the minimum order quantity (MOQ)? A: We typically expect minimum orders of at least US$1000. However, sample orders are available for initial market testing.
Q: Can I purchase products not shown in the catalogue? A: Yes, you can send us pictures or samples of similar products. Customization may take slightly longer for delivery.
Q: Are the listed products currently in stock? A: Generally, we maintain stock for listed products produced on a monthly basis. Please contact our sales team for real-time inventory updates.
Q: What materials are used for the implants? A: Our implants, such as plates and screws, are made from Ti-6AL-4V titanium material, which is MRI compatible and highly biocompatible.
