Bone Drill for Trauma Electric Drill Surgery Orthopedic Surgical Instrument with Cloth Case
Bone Drill for Trauma Electric Drill Surgery Orthopedic Surgical Instrument with Cloth Case
Bone Drill for Trauma Electric Drill Surgery Orthopedic Surgical Instrument with Cloth Case
Bone Drill for Trauma Electric Drill Surgery Orthopedic Surgical Instrument with Cloth Case
Bone Drill for Trauma Electric Drill Surgery Orthopedic Surgical Instrument with Cloth Case
1 / 5
Bone Drill for Trauma Electric Drill Surgery Orthopedic Surgical Instrument with Cloth Case
Bone Drill for Trauma Electric Drill Surgery Orthopedic Surgical Instrument with Cloth Case
Bone Drill for Trauma Electric Drill Surgery Orthopedic Surgical Instrument with Cloth Case
Bone Drill for Trauma Electric Drill Surgery Orthopedic Surgical Instrument with Cloth Case
Bone Drill for Trauma Electric Drill Surgery Orthopedic Surgical Instrument with Cloth Case

Bone Drill for Trauma Electric Drill Surgery Orthopedic Surgical Instrument with Cloth Case

Send Inquiry

Product Description

⚙️ Technical Specifications

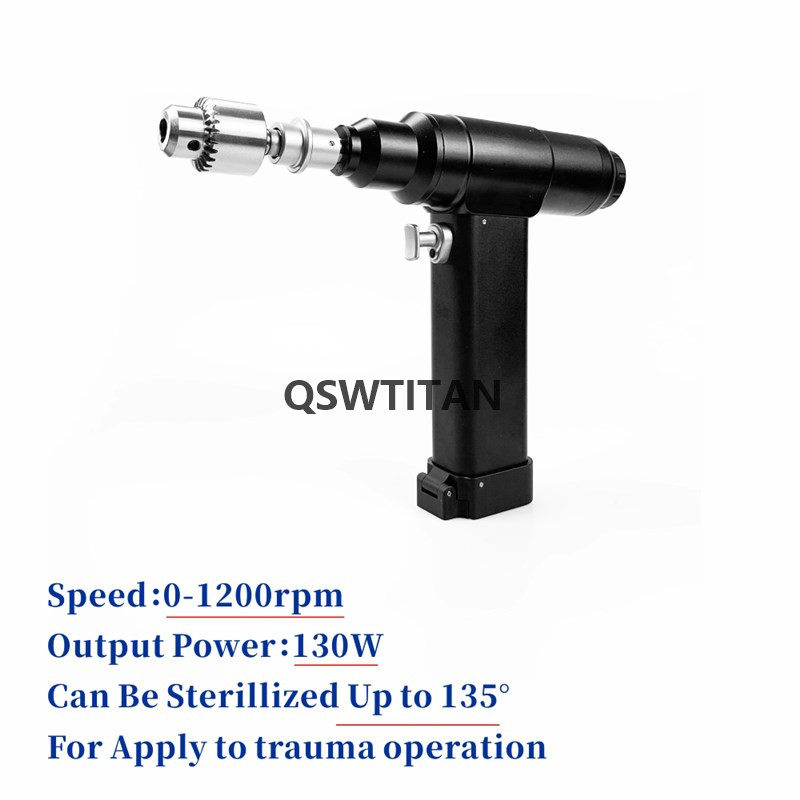

Product Orthopedic surgical power drill electric bone drill
Material High quality stainless steel
MOQ 1 Set
Application Orthopedic Trauma Surgery
Model Number ND1001-Cloth
Output power of main engine 130W
Temperature rise ≤ 25 ℃
Charger input voltage AC 110-220V, 50-60Hz
Charging battery voltage 14.4V
Battery capacity 1800 Ma
Battery property Environmental friendly Ni MH battery
Charging time About 2 hours
No load speed 0-1200 rpm
No load noise ≤ 65dB (a)
Radial run out ≤ 0.1mm
Rated torque 3.5N. M
Impact torque 8N. M
Clamping range 0.8-8mm
Sterilization Autoclavable up to 135ºC
📝 Product Description
Core Advantage:

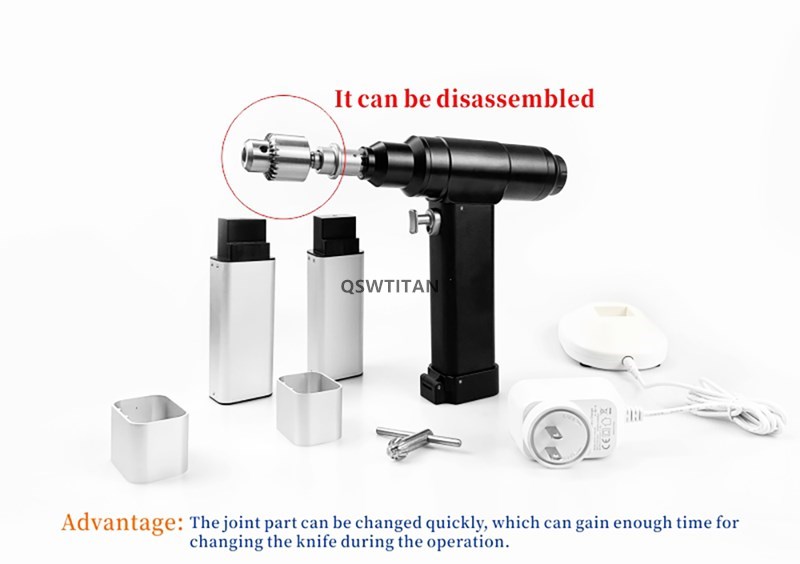

The joint part can be changed quickly, which can gain enough time for changing the knife during the operation.

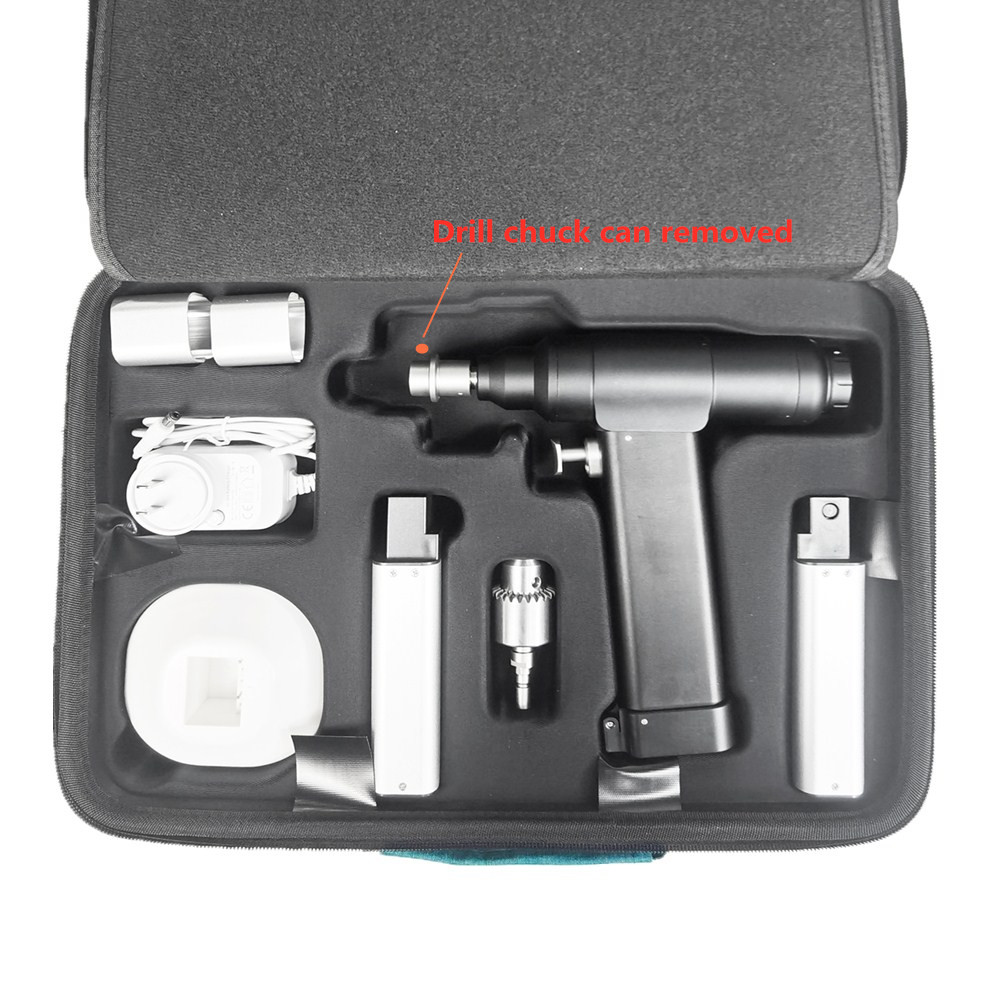

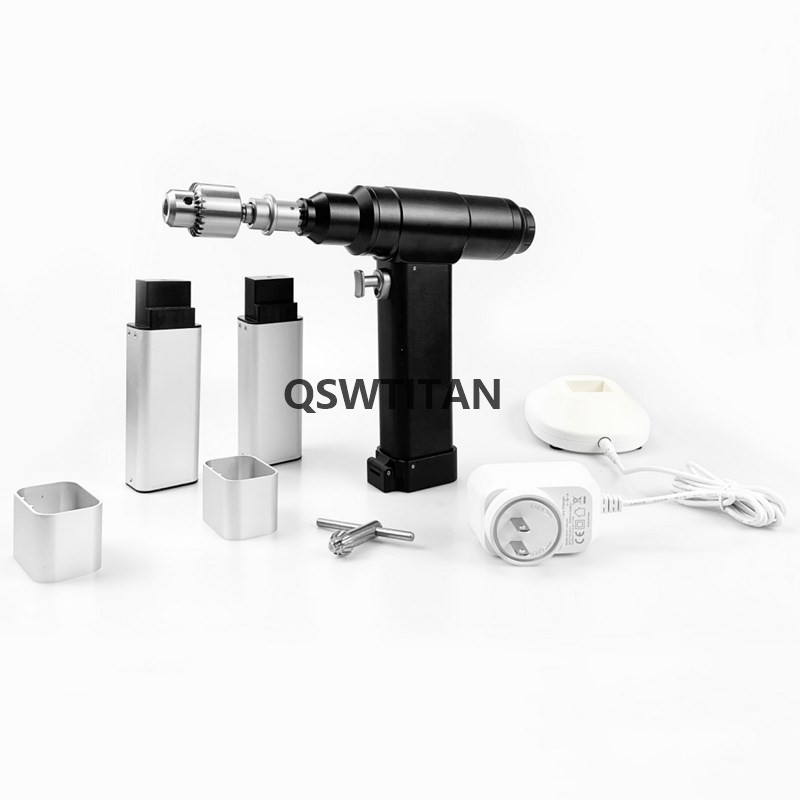

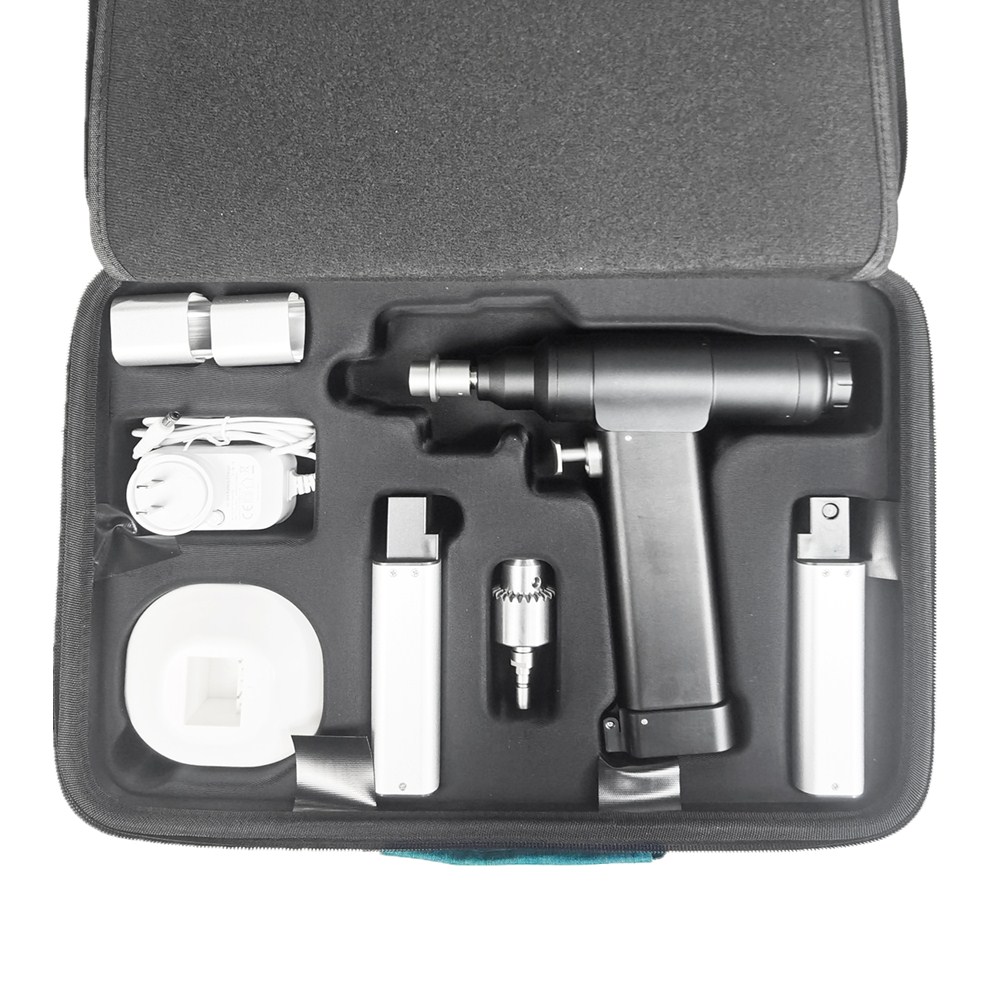

📦 Standard Configuration (One Set)
1 Handpiece
1 Sterilizing channel
1 Drill chuck
2 Batteries
1 Charger

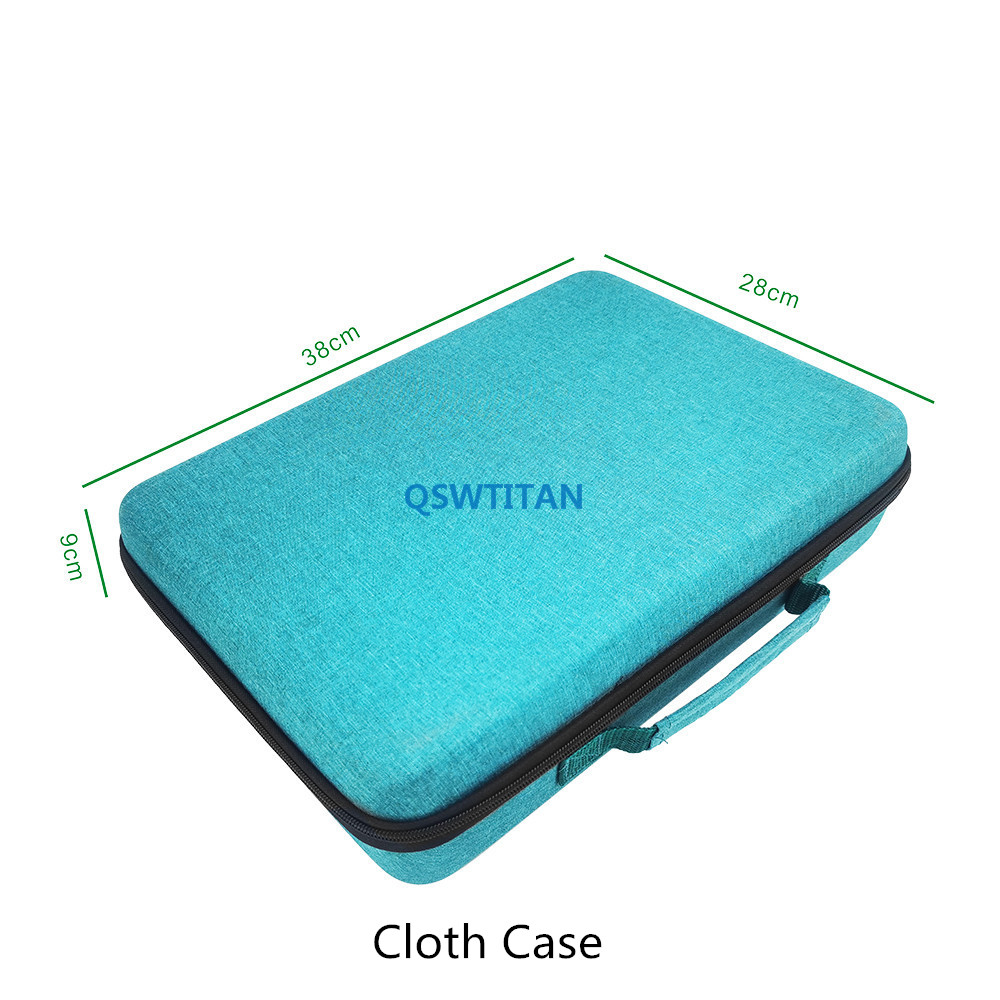

1 Cloth box
🏥 Clinical Application & Display
❓ Frequently Asked Questions
What is the primary use of this electric bone drill?
This power drill is specifically designed for orthopedic trauma surgery, providing high precision and reliability for bone procedures.
Is the handpiece autoclavable?
Yes, the device is designed to be sterilized in an autoclave up to 135ºC to ensure maximum hygiene for surgical environments.
How long does it take to charge the battery?
The environmental friendly Ni MH battery takes approximately 2 hours to reach full charge, and each set comes with two batteries for continuous operation.
What is the speed range of the drill?
The drill offers a variable no-load speed ranging from 0 to 1200 rpm, allowing surgeons to control the intensity based on the procedure.
Does the drill operate loudly during surgery?
No, the drill is engineered for low noise performance, with a no-load noise level of ≤ 65dB (a), ensuring a better surgical environment.
What is the clamping range for drill bits?
The high-quality drill chuck supports a clamping range of 0.8mm to 8mm, accommodating various surgical drill bit sizes.
